Reliability: The design of cable components is durable, maintaining performance even in harsh environments and providing stable, uninterrupted connections.
Customization: One of the prominent features of cable components is their strong adaptability. Customized cable components can meet specific requirements, allowing integration of various connectors, lengths, and shielding options. Cable components can be customized to meet specific requirements for integration
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PE |
| Number of Conductors | Single |

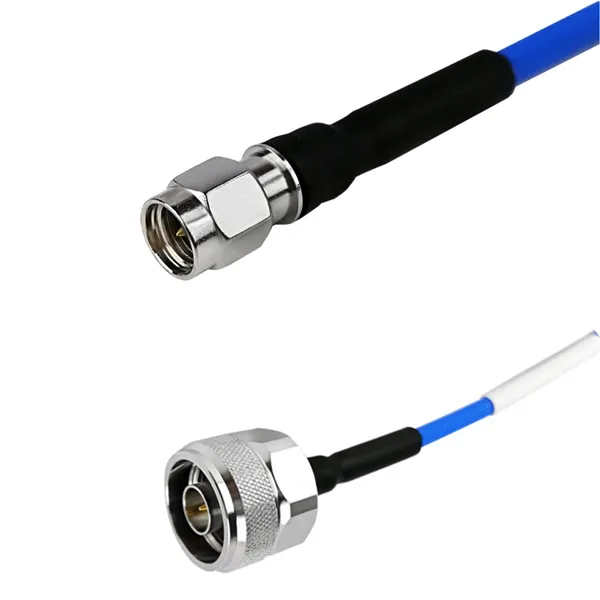

| Model Number | N male to SMA Male for rg402 Cable Assembly |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Length | 50Ω, 75Ω |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Impedance | 50Ω |
| Frequency | DC-18GHz |
| VSWR | 1.15+0.02f |
| Insulation Resistance | 5000MΩ |
| Durability | 500 cycles |
| Describe | 50ohm calibration |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstanding Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Contact resistance | Center Contact ≤ 1mΩ Outer Contact ≤ 1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 14 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 20 |
| > 10000 | To be negotiated |
| Price | |
| 1 - 999 pieces | $1.55 |
| 1000 - 1999 pieces | $1.52 |
| >= 2000 pieces | $1.25 |
1. We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
2. Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
