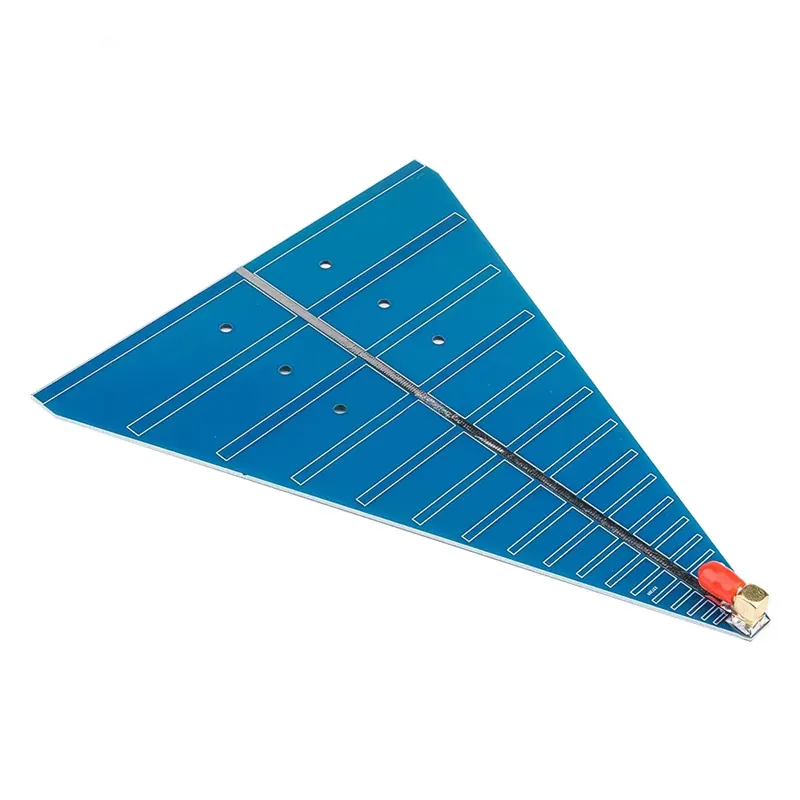

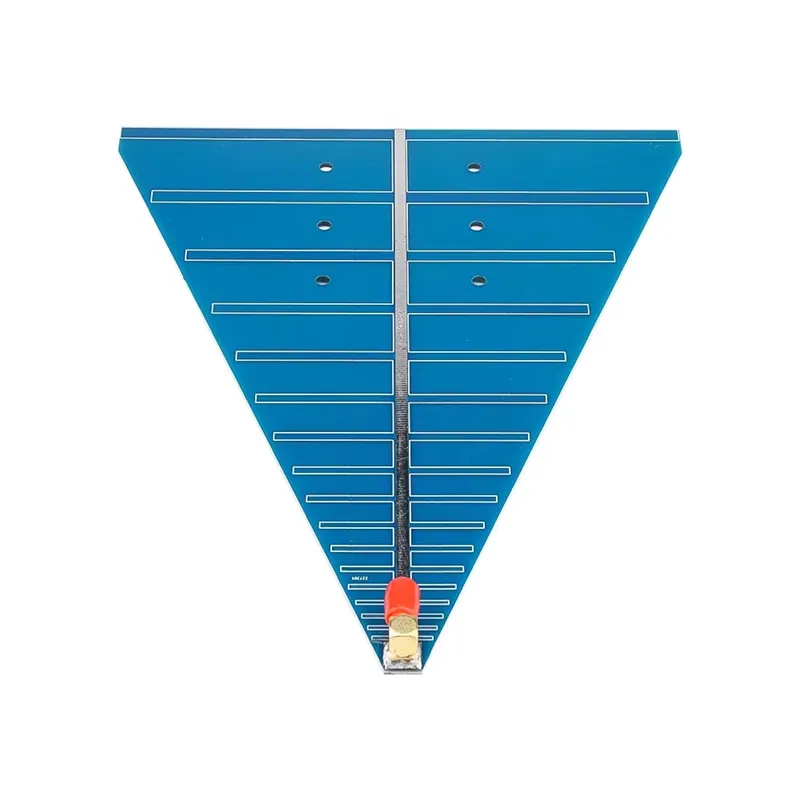

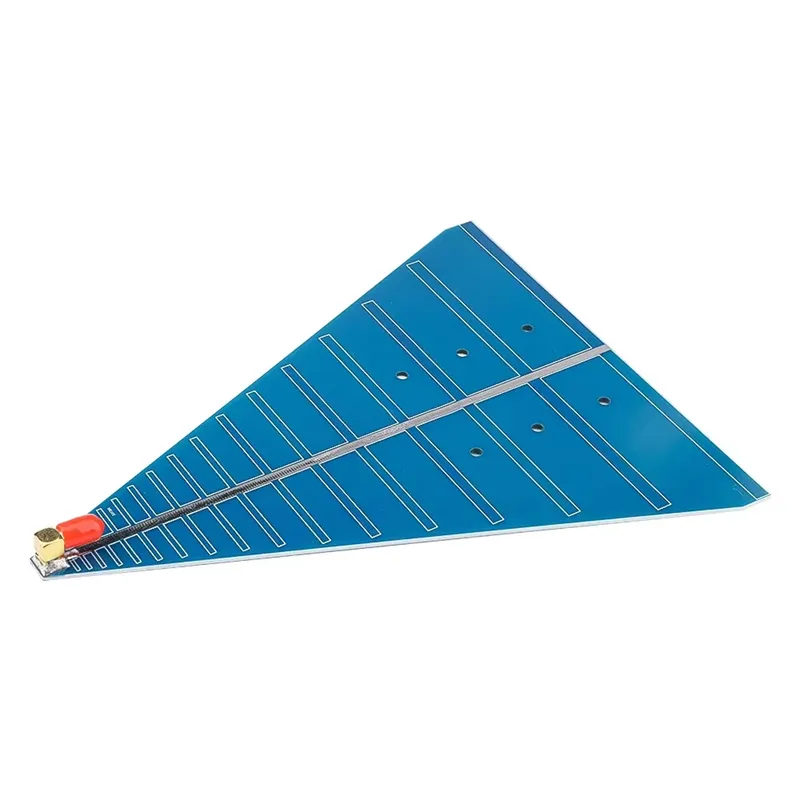

This high-performance ultra-wideband directional antenna delivers seamless coverage from 800 MHz to 6 GHz in a single compact form factor, eliminating the need for multiple band-specific antennas across evolving wireless standards. Engineered for next-generation connectivity, it supports WiFi 6E/7 (6 GHz), UWB positioning, 5G NR sub-6 GHz, LTE, and legacy IoT protocols—all with consistent gain and radiation characteristics. The directional pattern focuses energy toward target zones, extending range by 2–3× versus omnidirectional alternatives while suppressing interference in dense RF environments.
Designed as a versatile PCB-mount or panel-integrated solution, this antenna board serves as the RF front-end for access points, gateways, CPEs, industrial sensors, and UWB anchors requiring broadband performance without space-consuming multi-antenna arrays. Its planar architecture enables flush mounting inside enclosures or direct integration onto system PCBs, preserving sleek industrial aesthetics while maintaining high-quality RF integrity. Dual-polarized elements maximize MIMO throughput and polarization diversity critical for modern OFDM and spatial multiplexing schemes.
Manufactured to high-quality standards with 100% electrical validation across the entire 800 MHz–6 GHz span, every unit guarantees stable VSWR, gain flatness, and group delay. Pre-certified with CE, FCC, and ROHS, it ships ready for global deployment in commercial, industrial, and consumer applications. Sourced directly from our ISO-certified facility, this antenna offers unmatched bandwidth-to-size ratio for OEMs and system integrators future-proofing their platforms.
| Parameter | Value | Unit | Note |
| Frequency Range | 800 – 6000 | MHz | Continuous coverage; no band gaps |
| Gain | 5 – 8 | dBi | Frequency-dependent; see gain curve |
| Polarization | Dual Linear / ±45° Slant | — | Configurable per application |
| VSWR | ≤ 2.0:1 | — | Across entire 800 MHz – 6 GHz band |
| Port-to-Port Isolation | ≥ 20 | dB | For dual-port MIMO configurations |
| Horizontal Beamwidth | 60 – 90 | ° | Frequency-dependent narrowing |
| Vertical Beamwidth | 40 – 70 | ° | Controlled elevation coverage |
| Group Delay Variation | ≤ 1.5 | ns | Critical for UWB/time-of-flight accuracy |
| Impedance | 50 | Ω | Standard RF interface |
| Max Input Power | 50 | W | CW rating; peak power higher |
| Connector | SMA Female / IPEX MHF4 | — | Board-mount or cable option |
| Dimensions | 120 × 80 × 12 | mm | Ultra-compact planar form factor |
| Weight | 85 | g | Lightweight for embedded integration |
| Operating Temp | -40 to +85 | °C | Industrial/military grade |
| Mounting | PCB Solder / Adhesive / Screw | — | Multiple integration options |
| Certifications | CE, FCC, ROHS | — | Pre-certified; docs included |
● True 800 MHz – 6 GHz Continuous Coverage — Single antenna replaces 4–5 band-specific units, supporting LTE/5G/WiFi 6E/UWB/IoT simultaneously with ≤2.0:1 VSWR across entire band—reducing BOM cost, assembly time, and enclosure cutouts.
● UWB-Optimized Time-Domain Performance — ≤1.5 ns group delay variation ensures precise time-of-flight measurements for centimeter-level positioning, outperforming generic wideband antennas that distort UWB pulses and degrade ranging accuracy.
● Directional Gain with Stable Pattern — 5–8 dBi frequency-scaled gain maintains focused coverage from sub-GHz IoT to 6 GHz WiFi, avoiding the pattern collapse common in log-periodic or spiral designs at band edges.
● Embedded Integration Ready — Planar PCB-compatible form factor with SMA/IPEX options allows direct soldering to host boards or adhesive mounting inside plastic/metal enclosures—no external radome or bracket needed.
● MIMO & Diversity Capable — Dual-port configuration with ≥20 dB isolation enables 2x2 MIMO for WiFi/5G or simultaneous UWB+BLE operation without cross-talk, maximizing spectral efficiency in constrained spaces.
● High-Quality Broadband Consistency — 100% factory-tested for VSWR, gain flatness, and group delay across full band; <0.5% field failure rate ensures predictable performance in mission-critical positioning and communication systems.
● WiFi 6E/7 Enterprise Access Points
● UWB Real-Time Location Systems (RTLS)
● 5G NR Indoor Small Cells
● Industrial IoT Gateways
● Smart Building Infrastructure
● Automotive V2X Communication
● Retail Analytics & Asset Tracking
● Healthcare Patient Monitoring
● Warehouse Automation Robots
● Multi-Radio Edge Computing Nodes
● <0.5% Defect Rate at Scale — ISO 9001-certified manufacturing ensures every antenna meets high-quality specs across the entire 800 MHz–6 GHz spectrum, preventing costly rework in integrated devices.
● Global Compliance Included — CE/FCC/ROHS documentation ships standard, saving 4–8 weeks of independent testing for multinational product launches.
● Trusted in 80+ Countries — Supplied to WiFi chipset vendors, UWB silicon makers, and industrial OEMs with 99% positive Alibaba rating.
● Fortune 500 Qualified Supplier — Full traceability, PPAP-capable processes, and JIT delivery meet enterprise/consumer electronics procurement standards.
● 24/7 RF Integration Support — Free PCB layout review, enclosure detuning analysis, and matching network optimization to accelerate time-to-market and maximize RF performance.
📩 Discuss volume pricing or co-design services at minna_liao@bjdz.top.
Tailor this platform to your exact system requirements:
● Frequency Optimization — Tune for specific bands (e.g., 3.5–6 GHz WiFi 6E, 6.5–8 GHz UWB, or 700–960 MHz LTE)
● Polarization Configs — Linear, circular, or dual-slant ±45° based on MIMO/UWB needs
● Connector Options — SMA, RP-SMA, IPEX MHF1/MHF4, U.FL, or direct PCB pads
● Form Factor Scaling — Miniaturized versions for wearables or enlarged panels for outdoor APs
● Enclosure Integration — Pre-tuned for specific plastic/metal housings to avoid post-assembly detuning
● Private Labeling — Logo printing, asset tags, or retail packaging
Samples ready in 5–7 business days; production completes in 15–20 days. MOQ: 200 units for custom configs; standard 800 MHz–6 GHz boards ship within 48 hours from stock.
📩 Send mechanical constraints or RF targets to minna_liao@bjdz.top for a tailored integration plan within 24 hours.
Q: How does gain vary across the 800 MHz – 6 GHz band?
A: Gain scales naturally with frequency due to aperture size: ~5 dBi at 800 MHz, rising to ~8 dBi at 6 GHz. The radiation pattern remains stable without nulls or lobing distortions typical of log-periodic designs. Full gain vs. frequency curves are provided in the datasheet.
Q: Can this antenna handle simultaneous WiFi 6E and UWB operation?
A: Yes. With ≥20 dB port isolation and linear phase response, one port can serve WiFi 6E (5.9–7.1 GHz) while the other handles UWB (6.5–8 GHz) without mutual interference. Verify band overlap in your region—we’ll recommend optimal port assignment.
Q: Is this suitable for outdoor use without additional housing?
A: The bare PCB version is for indoor/embedded use only. For outdoor deployments, we offer IP67-sealed panel variants with UV-stabilized radomes using the same radiating element. Specify environmental requirements when ordering.
Q: How do I integrate this into a metal enclosure?
A: Metal enclosures require a non-conductive window or slot aligned with the radiator. We provide free EM simulation to optimize aperture size/placement and prevent detuning. Never mount directly against metal without spacing ≥λ/10 at lowest frequency.
Q: What’s the difference between this and a log-periodic antenna?
A: Log-periodics sacrifice gain flatness and group delay for bandwidth. This design uses optimized fractal/slot geometry to maintain stable gain, low VSWR, and minimal pulse distortion—critical for UWB and OFDM systems where signal fidelity matters more than raw bandwidth.
Q: Do you provide S-parameters and simulation models?
A: Yes. Full Touchstone (.s2p) files, CST/HFSS models, and measured far-field patterns are available under NDA for customers doing in-house integration. Accelerates validation and reduces prototyping cycles.
📩 For samples, models, or integration support: minna_liao@bjdz.top ｜ +86 186 2128 3578
