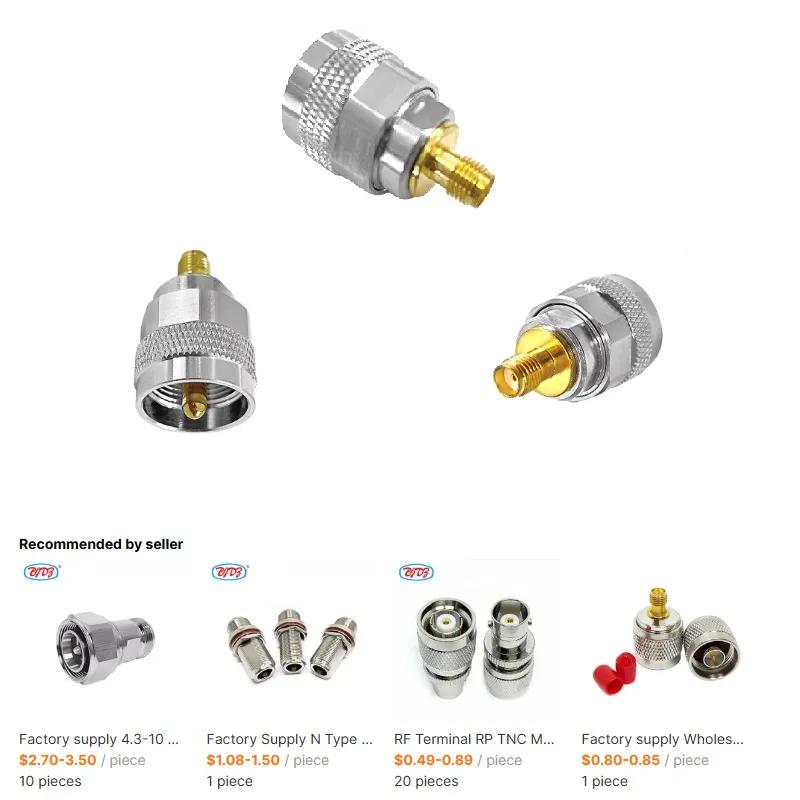

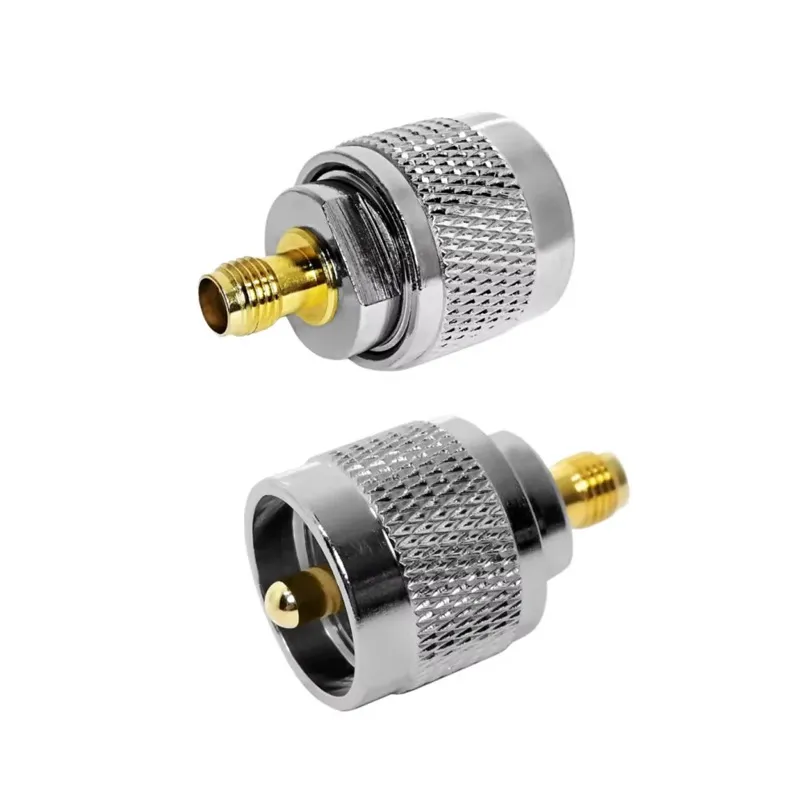

Factory Directly UHF-SMA-JK/04 Adaptor, Frequency 0-11GHz,SMA coaxial adapter is a connector used for transmitting data and current, and is a component for converting connector models. It covers different types of choices and can be used in various electronic devices. SMA adapters mainly serve as bridges, such as male to female, male to male, female to male, etc. Common SMA adapters include threaded connections, bayonet connections, and plug-in connections.We specialize in the research and development, production, and sales of microwave devices such as RF connectors, RF adapters, RF jumper cables, lightning arresters, directional couplers, power dividers, synthesizers, and duplexers.
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) | |
| Impedance | 50Ω | |
| Vibration | 98m/S2 (10~2000Hz), 10g | |
| Frequency Range | DC-12.4GHz(semi-rigid cable DC-18 GHz) | |
| Insertion Loss | ≤ 0.15dB/6GHz | |
| Withstanding Voltage | 1000V r.m.s at sea level | |
| Working Voltage | 335Vr.m.s at sea level | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Durability | ≥ 500(cycles) | |
| Contact resistance | Outer Contact ≤ 2.5mΩ | |
| Voltage Standing Wave Ratio | Straight | flex cable ≤ 1.10+0.02f Semi-rigid cable ≤ 1.07+0.018f |
| Right angle | flex cable ≤ 1.20+0.03f Semi-rigid cable ≤ 1.17+0.02f | |
We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
