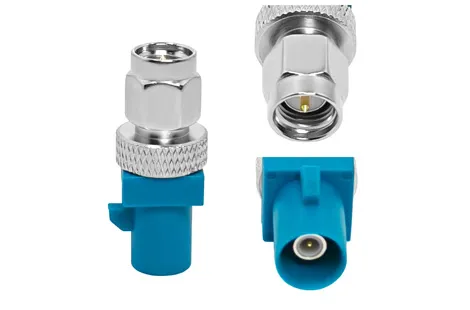

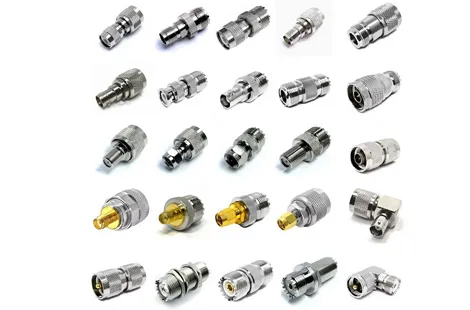

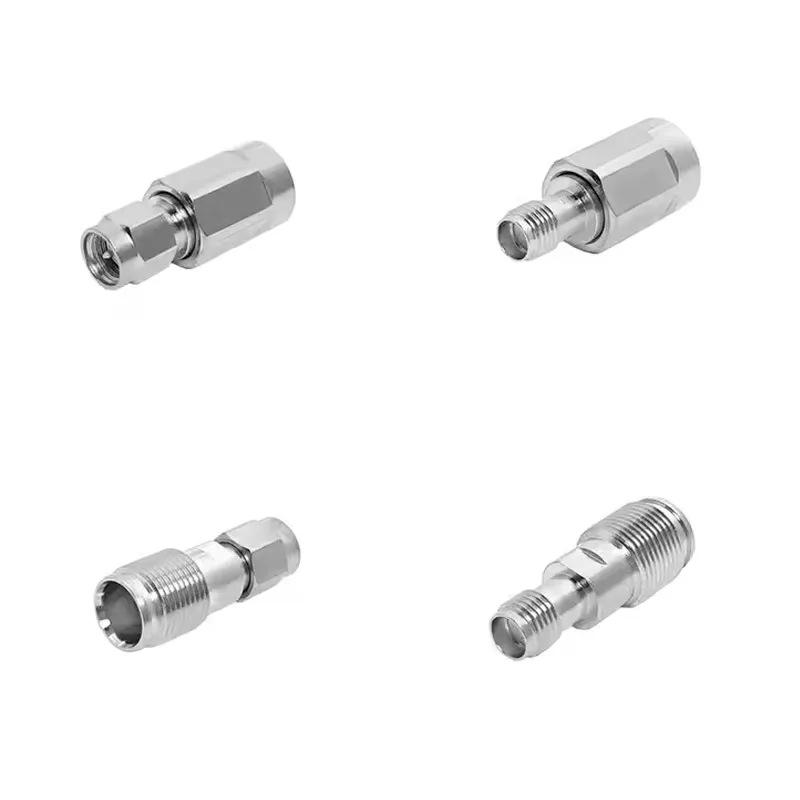

The BJDZ series and inter series coaxial adapters are specifically designed to meet the needs of any RF application. These adapters have consistent electronic performance and optimized mechanical reliability, and can be used to transfer common coaxial connectors such as BNC, SMA, Type N, and TNC.We specialize in the research and development, production, and sales of microwave devices such as RF connectors, RF adapters, RF jumper cables, antenna, lightning arresters, directional couplers, power dividers, synthesizers, and duplexers.
| Temperature range | -40~+85°C |
| Vibration | 100m/s2(10-500Hz) |
| Impedance | 50 Ohm |
| Frequency Range | DC – 11GHz |
| Working Voltage | 2700V max |
| Break-down Voltage | 4000V rms @ sea level |
| Contact resistance | ≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact |
| Average power | 3KW max |
| Insulation resistance | 10000M OHM |
| VSWR | ≤1.10 |
| Durability (mating) | ≥500 (cycles) |
We have been making RF connectors since 1991.
Our custom RF cable connectors are manufacture direct and skillful manufactured.
RF cable connectors in 50 ohms can be the following types such as EIA, 7，16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL , F .
RF cable connectors can be connected on the coaxial cable includes:RG141，RG142，RG174，RG178，RG179，RG180，RG187，RG196，RG213，RG214，RG218，RG219， RG223，RG303，RG316，RG316-DS，RG393，RG400，RG401，RG402，RG405，RG58U，1/2 ， 7/8 ， LMR195， LMR240，LMR400,ect
RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
