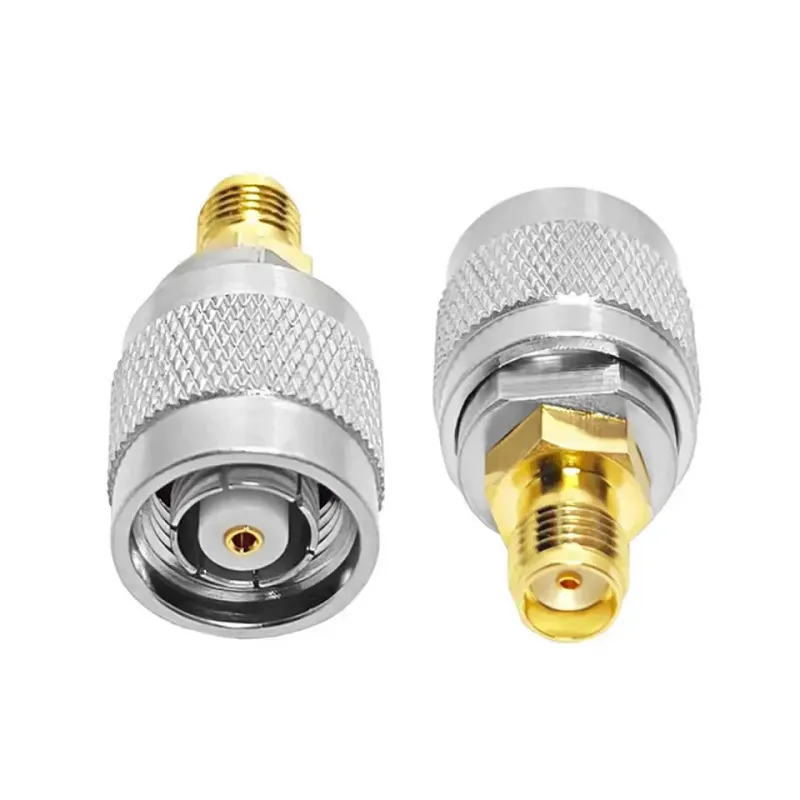

Factory Supply RP TNC Male to SMA Female Adaptor, Frequency 0-11GHz, VSWR≤1.3, SMA coaxial adapter is a connector used for transmitting data and current, and is a component for converting connector models. It covers different types of choices and can be used in various electronic devices. SMA adapters mainly serve as bridges, such as male to female, male to male, female to male, etc. Common SMA adapters include threaded connections, bayonet connections, and plug-in connections.We specialize in the research and development, production, and sales of microwave devices such as RF connectors, RF adapters, RF jumper cables, lightning arresters, directional couplers, power dividers, synthesizers, and duplexers.
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Impedance | 50Ω |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Frequency Range | DC-11GHz |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Withstanding Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insulation Resistance | ≥ 5000 MΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
We have been making RF connectors since 1991.
Our custom RF cable connectors are manufacture direct and skillful manufactured.
RF cable connectors in 50 ohms can be the following types such as EIA, 7，16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL , F .
RF cable connectors can be connected on the coaxial cable includes:RG141，RG142，RG174，RG178，RG179，RG180，RG187，RG196，RG213，RG214，RG218，RG219， RG223，RG303，RG316，RG316-DS，RG393，RG400，RG401，RG402，RG405，RG58U，1/2 ， 7/8 ， LMR195， LMR240，LMR400,ect
RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.
