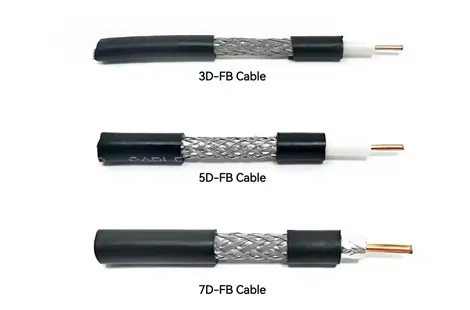

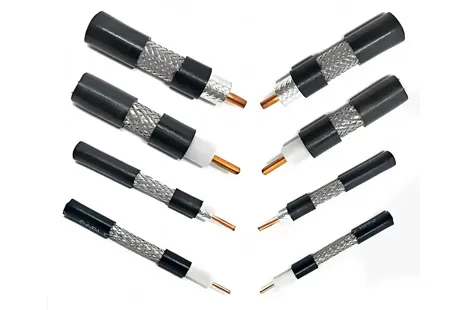

Our product models include: 3D-FB embossed coaxial cable, 5D-FB embossed coaxial cable, 7D-FB embossed coaxial cable, 8D-FB embossed coaxial cable, 10D-FB embossed coaxial cable, 12D-FB embossed coaxial cable, 1/4 "RF embossed coaxial cable, 1/4" ultra flexible RF embossed coaxial cable, 3/8 "RF embossed cable, 3/8" ultra flexible RF embossed cable, 1/2 "RF embossed cable, 1/2" ultra flexible RF embossed cable, 5/8 "RF embossed cable, 7/8" RF embossed cable, 1-1/4 "RF embossed cable, 1-1/4" RF embossed cable. 1-5/8 "RF embossed cables can meet various customer needs.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Copper clad steel | 1.80 |
| Dielectric | PE | 5 |
| Outer Conductor | Tin plated copper wire weaving | 5.7 |
| Jacket | PVC | 7.5 |
| Performance parameters | ||
| Capacitor | 82pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 81% | |
| Internal conductor DC resistance | 11.4Ω/km | |
| Outer conductor DC resistance | 14.1Ω/km | |
| Working temperature range | -25～+70℃ | |
| Bending radius | 38mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 100MHz | 6.3dB/m |
| 150MHz | 7.8dB/m | |
| 280MHz | 10.8dB/m | |
Zhenjiang Binjiang Electronic Co., Ltd.-RF technology expert, core business full range of RF products: adapter/connector/antenna/coaxial cable, customized services: OEM/ODM support, including fast sampling, testing optimization Top 500 enterprise suppliers with technological advantages, certified internationally, 24-hour technical response, focusing on 5G/satellite communication fields, global services, product coverage in over 30 countries, and aerospace grade quality assurance Corporate vision: To drive the development of wireless communication technology through innovation.
