Customization: One of the prominent features of cable components is their strong adaptability. Customized cable components can meet specific requirements, allowing integration of various connectors, lengths, and shielding options. Cable components can be customized to meet specific requirements for integration
Reduce interference: Carefully designed cable components can minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues, ensuring clear and uninterrupted signals.
| Key attributes | |
| Brand Name | BJDZ |

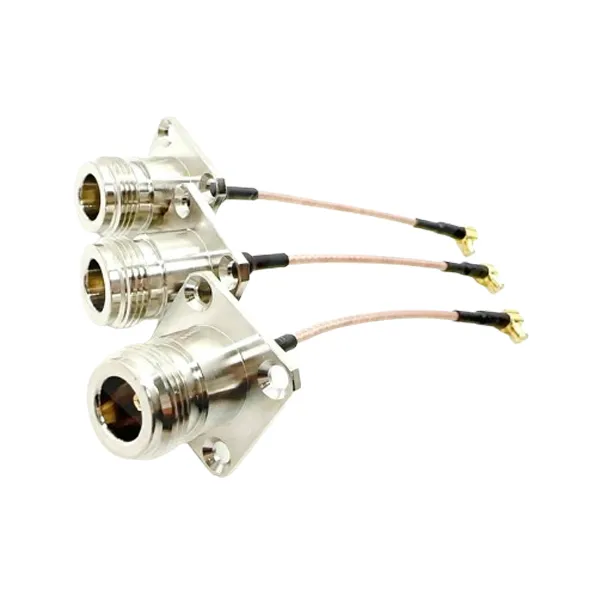

| Model Number | N-Type-Female-Flange-MCX-Male-90-RG316 |
| Type | Pigtail |
| Place of Origin | Jiangsu, China |
| Number of Conductors | 1 |
| Capacitance (Pf/M) | 96.45 |
| Impedance (Ohm) | 50 |
| Velocity(%) | 70 |
| Shielding | 13 |
| Max. Oper. Voltage (VMS) | 1200 |
| Operating Temp. (℃) | -55-200 |
| Length | Customized |
| Connector 1 | N |
| Connector 2 | MCX |
| Certificate | CE/FCC/ROHS/ISO9001:2000 |
| Keywords | network jumper cable |
| Frequency Range (MHz) | DC~12.4GHz |
| Max Voltage | 335V max |
| V.S.W.R | ≤1.20+0.003f |
| Withstand Voltage | 1000V rms |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Material | Brass/Gold Plated |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 14 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 20 |
| > 10000 | To be negotiated |
| Price | |
| 1 - 49 pieces | $1.69 |
| 50 - 499 pieces | $1.65 |
| 500 - 999 pieces | $1.52 |
| >= 1000 pieces | $1.25 |
1. We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
2. Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
