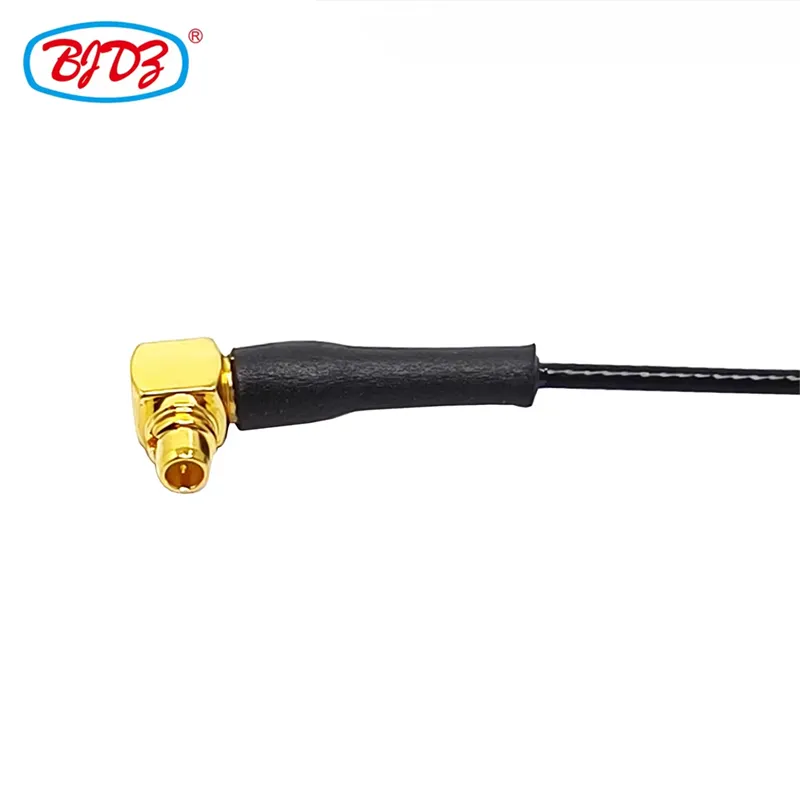

Factory-direct U.FL to MMCX 90-degree right angle RF pigtail cable assembly. Designed for seamless RF signal transition from board-level U.FL/IPEX MHF1 connectors to MMCX antenna ports. The 90° MMCX plug minimizes cable strain and saves vertical space in compact enclosures. Available in ultra-thin 1.13mm and standard 1.37mm micro-coax with custom lengths.
Parameter | Specification | ||
Connector A | U.FL / IPEX MHF1 Female Jack (Board-Mount Receptacle Style) | ||
Connector B | MMCX 90° Right Angle Male Plug | ||
Impedance | 50 Ω | ||
Frequency Range | DC – 6 GHz | ||
VSWR | ≤ 1.25 @ DC–6 GHz | ||
Cable Options | 1.13mm / 1.37mm Micro-Coax | ||
Length | Customizable (Standard: 10cm – 50cm) | ||
Compliance | RoHS, REACH | ||
| Cable | O.D. | Attenuation (@2.4GHz) | Best For |
| 1.13mm | 1.13 mm | ~90 dB/100m | Ultra-compact spaces, tight bending radius |
| 1.37mm | 1.37 mm | ~70 dB/100m | Standard routing, balanced signal loss & durability |
● Space-Saving 90° Design: The right angle MMCX plug reduces vertical clearance and minimizes cable bend stress at the connection point.
● Precision U.FL Mating: U.FL female receptacle mates securely with standard IPEX MHF1/UFL board-mounted plugs for reliable internal connections.
● Gold-Plated Contacts: Ensures low insertion loss, excellent conductivity, and long-term corrosion resistance.
● Low-Profile Micro-Coax: Ultra-thin 1.13mm/1.37mm cables route easily inside tight wireless device enclosures.
● 100% Factory Tested: Every assembly undergoes VSWR and continuity testing before shipment.
● Wi-Fi Routers & Wireless Access Points
● 4G/LTE Cellular Gateways & Modems
● GPS/GNSS Navigation Modules
● Bluetooth / Zigbee / LoRa IoT Devices
● Drone Flight Controllers & FPV Systems
● RF Test & Measurement Fixtures
| Part Number | Cable | MMCX Angle | Length |
| UFL-MMCXR90-113-100 | 1.13mm | 90° Right Angle | 100mm |
| UFL-MMCXR90-137-150 | 1.37mm | 90° Right Angle | 150mm |
| UFL-MMCXR90-137-300 | 1.37mm | 90° Right Angle | 300mm |
(Custom lengths, cable types, and connector orientations available upon request.)
Q1: What is the advantage of using a 90° MMCX connector over a straight MMCX?
A: A 90° right angle MMCX connector routes the cable horizontally instead of vertically. This saves vertical space inside enclosures, reduces cable strain at the connection point, and is ideal for devices with limited clearance above the connector.
Q2: Is the U.FL female connector compatible with standard IPEX MHF1 plugs?
A: Yes, the U.FL female jack (receptacle) is fully compatible and intermateable with standard IPEX MHF1/UFL male plugs found on most Wi-Fi, Bluetooth, and cellular modules.
Q3: How do I choose between 1.13mm and 1.37mm cable?
A: Choose 1.13mm for extremely tight spaces where flexibility and small bending radius are critical. Choose 1.37mm for better signal performance (lower attenuation) and improved mechanical durability in standard applications.
Q4: What is the mating cycle lifespan of the MMCX connector?
A: The MMCX connector is rated for a minimum of 500 mating cycles, making it significantly more durable than U.FL connectors and suitable for applications that may require occasional antenna disconnection.
Q5: Can you provide custom cable lengths and other connector combinations?
A: Yes, as a manufacturer we offer fully customizable cable assemblies. We can produce any length, and also offer combinations such as U.FL to SMA, U.FL to MCX, U.FL to FAKRA, and more. Contact us with your specific requirements.
