Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.
Core Competencies and Advantages: Comprehensive RF Product, Portfolio Adapters connectors antennas coaxial cables surge protectors, and passive components.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

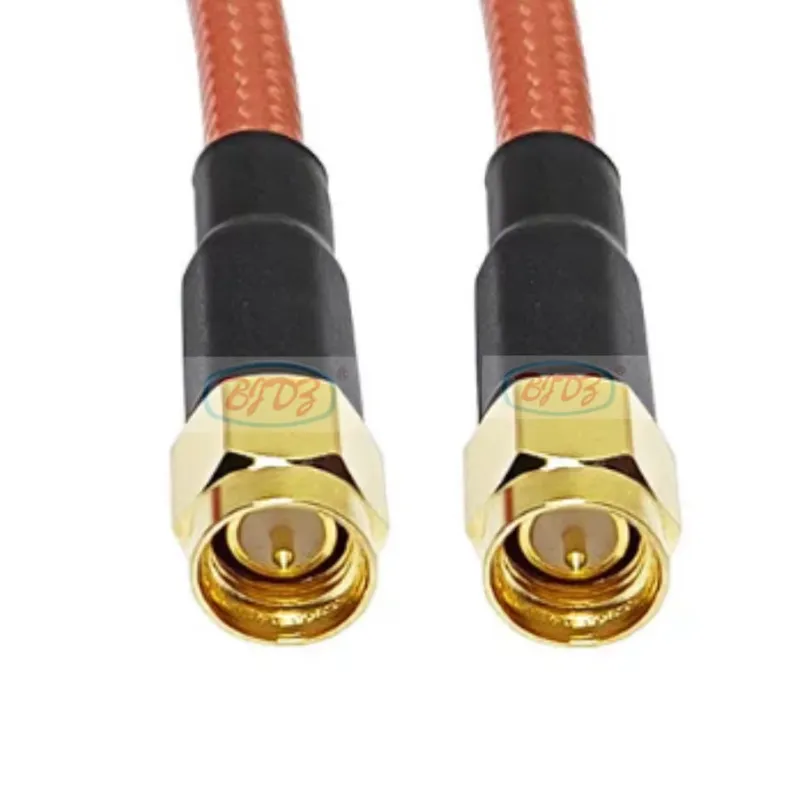

| Model Number | SMA Male Plug to SMA Male for RG142 Cable Assembly |
| Cable Type | RG142 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | custom |
| Frequency Range (MHz) | DC-12GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | custom |
| Single gross weight | custom |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| Price | custom |
Connecting the world and co creating the future is the enduring mission of Binjiang Electronics. We strive to build a fully connected world through signal interconnection products, solutions, and services, continuously creating value for customers and society.
Global Service Network: Experienced engineers provide 24/7 technical support, real-time consultation, and troubleshooting. Our products are widely used in cutting-edge applications including 5G base stations, satellite communications, and smart IoT, with customers worldwide, covering 30 countries and regions in Europe, the Americas, Asia Pacific, and other regions.
