Our OEM‑ready N‑Flange Panel Pigtail Cable is engineered for robust RF signal transmission in telecommunications, test equipment, base stations, and aerospace systems. Featuring industry‑standard N‑Flange panel mounting and a versatile range of connector options, this assembly ensures low VSWR, minimal insertion loss, and reliable performance up to 18 GHz. The cable is available in multiple coaxial cable types—RG402, SS402, RG405, SS405, 086—and is constructed with pure copper conductors for superior conductivity and durability.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | Custom |
| Cable Type | Custom |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | Custom |
| Frequency Range (MHz) | DC-6GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
US$1.58-2.99
Flange Interface: Standard N‑Flange (female) for secure panel mounting, compatible with common chassis cut‑outs.

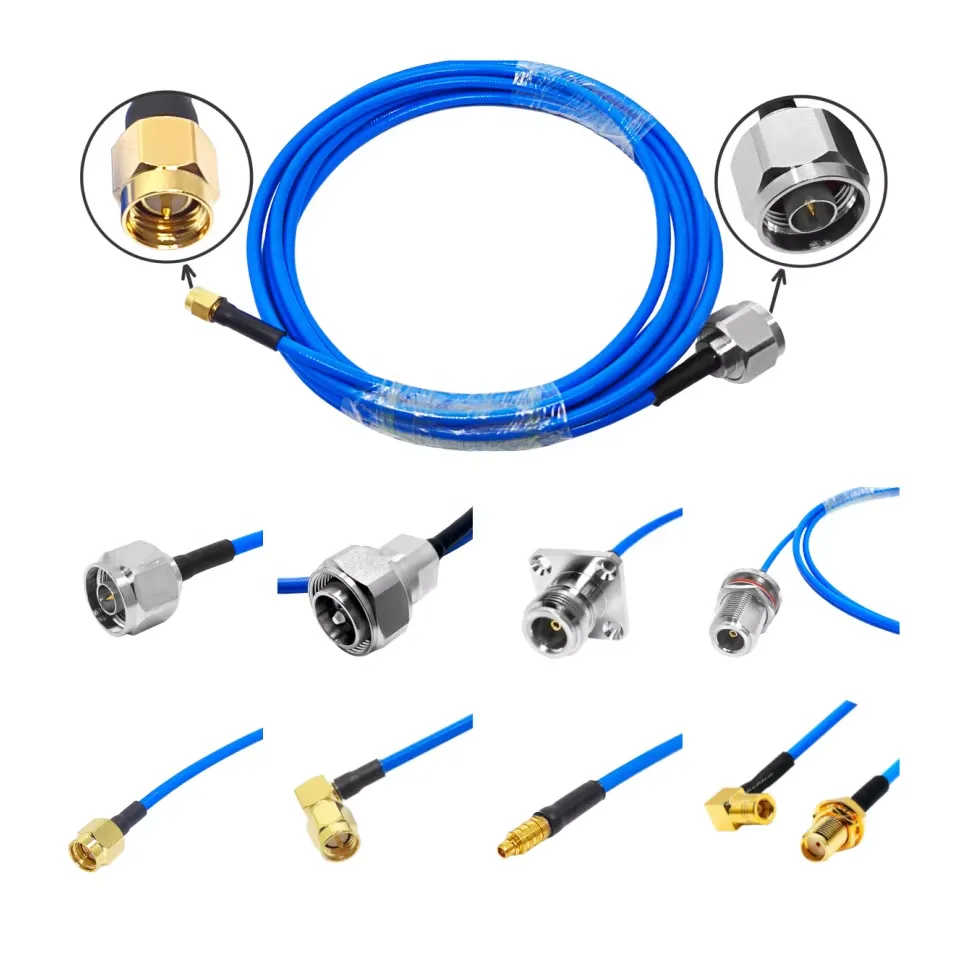

Connector Options: Choose from SMA, SMB, MMCX, MCX, BNC, TNC, 4.3‑10, 7/16 DIN in male or female configurations.
Cable Types: RG402/SS402 (semi‑rigid), RG405/SS405 (flexible), 086 series, all with copper core and high‑quality dielectric.
Frequency Range: DC to 18 GHz (dependent on cable and connector selection).
VSWR:<1.25:1 typical, ensuring minimal signal reflection.
Impedance: 50 Ω standard.
Shielding: Double‑braided shield + foil for excellent EMI/RFI protection.
Operating Temperature: −55°C to +125°C.
Customization: Length, connector combinations, and cable jackets can be tailored per OEM requirements.
Cellular & microwave base stations
Satellite communication equipment
RF test benches & measurement instruments
Military & avionics systems
Broadcast & wireless infrastructure
Precision Manufacturing: Each assembly is individually tested to meet stringent electrical specifications.
Broad Compatibility: Mix and match connectors to interface with virtually any RF port.
Durability: Stainless‑steel connectors and corrosion‑resistant plating ensure long service life.
Fast OEM Support: We provide custom labeling, bulk packaging, and rapid turnaround for high‑volume orders.
Specify:
Cable type (e.g., RG402, SS405)
Length (standard 6″, 12″, 24″, or custom)
Panel‑side connector (N‑Flange female)
Pigtail‑end connector (select from available options)
Quantity (MOQ: 100 pcs for custom configurations)
Compliance & Quality
RoHS & REACH compliant
ISO 9001:2015 certified production
100% electrical testing before shipment
Contact our OEM sales team for pricing, technical drawings, and sample requests. We specialize in high‑reliability RF cable assemblies tailored to your project needs.
Note: Product details are based on the provided Alibaba link title and industry‑standard specifications for RF pigtail cables. For exact mechanical dimensions or performance graphs, please consult our engineering datasheets.
