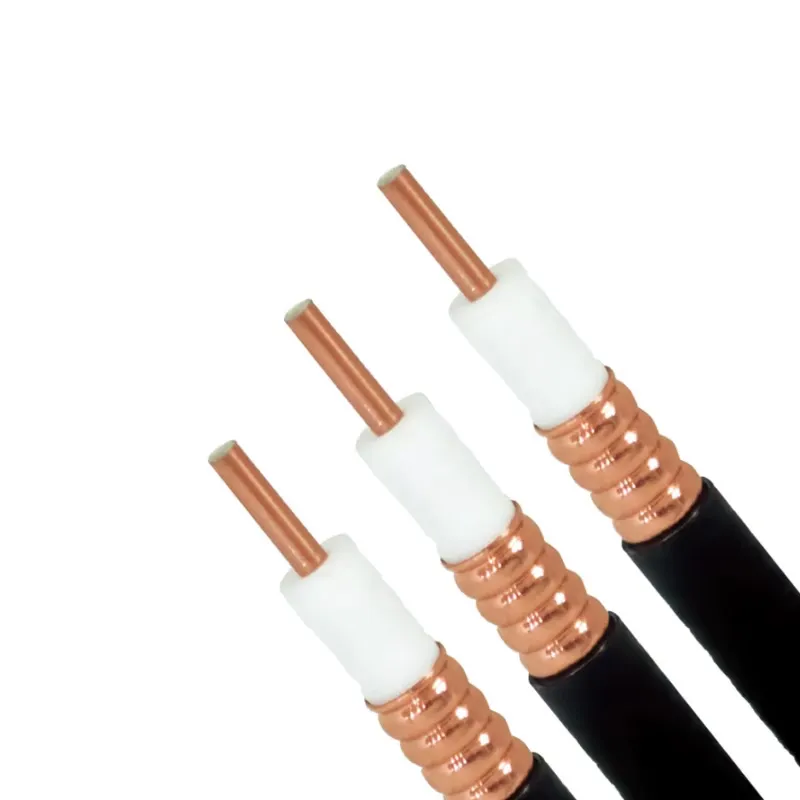

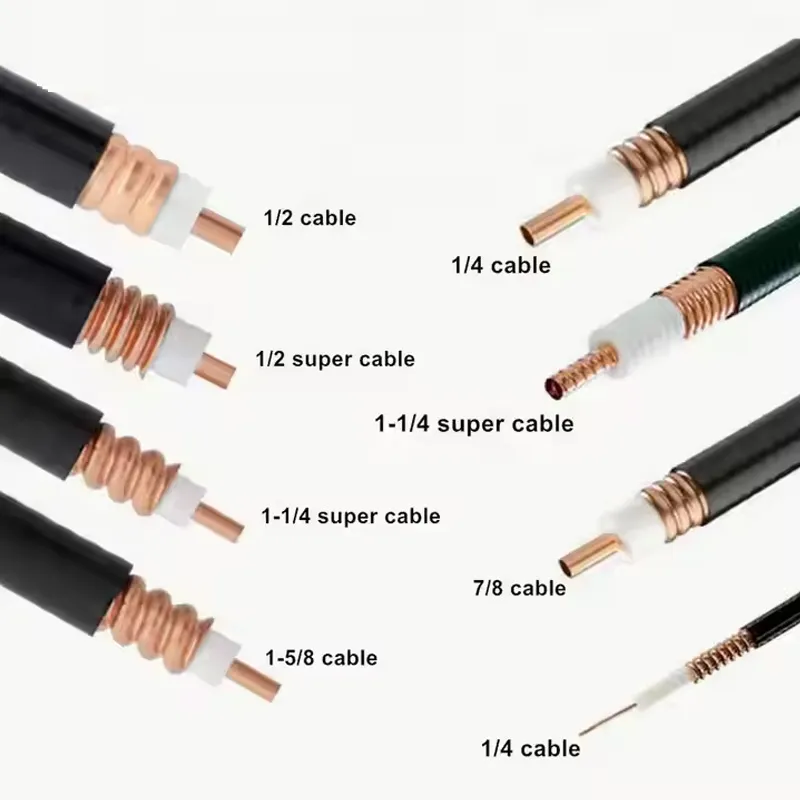

The 1/2 RF coaxial cable is a rigid feeder with a 50Ω impedance. Its inner conductor is made of copper-clad aluminum wire, the outer conductor is made of circular corrugated copper tube, the insulation layer is made of physical foamed polyethylene, and the sheath is made of low-smoke, zero-halogen, flame-retardant polyolefin. Its characteristic impedance is 50±2Ω, transmission rate is 88%, and operating frequency band is 5~3000MHz, making it suitable for professional scenarios such as television broadcasting and satellite communication
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Copper-clad aluminum wire | 4.82 |
| Dielectric | PE | 12.95 |
| Outer Conductor | Corrugated copper | 13.97 |
| Sheath | PE | 15.87 |
| Performance parameters | |||
| Capacitor | 75.8pF/m | ||
| Impedance | 50ohm | ||
| Transmission rate | 88% | ||
| DC Resistance, Inner Conductor | 1.48 ohms/km | ||
| DC Resistance, Outer Conductor | 2.69 ohms/km | ||
| DC Test Voltage | 4000 V | ||
| Operating Frequency Band | 1-8800 MHz | ||
| Inductance | 0.19 µH/m | ||
| Insulation Resistance | 100000 MOhms-km | ||
| Jacket Spark Test Voltage (rms) | 8000 V | ||
| Peak Power | 88% | ||
| Working temperature range | -70～+85℃ | ||
| Bending radius | 50.8mm | ||
| ROHS/CE/FCC | YES | ||
| VSWR/Return Loss | Frequency Band | VSWR | Return Loss (dB) |
| 680–800 MHz | 1.13 | 24.3 | |
| 800–960 MHz | 1.13 | 24.3 | |
| 1700–2200 MHz | 1.13 | 24.3 | |
| 2300–2700 MHz | 1.13 | 24.3 | |
When using RF coaxial cable 1/2 feeders, the following points should be noted:
Select the appropriate specifications: Choose the appropriate specifications and length based on the specific application scenario and requirements to ensure optimal transmission performance and stability.
Proper installation and connection: During the installation and connection process, it is necessary to follow relevant operating specifications and standards to ensure that the integrity and performance of the cable are not affected.
Regular inspection and maintenance: Regularly inspect and maintain the RF coaxial cable to promptly identify and address potential issues and faults, ensuring the normal operation and stability of the communication system.
