Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
Reduce interference: Carefully designed cable components can minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues, ensuring clear and uninterrupted signals.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

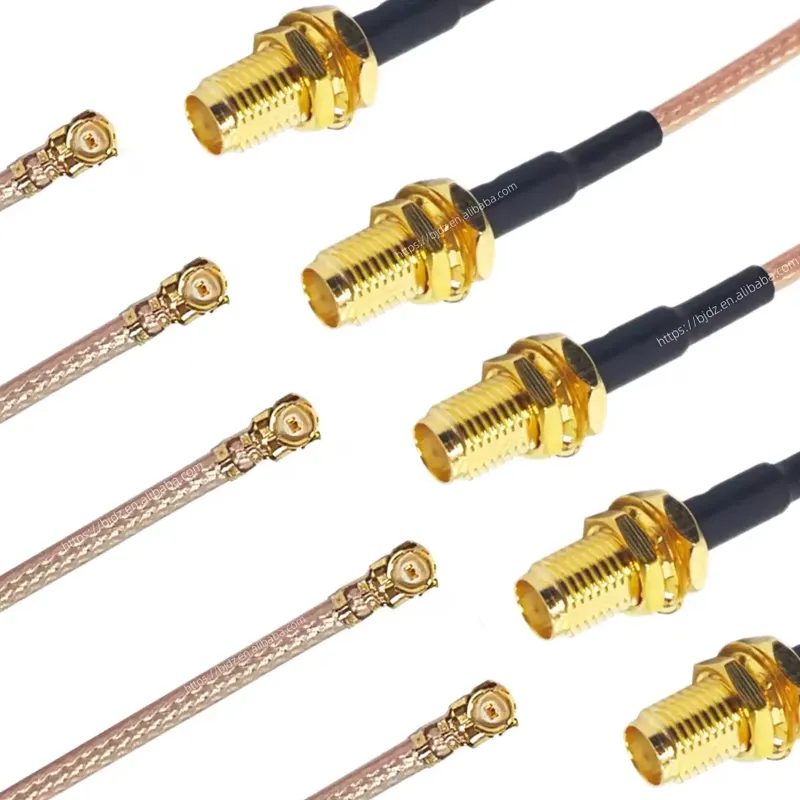

| Model Number | RP SMA Female to U.FL for RG178 Pigtail Jumper Cable |
| Cable Type | RG178 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | 20CM |
| Frequency Range (MHz) | DC-12.5GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 15X5X3 cm |
| Single gross weight | 0.015 kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 20 - 999 pieces | $1.58 |
| 1000 - 1999 pieces | $1.25 |
| >= 2000 pieces | $1.08 |
We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.
