Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
Reliability: The design of cable components is durable, maintaining performance even in harsh environments and providing stable, uninterrupted connections.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

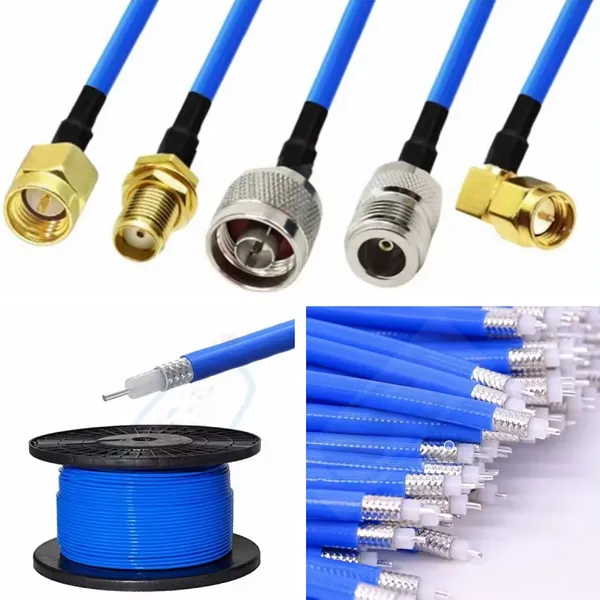

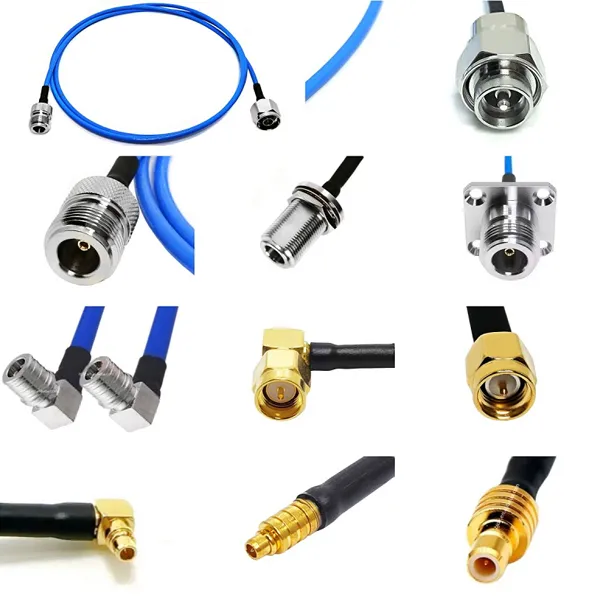

| Model Number | Sma Male to N Female Cable Assembly |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Frequency Range (MHz) | 0-12.5GHz |
| Max Voltage | 335V max |
| Temperature range | -65~+165°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | Center Contact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight flex cable ≤ 1.10+0.02 fSemi-rigid cable ≤ 1.07+0.018f Right angle flex cable ≤ 1.20+0.03f Semi-rigid cable ≤ 1.17+0.02f |
| Packaging and delivery | |
| Selling Units | Single item |
| Single package size | 15X10X1 cm |
| Single gross weight | 0.1kg |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
| Price | |
| 50 - 1999 pieces | $3.02 |
| 2000 - 4999 pieces | $2.99 |
| >= 5000 pieces | $2.68 |
1. Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.
2. Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
