Precision-Engineered 90° Right Angle RF Jumper for Space-Constrained Installations
Designed to meet the stringent demands of modern telecommunications, this 90° right angle 4.3-10 Male to 4.3-10 Male jumper features a compact design and 1/4" Superflex cable for exceptional flexibility and signal integrity. Manufactured by [Factory Name], a trusted industry leader, this assembly is ideal for applications where space is limited, such as in-base station cabinets, distributed antenna systems (DAS), and microwave links.
The 4.3-10 connectors offer low passive intermodulation distortion (PIM) and high-frequency performance, while the 1/4" Foam Superflex cable ensures minimal bending losses and effortless installation in tight bends. The cable’s foam polyethylene (PE) insulation and corrosion-resistant outer jacket guarantee long-term reliability, even in harsh environments. This jumper is a perfect fit for 5G deployments, broadcast systems, and critical test & measurement setups.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | 4.3-10 Male to 4.3-10 Male for 1/4 Superflex Cable |
| Cable Type | 1/4 Superflex Cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-11GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
price
| 50 - 1999 pieces | $3.98 |
| 2000 - 4999 pieces | $3.58 |
| >= 5000 pieces | $3.20 |
Space-Saving Design: 90° angle connector saves valuable cabinet space.
Ultra-Flexibility: 1/4" Superflex cable bends without signal degradation.
Low Loss & High Performance: Optimized for frequencies up to 6 GHz.
Robust Construction: Weatherproof jacket and precision connectors for durability.
Customizable: Available in standard lengths or made-to-order specifications.
Parameter | Specification |
Connector Type | 4.3-10 Male Plug (Straight) to 4.3-10 Male 90° Right Angle |
Cable Diameter | 1/4" (6.35 mm) Foam Superflex Coaxial Cable |
Cable Length | [Enter Standard Length, e.g., 3 meters] (Custom lengths available) |
Impedance | 50 Ω |
Frequency Range | DC to 6 GHz |
VSWR Max. | ≤ 1.20 |
Insertion Loss (at 6 GHz) | ≤ 6 dB/m (Typical) |
Center Conductor | Copper-Clad Aluminum (CCS) / Solid Copper (Optional) |
Dielectric | Foam Polyethylene (PE) |
Outer Jacket | Low Smoke Zero Halogen (LSZH) or UV-Resistant Polyethylene (PE) |
Operating Temperature | -40°C to +85°C |
Environmental Protection | IP68 (Connector Sealing Dependent) |
Certifications | RoHS, REACH, ISO 9001:2015 |

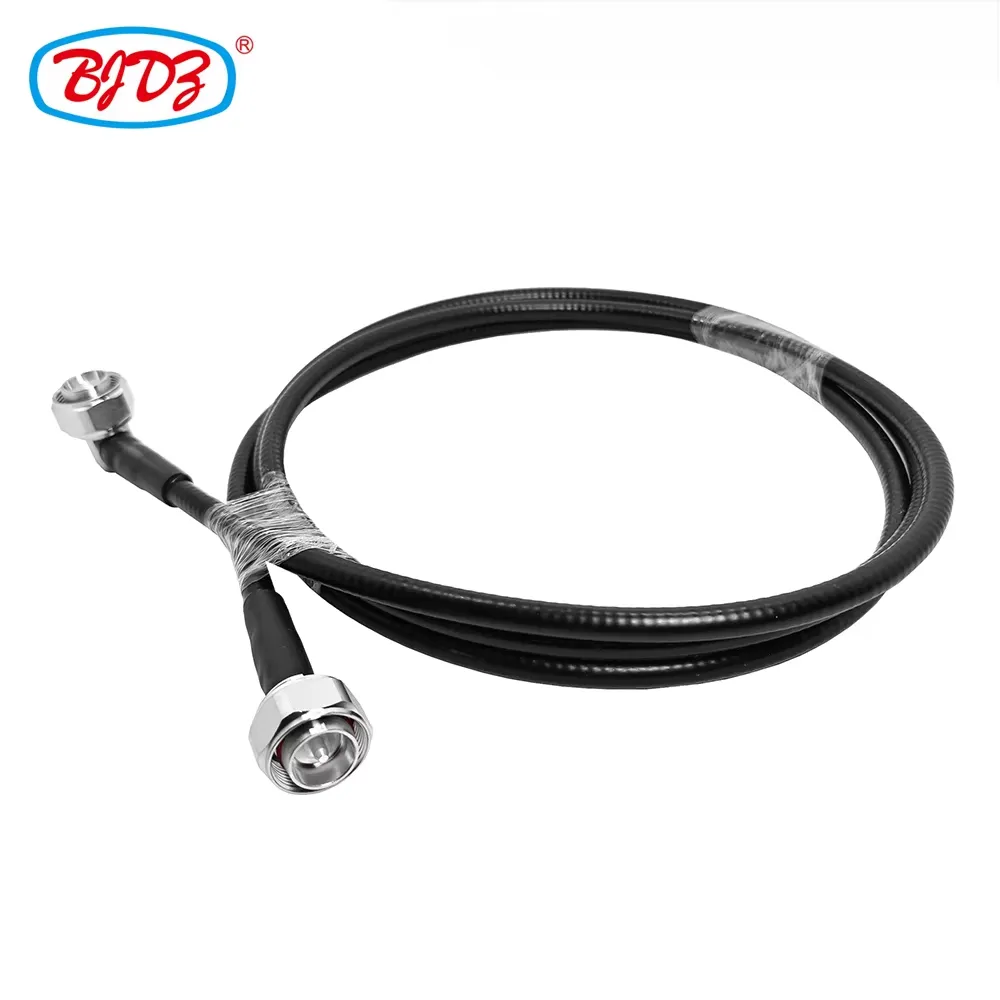

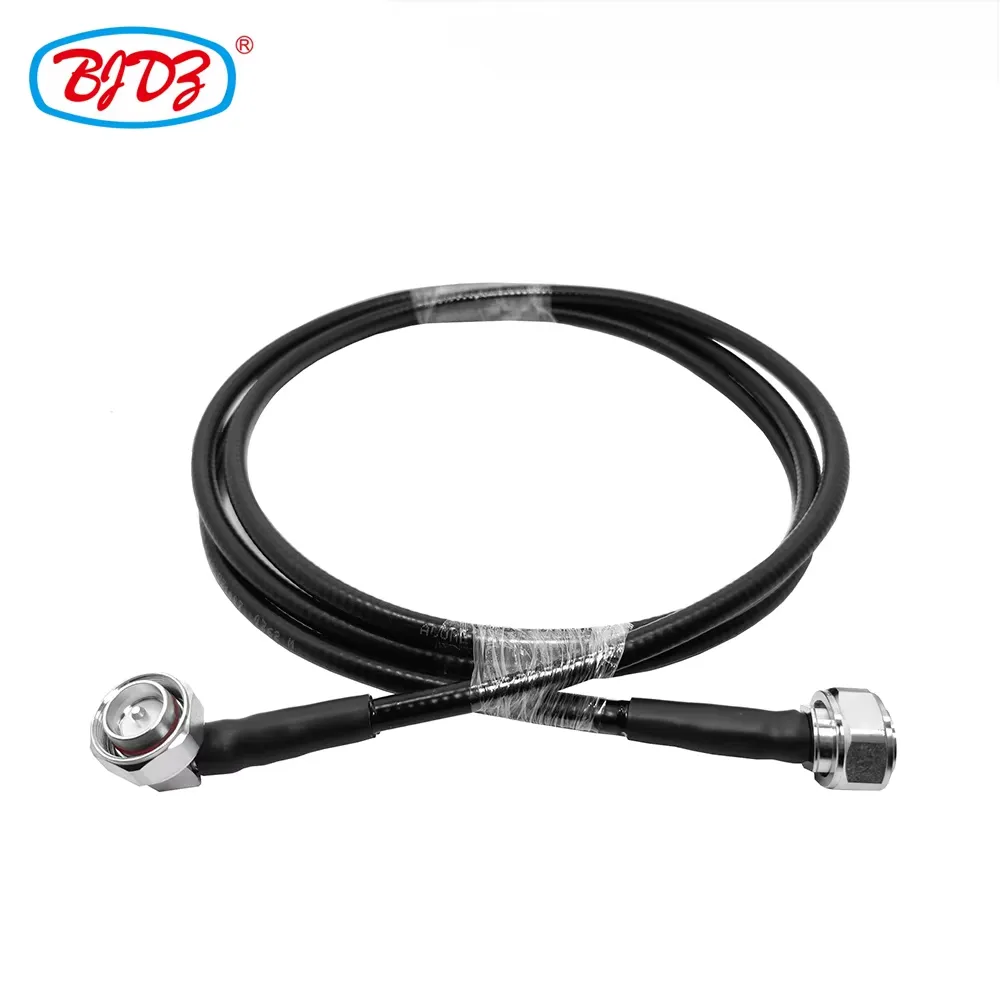

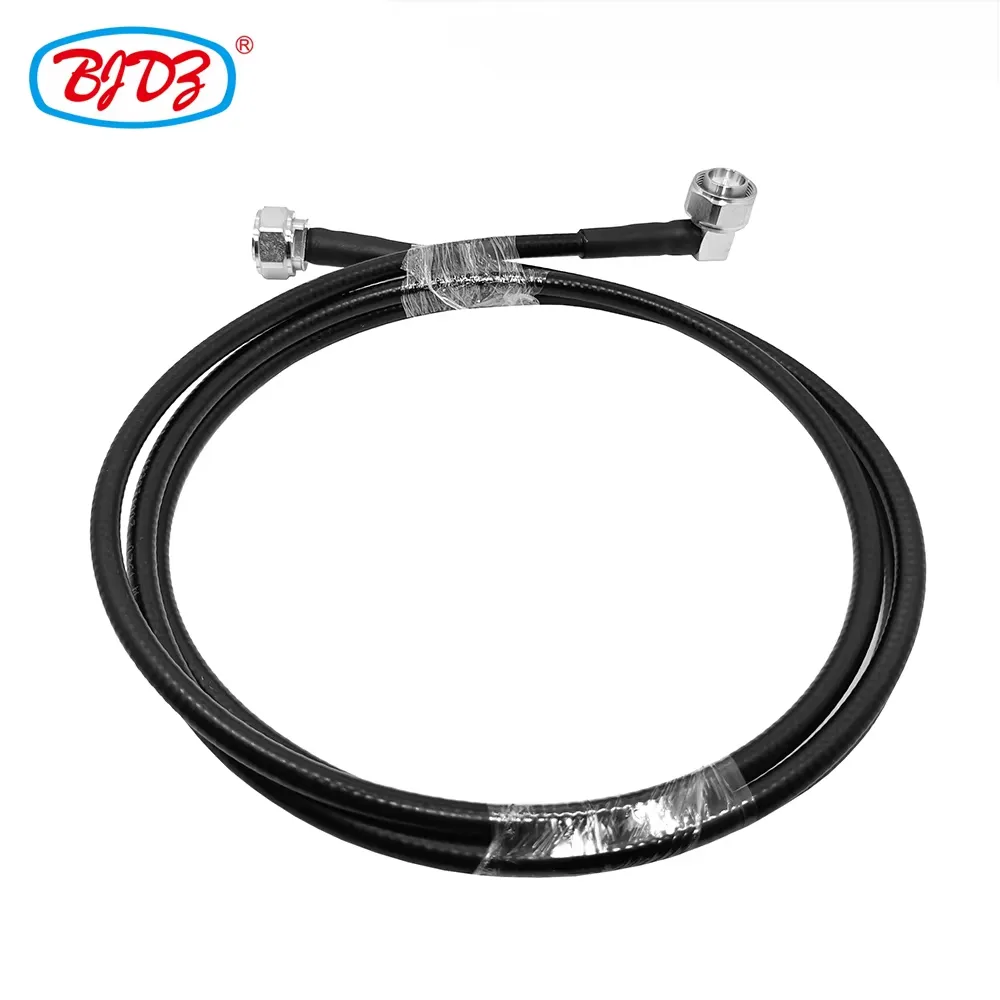

Main Image: 90° angle connector assembly with cable unwound to showcase flexibility.

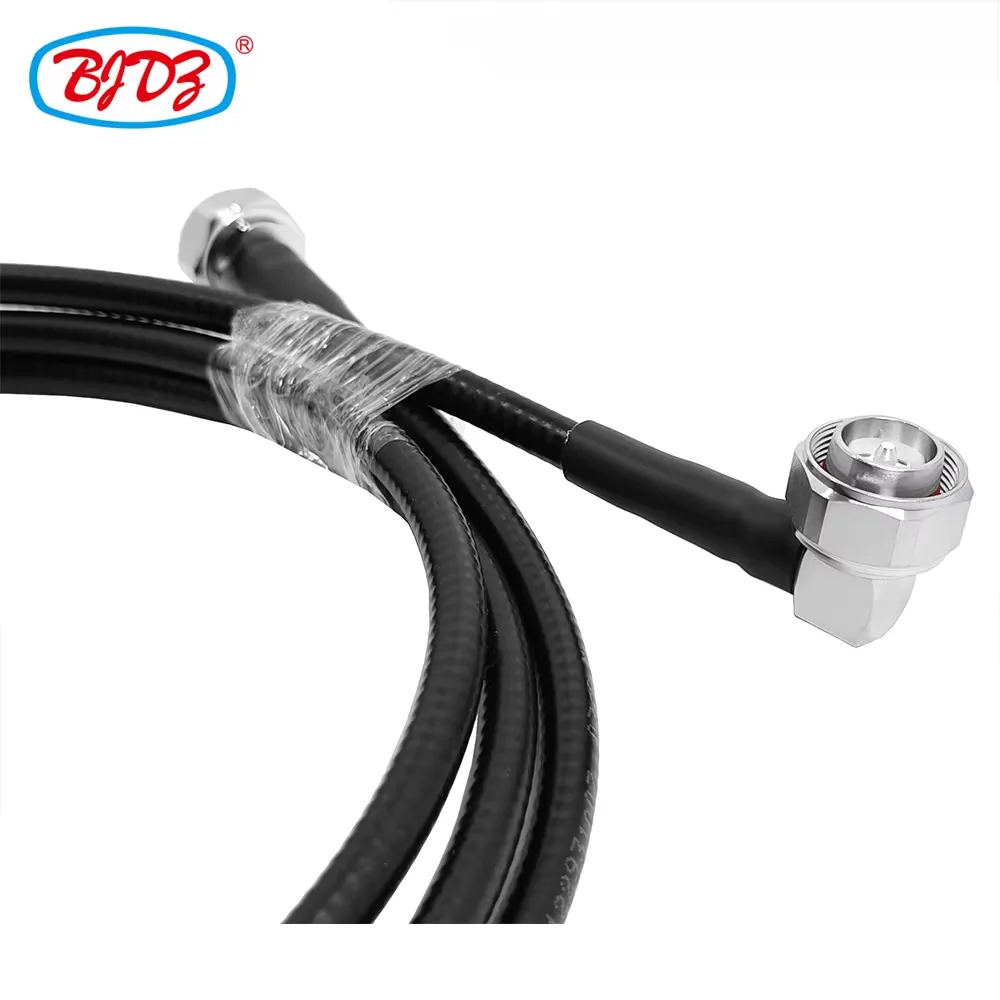

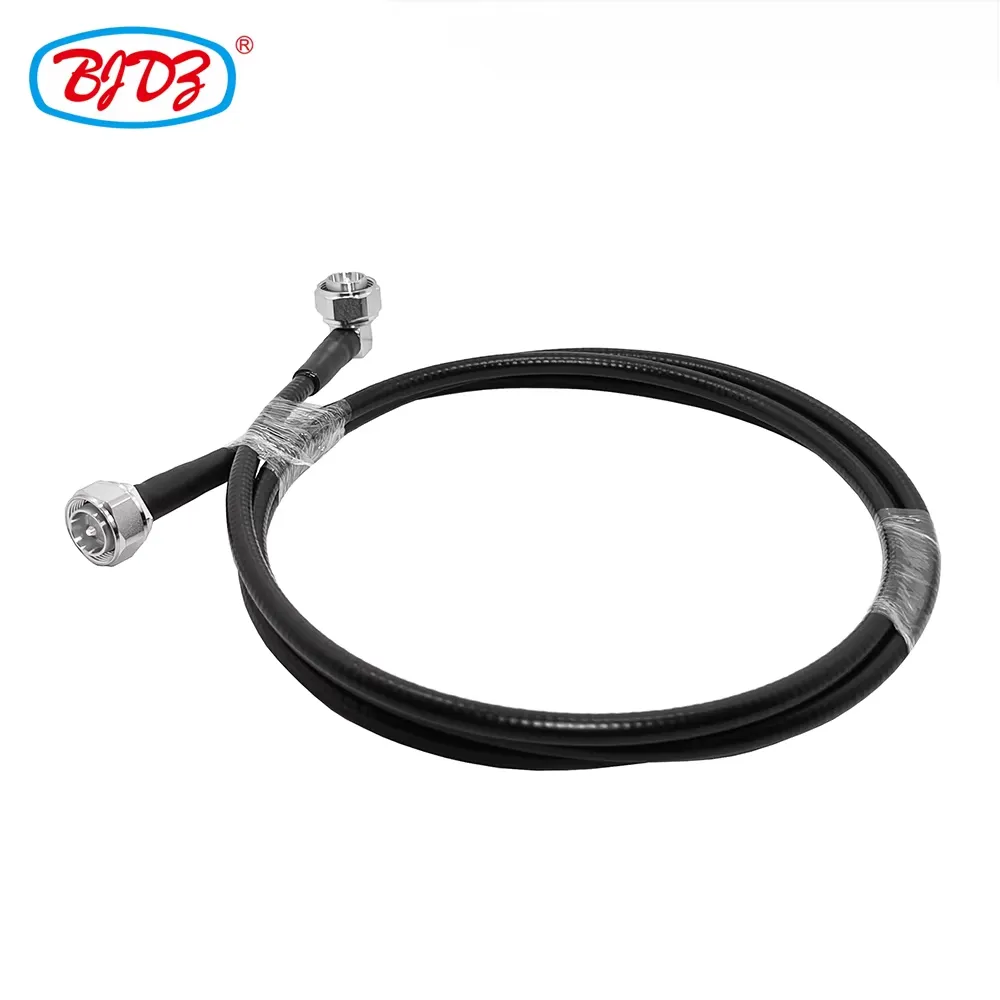

Detail Shot: Close-up of the precision-machined 4.3-10 connectors with laser markings.
Bend Test: Cable flexed to demonstrate its bend radius capability without kinking.
Application Mockup: Jumper installed in a telecom rack or outdoor antenna setup.
Cross-Section: Diagram illustrating cable layers (CCS conductor, foam PE, shielding).
This specialized jumper is essential for:
5G Infrastructure: Connecting RRUs to antennas in dense deployments.
DAS Systems: Routing cables through walls or ceilings with minimal signal loss.
Industrial & Military: Radar systems, satellite communications, and defense equipment.
Laboratory Testing: RF calibration and measurement setups requiring repeated bending.
Broadcasting: Transmitting high-frequency signals in studios or transmission towers.
BJDZ is a global supplier of premium RF components with over 18 years of experience. Our factory, certified by ISO 9001 and TÜV Rheinland, ensures:
Advanced Manufacturing: CNC machining and automated testing lines.
OEM/ODM Capabilities: Custom connectors, cable lengths, and shielding solutions.
Global Delivery: Serving clients in North America, Europe, Asia, and the Middle East.
Quality Commitment: 100% pre-shipment testing, including VSWR and PIM analysis.
Contact Us
For custom requirements (e.g., different angles, lengths, or connector combinations), our engineers are ready to assist. Fill out the form or email minna_liao@bjdz.top.com for personalized solutions. Bulk orders enjoy competitive pricing and expedited shipping.
Note: Minimum order quantities (MOQ) apply for standard products. Custom orders may require lead time evaluation.
Disclaimer: Specifications subject to change. Contact us for the latest datasheet and certification documents.
P.S. Share your RF challenges with us—we engineer solutions for the toughest connectivity problems.
