Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

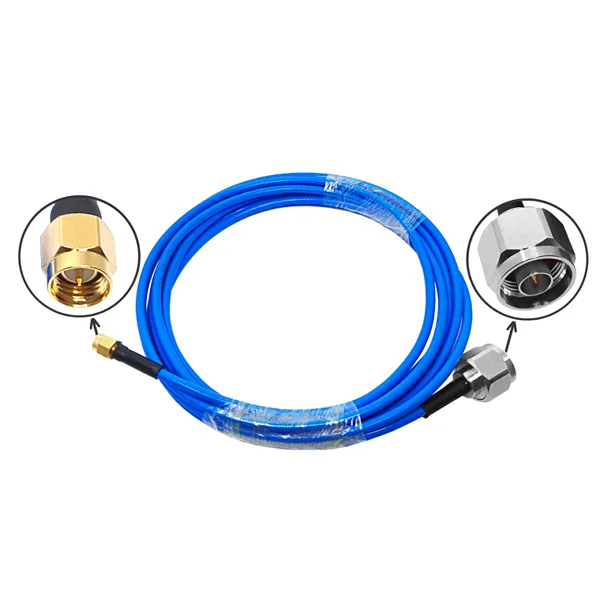

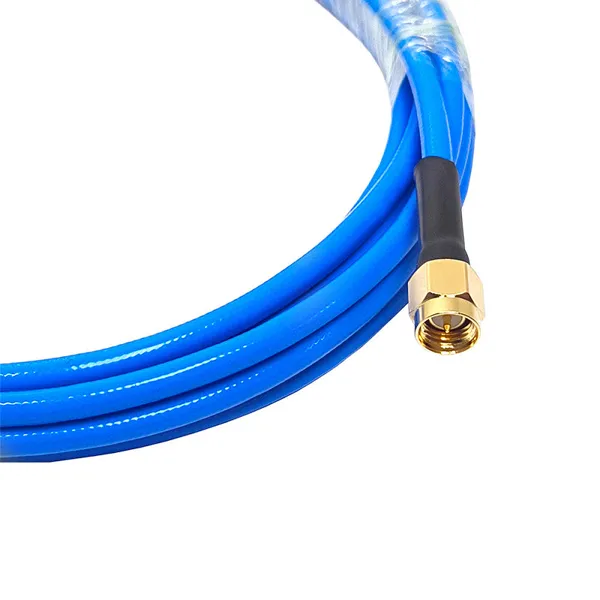

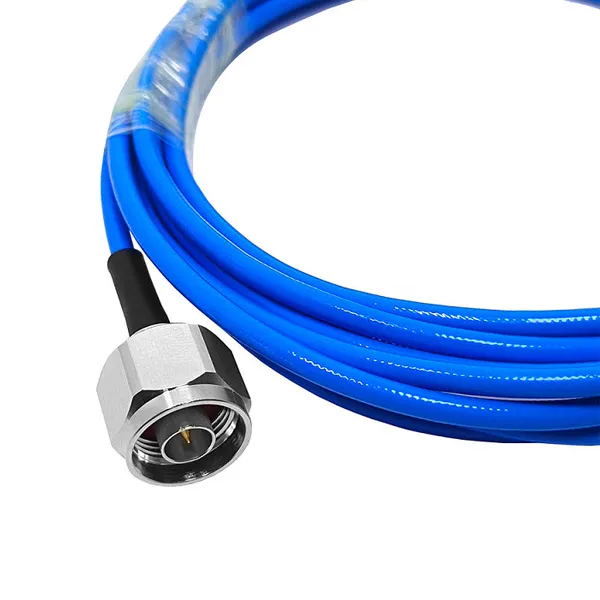

| Model Number | N Male to SMA Male Plug RG402 |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Length | 30cm(11.81in) |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Impedance | 50Ω |
| Frequency | DC-12.4GHz(semi-rigid cable DC-18 GHz) |
| VSWR | 1.15+0.02f |
| Insulation Resistance | 5000MΩ |
| Durability | 500 cycles |
| Describe | 50ohm calibration |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstanding Voltage | 1000V r.m.s at sea level |
| Working Voltage | 335Vr.m.s at sea level |
| Contact resistance | Center Contact ≤ 3mΩ Outer Contact ≤ 2.5mΩ |
| Voltage Standing Wave Ratio | Straight |
| Right Angle | |
| Packaging Delivery | |
| Selling Units | Single item |
| Single package size | 20X15X5 cm |
| Single gross weight | 0.170 kg |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 199 pieces | $2.89 |
| 200 - 999 pieces | $2.25 |
| 1000 - 4999 pieces | $2.20 |
| >= 5000 pieces | $1.89 |
1. Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
2. Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.
