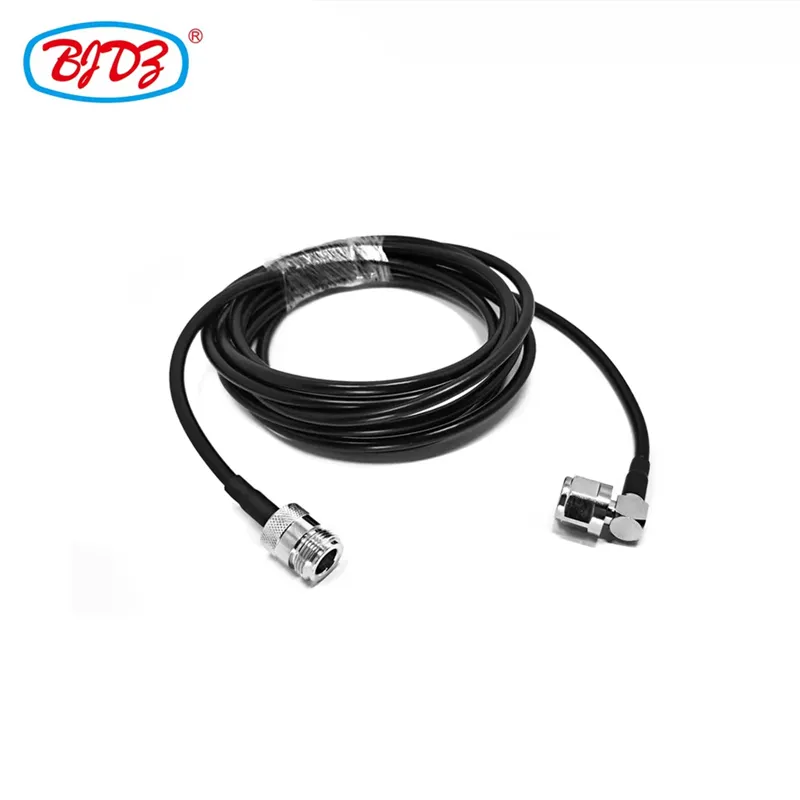

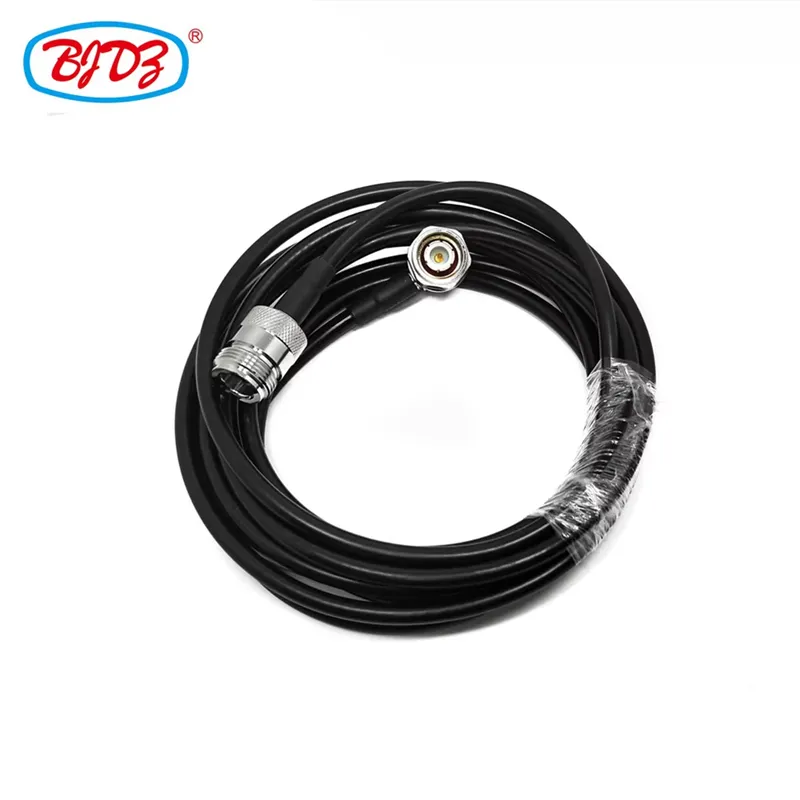

Solve your tight-space RF routing challenges with our TNC Male Right Angle (90°) to N Female Jack Cable Assembly, precision-built with LMR195 low-loss 50-Ohm coaxial cable. The 90-degree TNC Male connector eliminates the need for awkward cable bends behind equipment racks, inside enclosures, and on dense panel mounts — saving critical clearance while maintaining optimal signal flow. The N Female Jack end provides a robust, weatherproof, and high-power interface for outdoor antennas, base stations, and industrial RF equipment. LMR195 cable delivers up to 40% lower attenuation than RG58, making it the ideal choice for Wi-Fi, cellular, ham radio, and IoT applications. Factory-direct pricing, custom lengths, and global shipping available.
Parameter | Specification Details | ||
End A | TNC Male Right Angle (90° Plug) – Threaded Coupling, 7/16"-28 UNEF | ||
End B | N Female Jack (Receptacle) – Threaded Coupling, 5/8"-24 UNEF | ||
Impedance | 50 Ohms | ||
Cable Type | LMR-195 – 50 Ohm Low Loss Flexible Coax | ||
Frequency Range | DC – 11 GHz (TNC) / DC – 11 GHz (N-Type) | ||
VSWR | ≤ 1.25 (Up to 3 GHz) / ≤ 1.35 (Up to 6 GHz) | ||
Cable Attenuation | ~10.5 dB/100ft @ 1 GHz / ~16.5 dB/100ft @ 2.4 GHz | ||
Connector Material | Brass with Nickel Plating | ||
Center Contact | Gold-Plated Brass / Beryllium Copper | ||
Cable OD | 5.0 mm | ||
Shielding | Foil + Tinned Copper Braid (>90 dB Shielding Effectiveness) | ||
Dielectric | Foam PE | ||
Jacket | PVC (Standard) / LSZH (Optional) | ||
Temperature Range | -40°C to +85°C | ||
Bend Radius (Min) | 25 mm | ||
Certifications | RoHS, REACH, CE, ISO9001 Factory Audited | ||

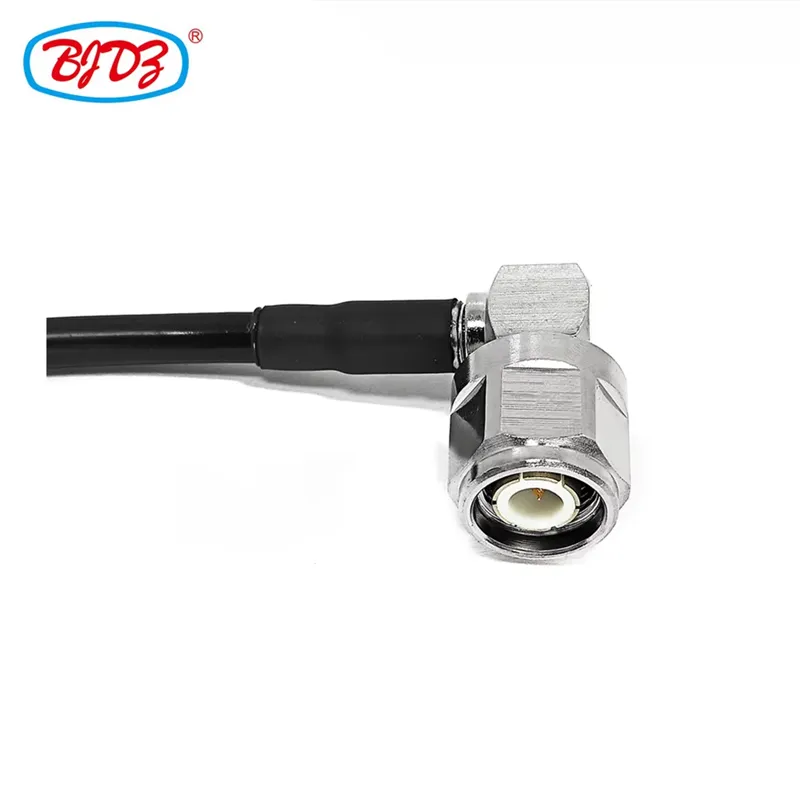

● 90° Right-Angle TNC Male — Space-Saving Design: The right-angle TNC connector allows the cable to exit perpendicular to the mating surface, eliminating the need for 2-3 inches of straight clearance required by standard straight connectors. This is critical for dense equipment racks, embedded systems, vehicle dashboards, and panel-mounted antennas.
● Ultra-Low Loss LMR195 Coax: LMR195 features a foam PE dielectric and advanced foil-plus-braid shielding, delivering up to 40% lower attenuation compared to standard RG58 at high frequencies. This means stronger signal delivery for Wi-Fi, 4G/LTE, GPS, and UHF applications — especially over runs of 5-15 feet.

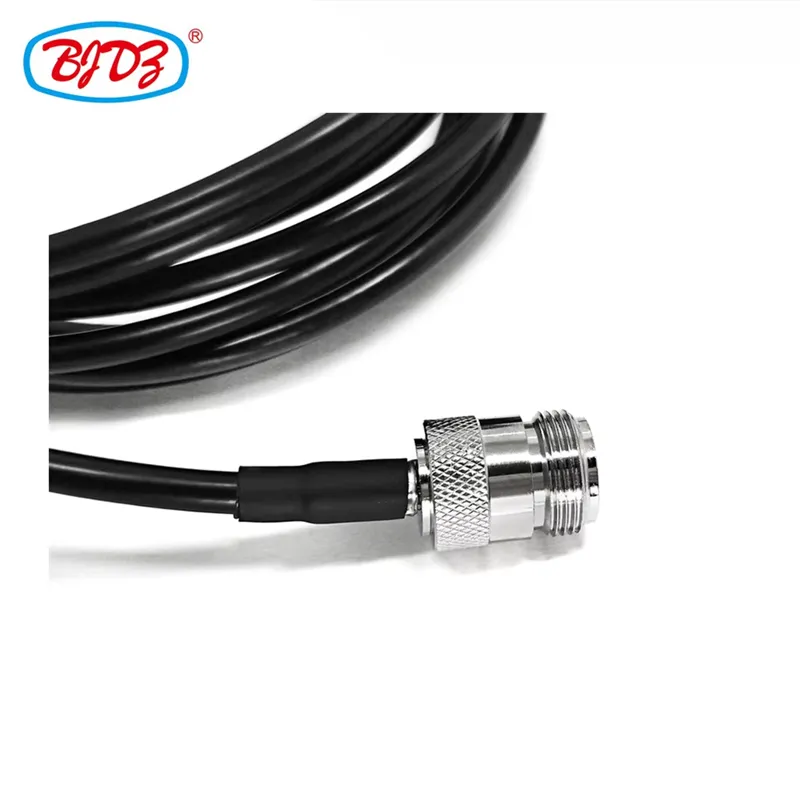

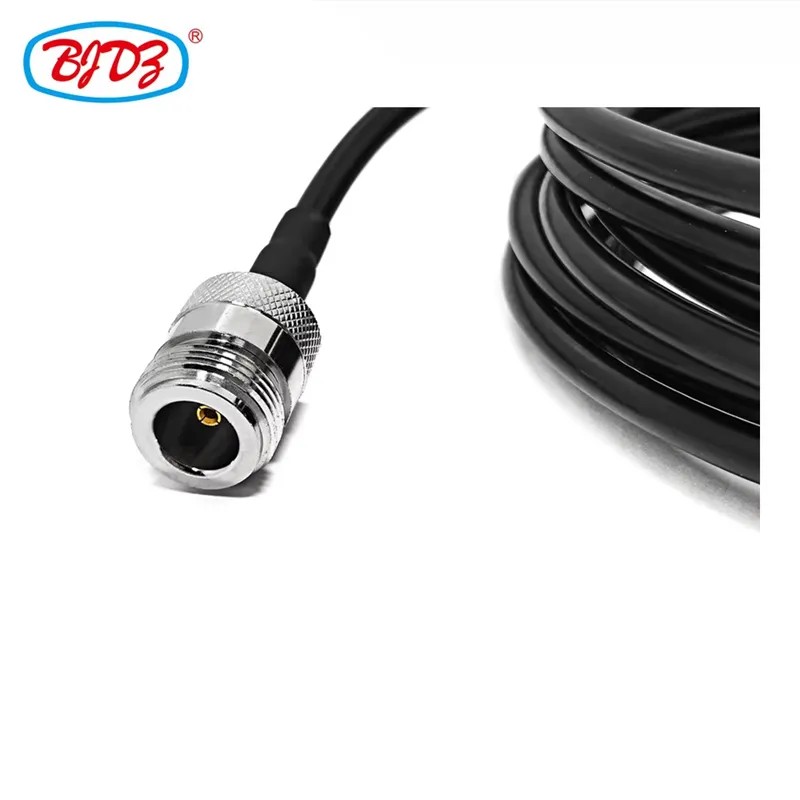

● Robust N Female Jack Interface: The N Female (Jack/Receptacle) connector is the industry standard for high-power, outdoor, and base station applications. Its large threaded coupling (5/8"-24 UNEF) provides superior weather resistance, mechanical strength, and power handling (up to 500W+ at VHF/UHF).
● Vibration-Resistant Threaded Coupling: Both TNC and N-Type connectors utilize secure threaded coupling mechanisms, ensuring reliable connections in high-vibration environments such as industrial machinery, vehicles, and tower installations.
● Superior Shielding & Interference Rejection: LMR195's foil + braid dual shielding provides >90dB shielding effectiveness, completely blocking external RFI/EMI. This is essential for sensitive receivers, GPS timing systems, and dense RF environments.
● Highly Flexible & Easy to Route: Despite its low-loss performance, LMR195 maintains a compact 5.0mm outer diameter and 25mm minimum bend radius, allowing easy routing through tight spaces, conduit, and equipment enclosures.
● Precision CNC Machined Connectors: All connectors are machined from high-grade brass with gold-plated center contacts to ensure minimal insertion loss, prevent oxidation, and guarantee a long mating lifecycle.
● 100% Factory QC Tested: Every assembly is individually verified for continuity, VSWR, insertion loss, and mechanical integrity before shipment. Test reports available upon request.
● Panel-Mount Antenna Systems: Ideal for connecting TNC-port equipment to N Female bulkhead connectors on enclosures, panels, and weatherproof boxes where space behind the panel is limited.
● Wi-Fi & Enterprise Networking: Extending external TNC antennas on industrial routers (Ubiquiti, MikroTik, Cisco) to N Female-port access points, signal boosters, and wireless bridges using low-loss LMR195.
● Amateur (Ham) Radio & Repeaters: Connecting TNC-equipped transceivers, TNCs (Terminal Node Controllers), and digital mode controllers to N Female-port antennas, duplexers, and cavity filters.
● Cellular & DAS (Distributed Antenna Systems): Routing 4G/LTE/5G signals from TNC-port modems and gateways to N Female rooftop antennas and signal amplifiers.
● Industrial IoT & M2M: Linking ruggedized TNC-port IoT gateways and PLCs to N Female-panel-mounted antennas in factory automation, agricultural, and transportation environments.
● GPS & GNSS Timing Systems: Connecting high-precision TNC-port receivers to N Female bulkhead connectors on timing distribution panels and network clocks.
● Test & Measurement Labs: Serving as reliable, low-loss test jumpers between spectrum analyzers, signal generators, and DUTs with TNC and N-Type interfaces.
● Vehicle & Mobile Installations: Routing antenna connections from TNC-port in-cabin radios and GPS trackers to N Female vehicle-roof antennas, where the right-angle connector saves critical dashboard and console space.
As a direct RF manufacturer, we provide end-to-end customization to match your exact project requirements:
● Custom Lengths: Precision cut from 0.15m (6") to 15m (50ft) or longer.
● Alternative Cable Options: Upgrade to LMR240, LMR400, RG58, RG223, or 5D-FB based on your loss and flexibility requirements.
● Reverse Polarity (RP-TNC): Available for consumer Wi-Fi routers and IoT devices requiring RP connectors.
● Right-Angle N Female: 90° Right-Angle N Female available for specific panel-mount and enclosure routing needs.
● Alternative Connectors: Swap either end for SMA, BNC, FME, MCX, or MMCX to match your device ecosystem.
● Weatherproofing Kits: Pre-installed heat shrink boots, cold shrink tubing, and butyl tape for outdoor/tower deployments.
● Panel Mount Options: N Female bulkhead versions available for direct enclosure integration.
● Private Labeling: Custom laser engraving, branded polybags, and retail-ready packaging.
● Fast Turnaround: Samples ship in 3-5 days; bulk production in 10-15 days.
Q1: Why use a right-angle TNC connector instead of a straight one?
A: Right-angle connectors save 2-3 inches of clearance behind equipment panels and in tight enclosures. They eliminate the need for awkward cable bends that can stress the cable and degrade signal performance. They are essential for dense equipment racks, vehicle dashboards, and embedded systems.
Q2: What is the difference between N Female and N Male?
A: N Female (Jack/Receptacle) has a center receptacle and internal threads, designed to mate with N Male (which has a center pin and external threads). N Female is commonly found on antennas, amplifiers, and panel bulkheads, while N Male is typically on cables and equipment outputs.
Q3: Can LMR195 handle 2.4 GHz and 5 GHz Wi-Fi signals?
A: Yes! LMR195 is specifically designed for high-frequency performance. At 2.4 GHz, it has only ~16.5 dB/100ft attenuation (compared to ~25 dB for RG58). For Wi-Fi runs of 5-15 feet, LMR195 provides excellent signal delivery with minimal loss.
Q4: Is this cable suitable for outdoor use?
A: Yes! LMR195 features a UV-resistant PVC jacket, and both TNC and N-Type connectors are highly weather-resistant when properly mated. For permanent outdoor installations, we recommend adding heat shrink boots or self-amalgamating butyl tape to fully waterproof the connections.
Q5: Can this cable handle high power for ham radio transmit?
A: Yes. LMR195 can handle approximately 200-300W PEP at HF/VHF frequencies. For higher power applications (500W+), we recommend upgrading to LMR240 or LMR400 for better heat dissipation and lower loss.
Q6: Do you offer Reverse Polarity (RP-TNC) versions?
A: Yes! Many Wi-Fi routers and consumer devices use RP-TNC connectors. We manufacture both Standard and Reverse Polarity versions. Please specify your device requirements when ordering.
Q7: Can I order a mixed batch of different lengths and cable types?
A: Absolutely. We fully support mixed SKU orders. You can order various lengths and cable types in a single purchase order — ideal for distributors, system integrators, and Amazon/eBay sellers.
Need a space-saving, low-loss RF cable assembly that delivers professional-grade performance?
Partner with a verified RF cable assembly manufacturer that understands the nuances of right-angle connectors, low-loss coax, and precision termination. Whether you need 10 pieces for a prototype or 10,000 pieces for a nationwide deployment, we deliver exact specs, factory-direct pricing, and uncompromising quality.
👉 Request a Custom Quote & Free Sample Today!
● Email: minna_liao@bjdz.top
● WhatsApp / WeChat: +86 186 2128 3578
● Send us your cable length, quantity, and application — our RF engineers will reply with a detailed quote and datasheet within 12 hours!
