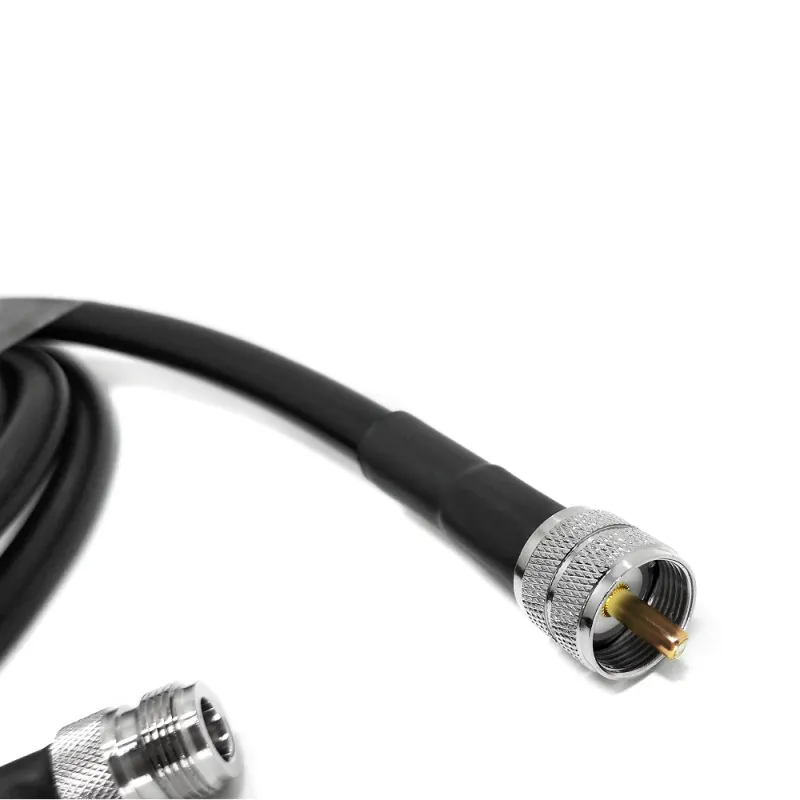

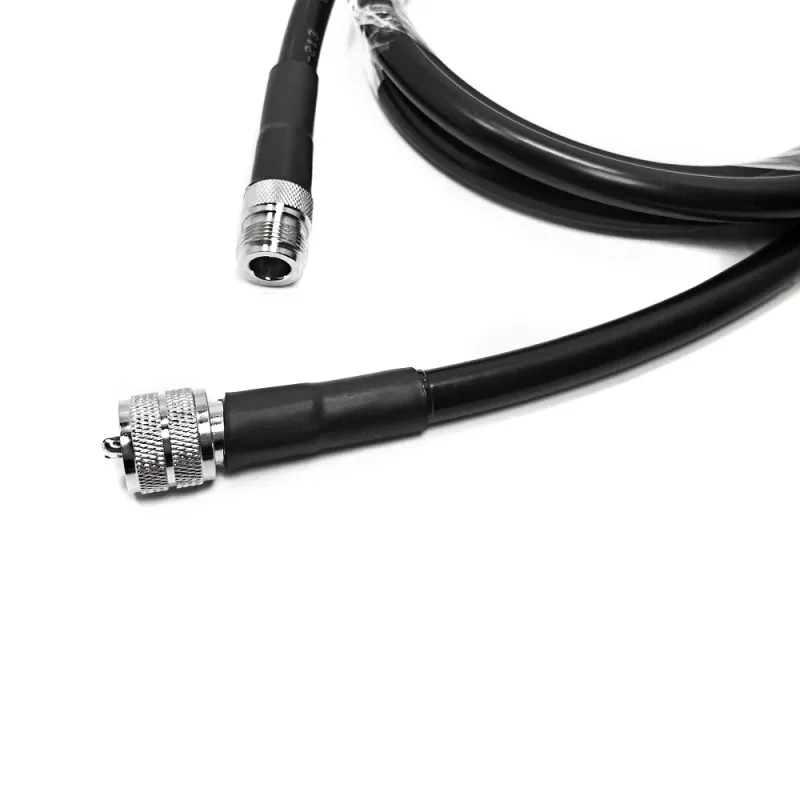

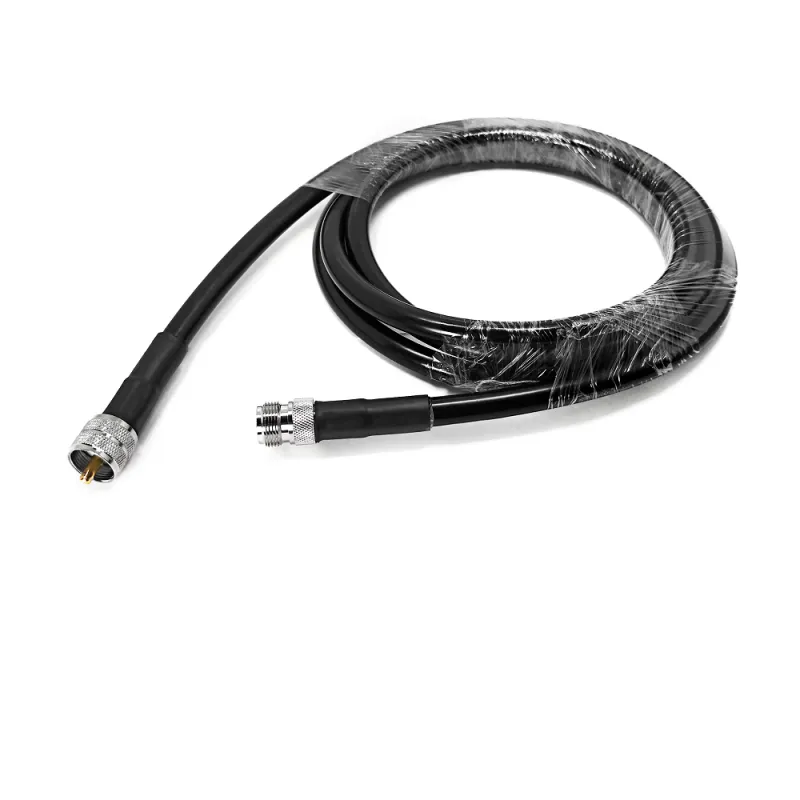

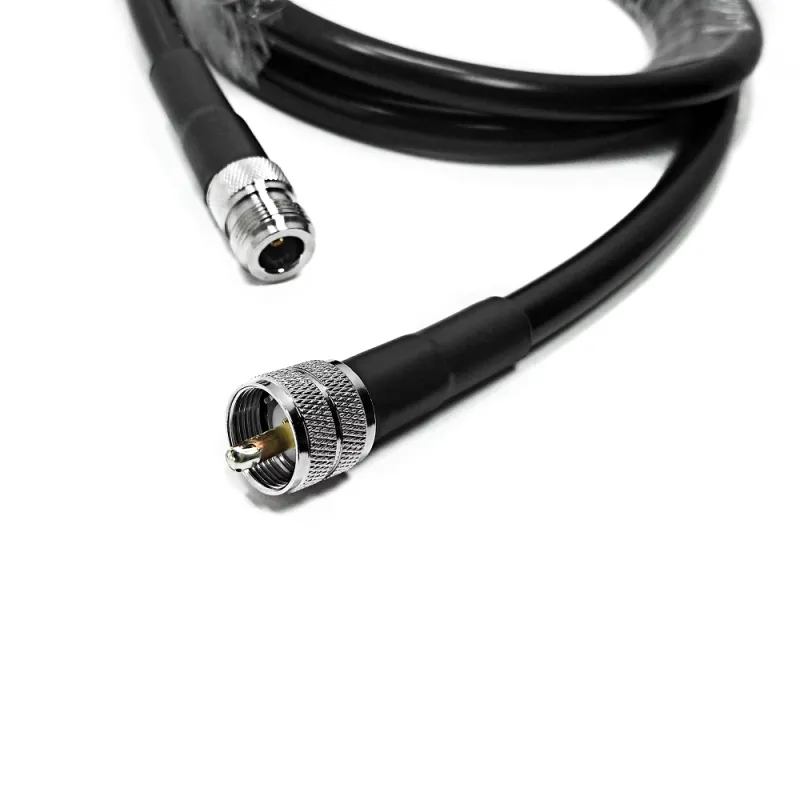

Extend and adapt your RF infrastructure with our premium N-Type Female Jack to UHF Male (PL-259) LMR400 coaxial cable assemblies. Designed for demanding applications requiring low signal loss over longer distances, this 50 Ohm jumper leverages the exceptional performance of LMR-400 ultra-low-loss coaxial cable — delivering superior attenuation characteristics compared to traditional RG8/RG213 cables. The N-Type Female connector provides a precision, weatherproof interface for test equipment, base stations, and antenna systems, while the UHF Male (PL-259) connects seamlessly to legacy radio equipment, antenna tuners, and HF/VHF transceivers. Every assembly is precision-crimped and 100% validated using Rohde & Schwarz and Anritsu Vector Network Analyzers (VNA) in our on-site RF lab. As a trusted supplier for Fortune 500 companies with a robust in-stock inventory, we deliver factory-direct quality, custom lengths, and rapid global fulfillment.
Parameter | Specification Details | ||
Connector A | N-Type Female (Straight, Jack, Crimp) | ||
Connector B | UHF Male (PL-259 Plug, Solder/Crimp) | ||
Impedance | 50 Ohms | ||
Cable Type | LMR-400 (Ultra-Low-Loss, Flexible Coax) | ||
Cable OD | 10.30mm (0.405 inch) | ||
Cable Length | Customizable (Standard: 1M, 2M, 3M, 5M, 10M, 15M, 20M) | ||
Frequency Range | DC – 6 GHz (N-Type) / DC – 300 MHz (UHF optimized) | ||
VSWR | ≤ 1.25 up to 1 GHz (Tested via Rohde & Schwarz VNA) | ||
Connector Material | Brass Body, Gold-Plated Center Contact | ||
Dielectric Material | Foam PE (FPE) Insulator | ||
Shielding | Aluminum Foil + Tinned Copper Braid (>90% Coverage) | ||
Temperature Range | -40°C to +85°C | ||
Jacket Material | PE (Polyethylene) — UV & Weather Resistant | ||
Termination Method | Precision Crimp (N-Type) / Solder-Crimp (PL-259) | ||
Certifications | CE, RoHS, REACH, FCC Compliant | ||
● Ultra-Low Signal Loss: LMR-400 cable delivers 40% less attenuation than RG213 at UHF frequencies, making it the definitive choice for long-run antenna feedlines, tower runs, and critical signal paths where every dB matters.
● Precision Interface Adaptation: Bridges N-Type Female ports (found on spectrum analyzers, base stations, and precision test equipment) to UHF PL-259 Male connections used in amateur radio, marine, and legacy antenna systems.

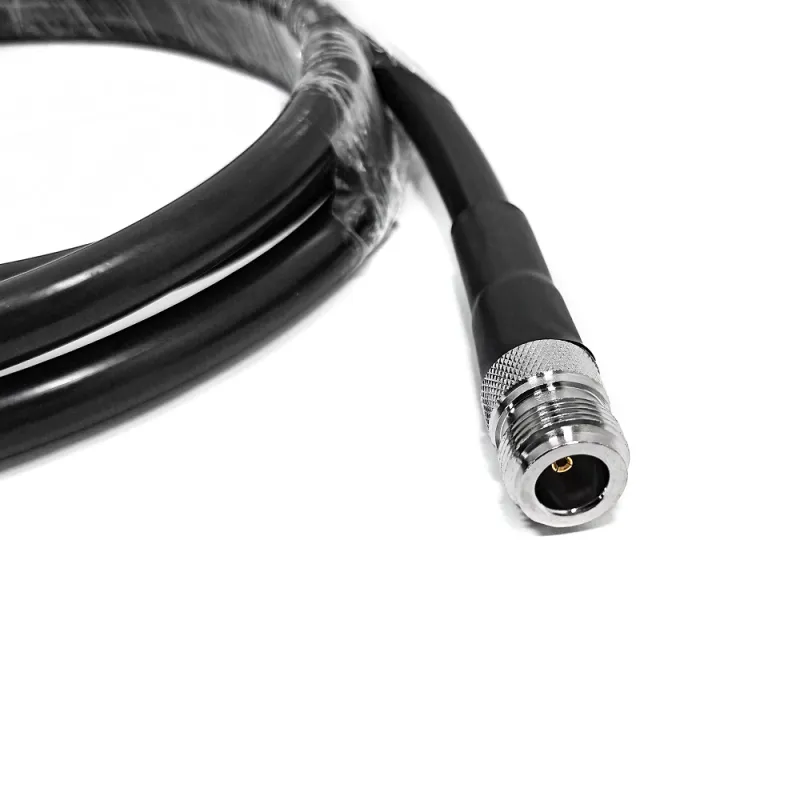

● Straight Crimp N-Type Female: The straight jack configuration provides a secure, weather-resistant threaded connection with excellent axial alignment, ideal for panel-mounted and inline applications.
● Dual-Shield Construction: LMR-400's bonded aluminum foil inner shield plus tinned copper braid outer shield provides >90% braid coverage and exceptional RF shielding effectiveness (>90 dB), eliminating signal interference in noisy environments.
● UV & Weather-Resistant PE Jacket: The black polyethylene outer jacket is specifically formulated for outdoor and direct-burial installations, resisting UV degradation, moisture, and temperature extremes for decades of reliable service.
● 100% VNA Lab Tested: Every production batch is rigorously validated using Rohde & Schwarz and Anritsu VNAs to guarantee strict 50 Ohm impedance matching, low VSWR, and consistent insertion loss across the full frequency range.
● In-Stock & Rapid Fulfillment: Standard N-Type Female to PL-259 Male configurations and raw LMR-400 cable are maintained in our in-stock inventory for immediate dispatch.
The Professional's Choice for Long-Run, Low-Loss RF Interconnects
In professional RF installations — from amateur radio base stations to commercial broadcast sites — signal loss over distance is the enemy. Traditional RG8 and RG213 cables simply cannot match the attenuation performance of modern LMR-400 coaxial cable. Our N-Type Female to UHF Male (PL-259) LMR-400 cable assemblies are engineered for installers and engineers who demand maximum signal integrity over extended cable runs.
Why LMR-400 Dominates Long-Run Applications
LMR-400 features a foam PE dielectric that reduces signal attenuation by up to 40% compared to solid-dielectric cables like RG213. At 400 MHz, LMR-400 exhibits only 2.2 dB loss per 100 feet — compared to 3.9 dB for RG213. This translates directly to stronger received signals, more effective transmitted power, and extended communication range. For tower installations, remote antenna systems, and any application where cable length exceeds 10 meters, LMR-400 is the undisputed industry standard.
Bridging Modern Precision with Legacy Reliability
The N-Type connector, originally designed for military applications, offers a precision 50 Ohm interface rated to 6 GHz with excellent weather sealing. The UHF PL-259 connector, while optimized for HF/VHF frequencies, remains the most widely deployed connector in amateur radio, marine communications, and CB installations worldwide. This cable assembly bridges these two worlds — enabling you to connect modern spectrum analyzers, vector network analyzers, and base station radios to established UHF antenna infrastructure without adapters or signal degradation.
Engineered for Field Durability
Manufactured by our senior RF engineering team with over 20 years of hands-on experience, these assemblies are built to survive harsh field conditions. The N-Type Female connector features a precision-machined brass body with gold-plated contacts for corrosion resistance. The PL-259 male connector is solder-crimped for maximum mechanical strength. The LMR-400 cable's PE jacket is UV-stabilized for direct outdoor exposure and can withstand temperature swings from -40°C to +85°C.
● Amateur Radio Base Stations: Connecting HF/VHF/UHF transceivers with N-Type outputs to external UHF antenna systems, antenna tuners, and tower-mounted amplifiers.
● Commercial Two-Way Radio: Extending repeater site feedlines from N-Type equipped repeaters to UHF antenna arrays on towers and rooftops.
● Broadcast & Transmission: Low-loss interconnection between exciters, amplifiers, and antenna systems in FM/TV broadcast installations.
● Test & Measurement: Creating low-loss extension cables from N-Type equipped spectrum analyzers, signal generators, and VNAs to UHF test fixtures.
● Marine Communications: Routing long cable runs from below-deck radios to masthead antennas on commercial vessels and yachts.
● Cellular & DAS: Distributed Antenna System (DAS) feedlines connecting N-Type equipped signal sources to UHF distribution points.
● Satellite Ground Stations: Low-loss feedlines from satellite receivers to outdoor antenna systems.
● Emergency & Public Safety: Reliable long-run antenna feedlines for police, fire, and EMS communication base stations.
Backed by our senior RF engineering team, we offer comprehensive customization to meet your exact project requirements:
● Custom Lengths: From 0.5M short jumpers to 100M+ long-run feedlines.
● Connector Variants: Upgrade N-Type to Right-Angle, Bulkhead, or Reverse Polarity. Upgrade PL-259 to N-Type Male, BNC, or TNC for different applications.
● Alternative Cables: Upgrade to LMR-600 (ultra-low-loss, 15mm OD) for extreme long runs, or downgrade to LMR-240 for more flexible, shorter installations.
● Specialized Jacketing: Plenum-rated (CMP) for in-building installations, or armored stainless steel braid for rodent and crush protection.
● Boots & Weatherproofing: Add heat-shrink boots, IP67 weatherproofing kits, or self-amalgamating tape pre-application.
● Low MOQ & Fast Lead Time: Sample orders (1-5 pcs) ship within 3 days; bulk orders typically ship within 10-15 days. Free samples available for qualified projects (freight collect).
Cable Type | OD (mm) | Attenuation @ 100MHz (dB/100ft) | Attenuation @ 400MHz (dB/100ft) | Attenuation @ 1GHz (dB/100ft) | Flexibility | Best For |
LMR-400 | 10.30 | 1.3 | 2.2 | 3.9 | Moderate | Long runs, tower feedlines, low-loss applications |
RG213 | 10.30 | 2.0 | 3.9 | 6.8 | Moderate | General-purpose HF/VHF, cost-sensitive installations |
RG8 | 10.30 | 2.1 | 4.2 | 7.5 | Moderate | Amateur radio, CB, legacy installations |
LMR-600 | 15.24 | 0.9 | 1.5 | 2.6 | Low | Ultra-long runs, commercial broadcast, extreme low-loss |
LMR-240 | 6.10 | 2.5 | 4.5 | 7.7 | High | Short to medium runs requiring flexibility |
RG58 | 4.95 | 4.3 | 8.4 | 14.5 | High | Short patch cables, portable equipment |
LMR-400 is the optimal balance of low loss, manageable diameter, and cost-effectiveness for most professional RF installations.
Your Trusted RF Manufacturing Partner
Established in 2011 in Zhenjiang, Jiangsu (China's renowned hub for RF connectors), our 1,500 sqm state-of-the-art manufacturing facility specializes in high-performance RF coaxial connectors and cable assemblies.
● Engineering Excellence: Our technical backbone consists of 3 senior RF engineers, each bringing over 20 years of industry expertise.
● World-Class Testing: We utilize industry-leading Rohde & Schwarz and Anritsu VNAs to guarantee signal integrity on every production batch.
● Global Reach & Trust: CE, RoHS, and FCC certified. We are a fully audited, trusted supplier for multiple Fortune 500 companies, exporting to North America, Europe, Latin America, and the Middle East.
● In-Stock Advantage: We maintain a strategic inventory of popular cables (LMR-400, LMR-600, RG213, RG58) and connectors to ensure rapid turnaround for your urgent needs.
Q1: Why choose LMR-400 over RG213 for my antenna feedline?
A: LMR-400 offers approximately 40% less signal loss than RG213 at UHF frequencies while maintaining the same 10.3mm outer diameter. This means stronger signals at your antenna, better receive sensitivity, and extended communication range — especially critical for runs over 10 meters or at frequencies above 100 MHz.
Q2: Can this cable handle high power from my amplifier?
A: Yes. LMR-400 is rated for up to 1,500W CW at HF frequencies and 500W+ at UHF. The foam PE dielectric and large center conductor handle high power levels efficiently with minimal heating. Always ensure proper ventilation and connector torque specifications for high-power applications.
Q3: Is the N-Type Female connector weatherproof for outdoor use?
A: Yes. The N-Type connector is inherently weather-resistant due to its threaded coupling and precision-machined surfaces. For long-term outdoor exposure, we recommend applying self-amalgamating weatherproofing tape over the mated connection to create a fully sealed, moisture-proof barrier.
Q4: Can I use this cable for WiFi or 2.4GHz applications?
A: While the N-Type connector is rated to 6 GHz, the UHF (PL-259) connector is optimized for frequencies below 300 MHz. For 2.4GHz WiFi applications, we recommend an N-Type to N-Type or N-Type to SMA cable assembly using LMR-400 to maintain full frequency performance.
Q5: Do you provide test reports with orders?
A: Yes. We can provide VSWR and insertion loss test reports generated by our Rohde & Schwarz and Anritsu VNAs for bulk orders upon request. Sample orders include basic QC verification.
Q6: What's the minimum bend radius for LMR-400?
A: LMR-400 has a minimum bend radius of 38mm (1.5 inches) for single bends and 102mm (4 inches) for repeated bends. This is more flexible than traditional RG8 cables, making it easier to route through conduit and around corners during installation.
