Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Conductor Material | Brass |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

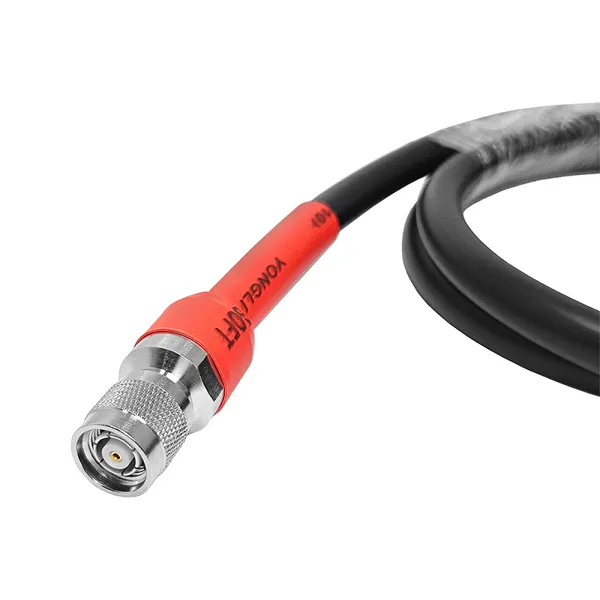

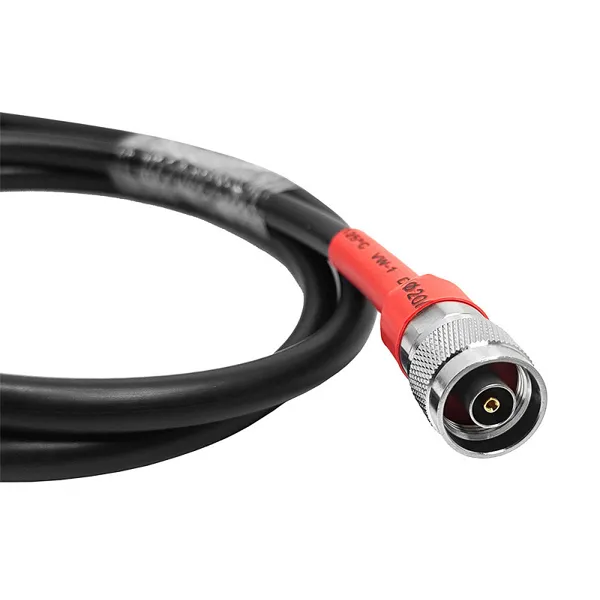

| Model Number | RP TNC Male Plug to RP N Type Male Plug RG213 |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Type 1 | N type |
| Type 2 | TNC type |
| Packaging | Bulk |
| Plating | Nickel |
| Material | Copper |
| Impedance | 50Ω |
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) |
| Frequency Range | DC-11GHz |
| Withstanding Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Durability | ≥ 500(cycles) |
| Vibration | 100m/S2 (10~500Hz), 10g |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation Resistance | ≥ 5000 MΩ |
| Center conductor retention force | 450N |
| Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Packaging and delivery | |
| Selling Units | Single item |
| Single package size | 12X12X1 cm |
| Single gross weight | 0.300 kg |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 14 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 20 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 499 pieces | $3.50 |
| 500 - 1999 pieces | $3.22 |
| 2000 - 4999 pieces | $2.98 |
| >= 5000 pieces | $2.20 |
1. Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
2. We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
