Customization: One of the prominent features of cable components is their strong adaptability. Customized cable components can meet specific requirements, allowing integration of various connectors, lengths, and shielding options. Cable components can be customized to meet specific requirements for integration.
Our company has a group of high-precision and advanced professional RF technology developers, and a deep understanding of RF technology theory and application is the core part of current technology.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |

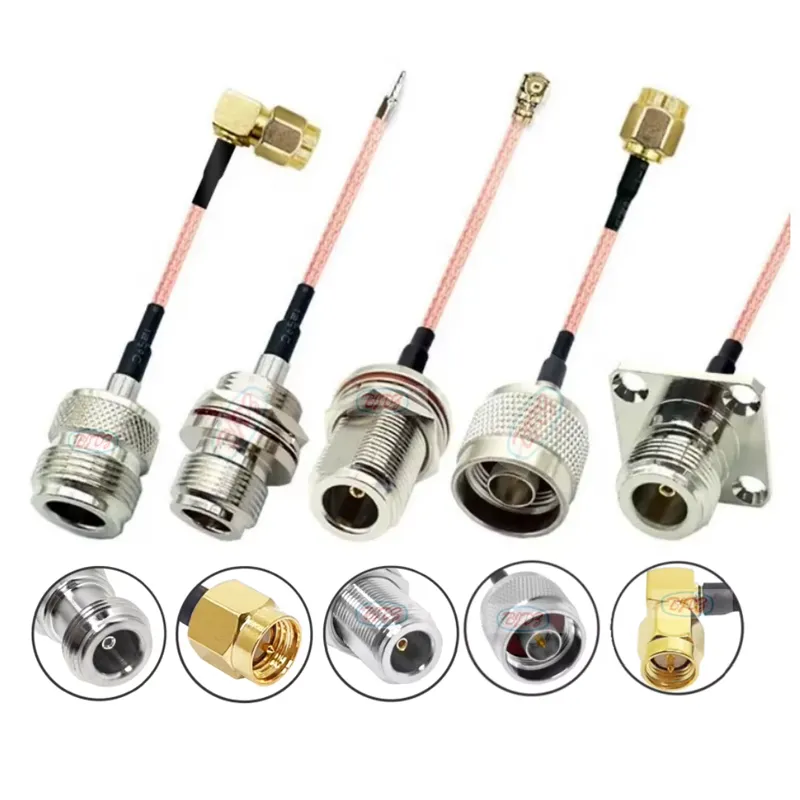

| Model Number | N Male to SMA Male for RG178 Cable Assembly |
| Cable Type | RG178 cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| Length | Custom |
| Frequency Range (MHz) | DC-18GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 100m/s2 (10~500Hz) |
| Withstand Voltage | 2500V r.m.s at sea level |
| Working Voltage | 1000Vr.m.s at sea level |
| Insertion Loss | ≤ 0.24dB/6GHz |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| Minimum order quantity: 5 pieces | US$0.50-1.59 |
Global Service Network: Experienced engineers provide 24/7 technical support, real-time consultation, and troubleshooting. Our products are widely used in cutting-edge applications including 5G base stations, satellite communications, and smart IoT, with customers worldwide, covering 30 countries and regions in Europe, the Americas, Asia Pacific, and other regions.
Quality Assurance: Strict adherence to ISO/IEC international standards ensures that products achieve industry-leading levels in weather resistance, signal stability, and other key indicators.
