Engineered for mission-critical environments, this Low-Loss RF Pigtail Coaxial Assembly combines the robust 4.3-10 Mini DIN interface with high-grade LMR-240 or RG8X cable. Designed as a durable extension or patch cord, it delivers exceptional signal integrity for 5G infrastructure, broadcast systems, and advanced test labs. Built to exceed industry standards, this assembly ensures reliable, low-interference connectivity in demanding RF applications.
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | 4.3-10 Male to 4.3/10 Male for LMR240 Pigtail Cable |
| Cable Type | LMR240 Pigtail Cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-16GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |

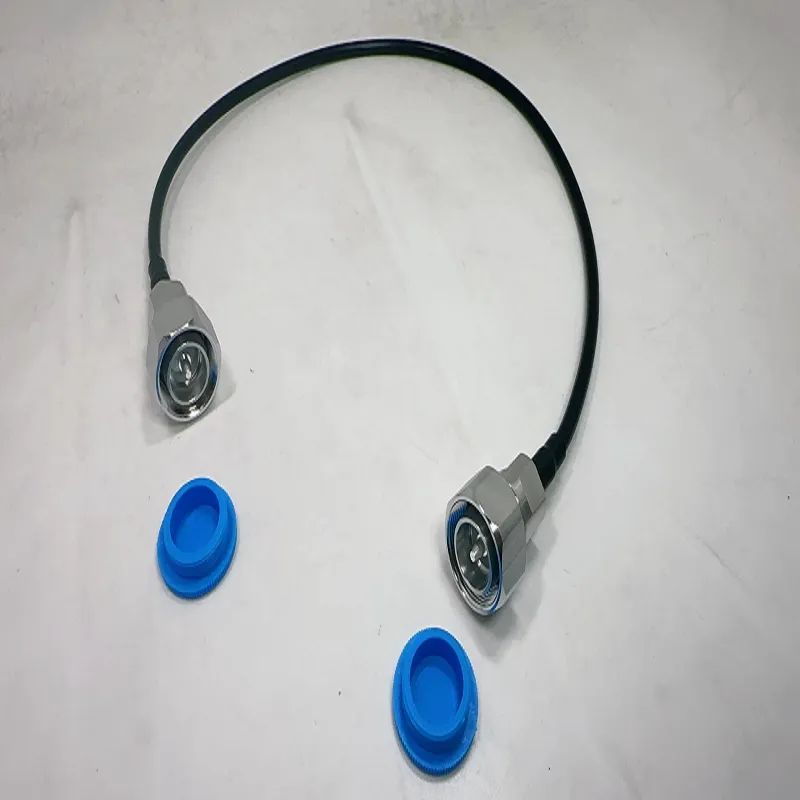

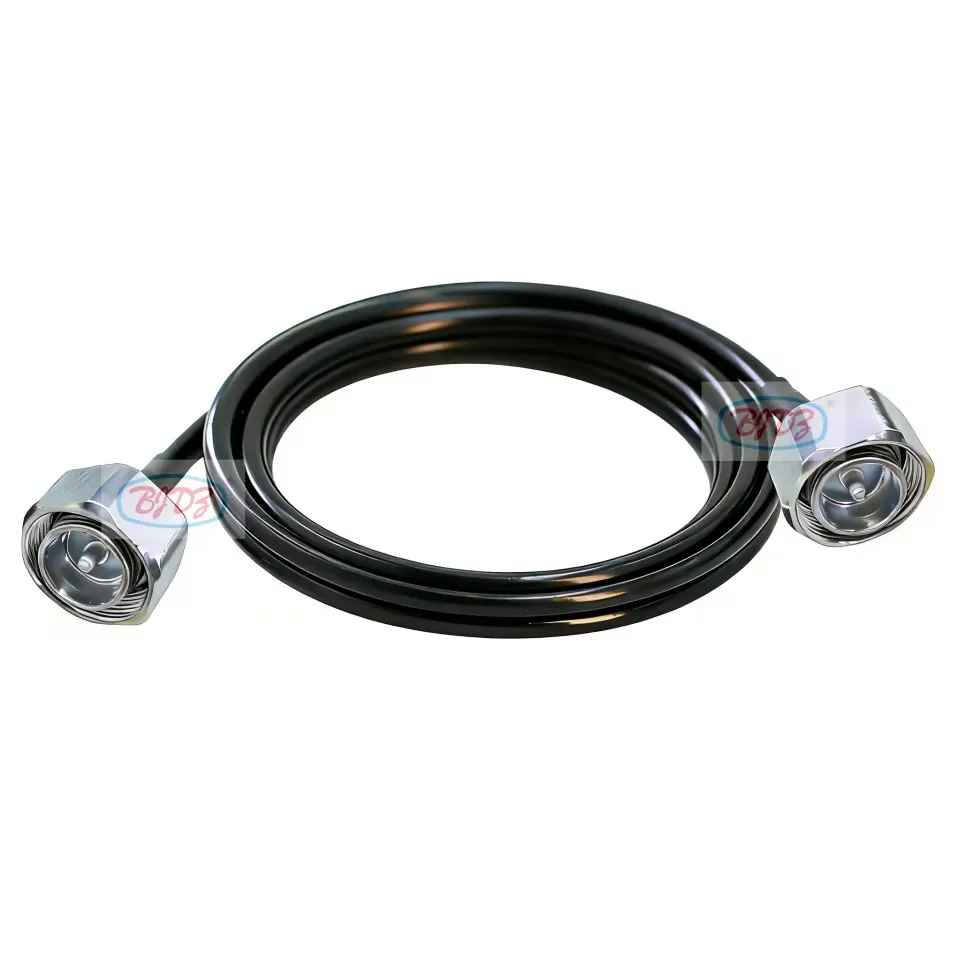

Connectors: 4.3-10 Mini DIN Male to 4.3-10 Mini DIN Male (Plug to Plug).
Cable Options: LMR-240, RG8X (Low Loss, 50 Ohms).
Certifications: CE, RoHS, FCC, UL94 (V0 Rated).
Performance: Low PIM, Low VSWR (≤1.15:1), High Shielding Effectiveness.
Durability: Corrosion-resistant gold/nickel plating; Flexible, UV-resistant jacket.
Customization: Available in tailored lengths and configurations (OEM Supported).
We prioritize safety, reliability, and global market access. This product proudly holds the following critical certifications:
CE Marking: Certified to meet European Union safety, health, and environmental protection standards (EMC & LVD Directives), allowing free movement within the EEA.
FCC Compliance: Tested and verified to meet United States Federal Communications Commission standards for electromagnetic compatibility (EMC), ensuring no harmful interference with other devices.
RoHS Directive: Fully compliant with EU restrictions on Hazardous Substances (Lead, Mercury, Cadmium, etc.), ensuring environmental safety and human health protection.
UL94 (V0): The cable jacket and connector materials have passed Underwriters Laboratories flammability testing, achieving the V0 rating for high resistance to burning.
Parameter | Detail |
Impedance | 50 Ohms |
Frequency Range | DC to 3 GHz (Varies by cable) |
Insertion Loss | Low attenuation (LMR-240 spec: ~0.22 dB/m @ 1 GHz) |
Operating Voltage | High withstanding voltage |
Materials | Brass (Plating: Gold/Nickel over Copper) |
Cable Jacket | PVC / LSZH (Low Smoke Zero Halogen options) |
5G Base Stations & DAS: Reliable indoor/outdoor connectivity.
Broadcast & Studio: High-fidelity signal transmission.
Military & Defense: Ruggedized field communication.
Test & Measurement: Precision lab environments.
Zhenjiang Binjiang Electronics Co., Ltd. is a National High-Tech Enterprise dedicated to RF excellence. Since 2010, we have served global giants in telecommunications and aerospace. Our ISO9001-certified factory utilizes digital manufacturing to ensure every connector meets the strict tolerances required for low-loss transmission.
With our comprehensive suite of certifications (CE, FCC, RoHS, UL94), you can deploy this pigtail assembly with confidence in Europe, North America, and beyond, knowing it meets the highest standards for safety and performance.
