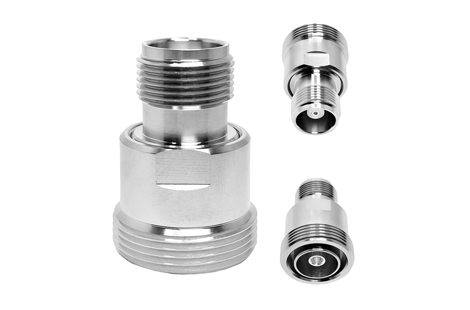

HN (High power N) connector is a coaxial connector designed specifically for high-power RF applications. They have high current capacity and large contact area, suitable for occasions requiring high-power transmission, and are widely used in electrical connection components in communication, medical, automotive and other fields.
HN (High power N) connector is a coaxial connector designed specifically for high-power RF applications. They have high current capacity and large contact area, suitable for occasions requiring high-power transmission, and are widely used in electrical connection components in communication, medical, automotive and other fields.
| Plating | Nickel/gold |
| Material | Brass |
| Insulator | PTFE/Plastic |
| ROHS | IS09001:2015 |
| Pin contact | Brass |
| Risilent contact | Beryllium copper |
| O-ring seling | 6146 silicon |
| Elastic contact | Tin brass with gold or sliver plated |
| Produce equipment | CNC |
| Connector type | smc male rg316 |
1. HN connector technical parameters, impedance matching: standard 50 Ω impedance, compatible with coaxial cables.
2. Installation method: Provide direct insertion and quick insertion locking structure (with a locking rod to prevent detachment).
3. Material and Durability: Metal shell shielding design, some models support high temperature environments (such as connectors for medical equipment).
4. Selection suggestion: Choose right angle connectors for high-frequency scenarios, and pay attention to matching the upper frequency limit with the cable; Attention should be paid to the withstand voltage level and shielding performance in high-pressure environments, and products with locking structures should be prioritized; In the field of automotive electronics, it is recommended to directly connect with brand suppliers to ensure compatibility and stability.
