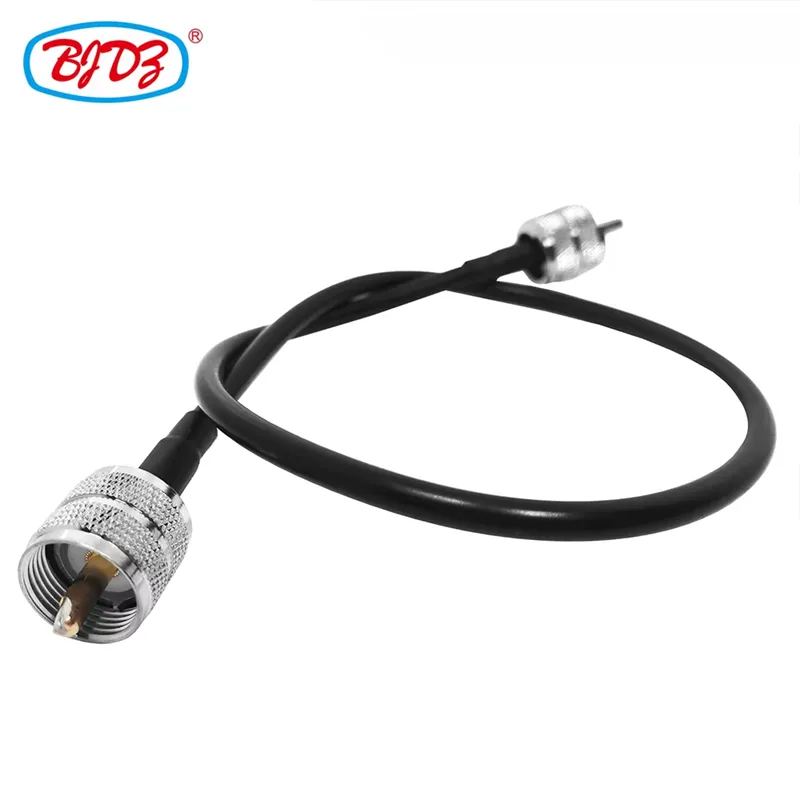

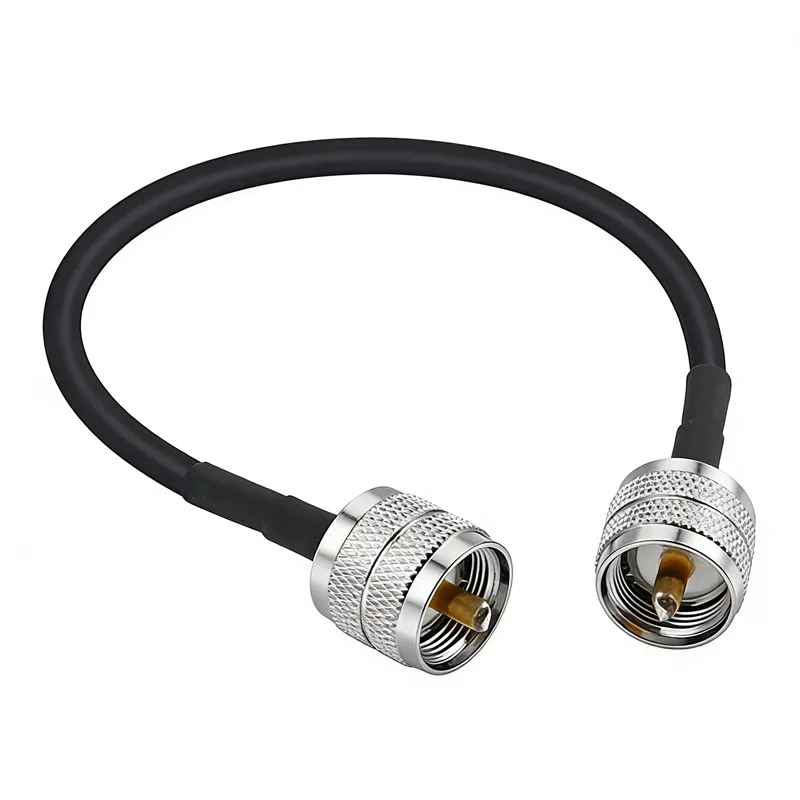

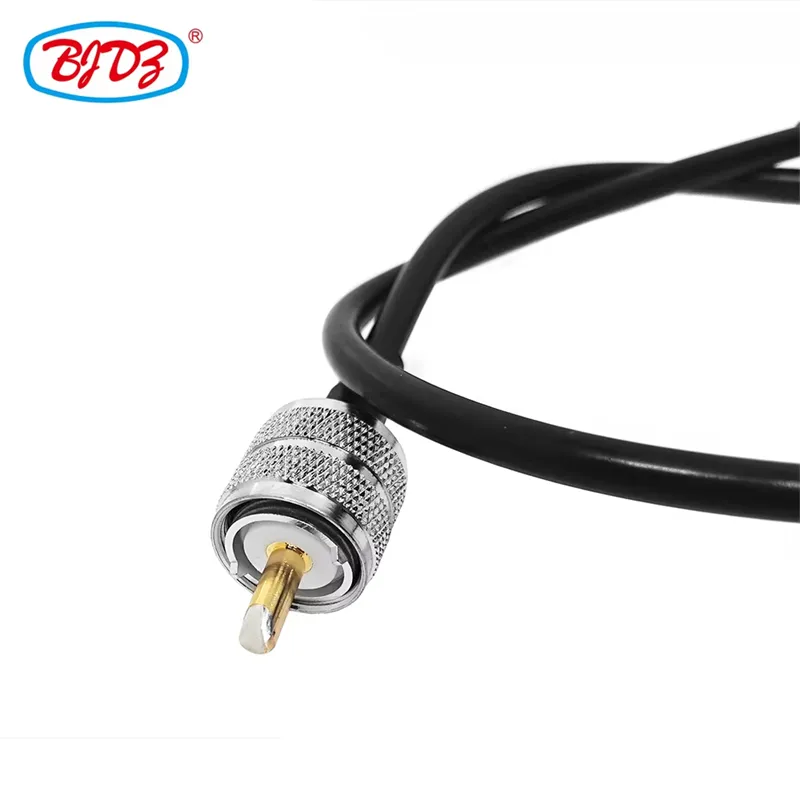

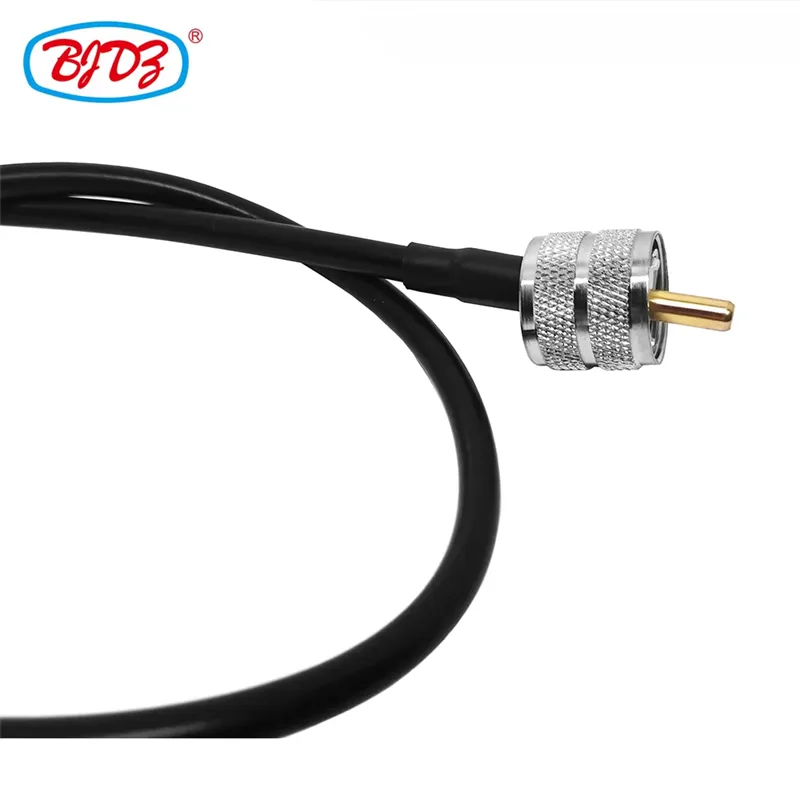

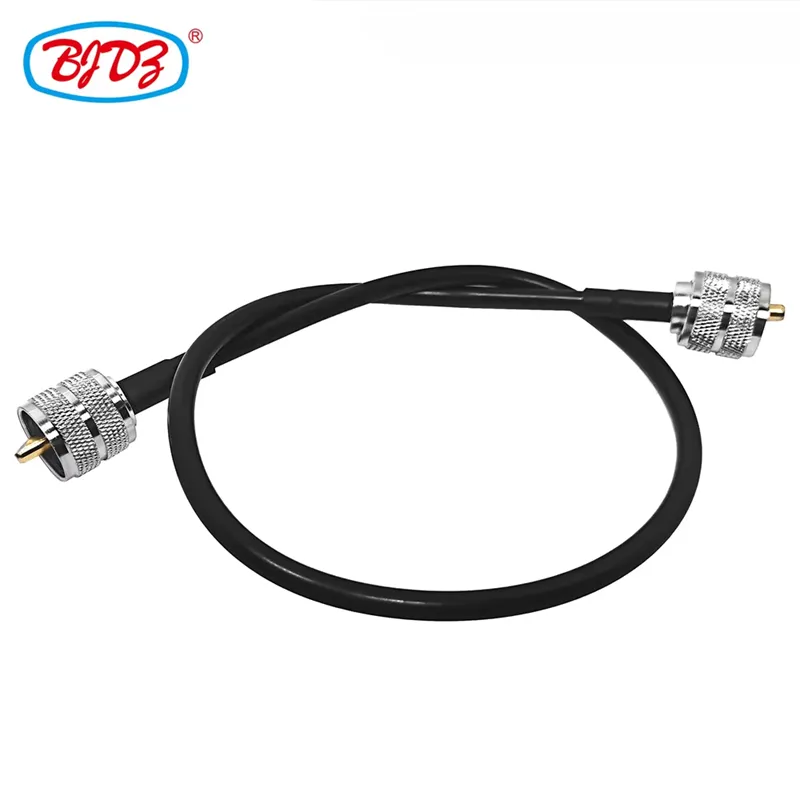

Our UHF Male (PL259) to UHF Male (PL259) RG58 pigtail cables are purpose-built for reliable, low-loss signal bridging in HF, VHF, and amateur radio systems. At 50cm, this is the ideal length for patch panels, internal equipment wiring, and tight-space interconnections. Built with industry-standard RG58/U 50 Ohm coaxial cable and precision-machined PL259 connectors, every assembly is crimp-terminated for maximum durability and 100% tested using Rohde & Schwarz and Anritsu Vector Network Analyzers (VNA) in our on-site RF lab. As a trusted supplier for Fortune 500 companies with a strong in-stock inventory, we deliver factory-direct quality, rapid prototyping, and global fulfillment.
Parameter | Specification Details | ||
Connector A | UHF Male (PL259) - Straight | ||
Connector B | UHF Male (PL259) - Straight | ||
Impedance | 50 Ohms | ||
Cable Type | RG58/U (Standard Flexible Coax) | ||
Cable OD | 4.95mm (0.195 inch) | ||
Cable Length | 50cm (19.7 inches) | ||
Frequency Range | DC – 1 GHz (Optimized for HF/VHF/UHF) | ||
VSWR | ≤ 1.30 up to 500 MHz (Tested via Rohde & Schwarz VNA) | ||
Connector Material | Nickel-Plated Brass Body / Gold-Plated Center Pin | ||
Dielectric Material | PE (Polyethylene) Insulator | ||
Shielding | Bare Copper Braid (>95% Coverage) | ||
Temperature Range | -40°C to +80°C | ||
Jacket Material | PVC (Flexible & Durable) | ||
Termination Method | Hex Crimp (Superior pull-force resistance) | ||
Certifications | CE, RoHS, REACH, FCC Compliant | ||
Cable Type | OD (mm) | Attenuation @ 30MHz (dB/100ft) | Attenuation @ 150MHz (dB/100ft) | Attenuation @ 450MHz (dB/100ft) | Flexibility | Best For |
RG58 | 4.95 | 1.3 | 4.3 | 8.4 | High | Standard HF/VHF, short patch cables |
LMR-195 | 4.95 | 0.7 | 2.7 | 5.1 | Moderate | Low-loss drop-in replacement for RG58 |
RG8X | 6.10 | 0.8 | 2.5 | 4.8 | Moderate | Medium power, better UHF performance |
RG213 | 10.29 | 0.6 | 1.8 | 3.6 | Low | High power, long outdoor runs |
LMR-400 | 10.29 | 0.4 | 1.3 | 2.5 | Low | Long runs, base station feed lines |
RG58 is the most cost-effective and flexible choice for short 50cm equipment interconnects and HF/VHF patch applications.
● Dual PL259 Male Configuration: Seamlessly connects two SO-239 (UHF Female) panel mounts, making it perfect for patch bays, antenna switches, transceiver-to-tuner links, and internal equipment wiring.
● Reliable RG58 Coax Core: With a 4.95mm outer diameter, solid copper center conductor, and >95% bare copper braid shielding, RG58 provides an excellent balance of flexibility, durability, and low attenuation for HF/VHF applications.
● Precision Crimp Termination: Our hex-crimp process creates a permanent, gas-tight, vibration-resistant bond between the cable braid and connector body — far superior to solder-only methods for long-term reliability.
● 100% VNA Lab Tested: Every batch is validated using Rohde & Schwarz and Anritsu VNAs to ensure strict impedance matching, low VSWR, and consistent insertion loss across the entire frequency band.
● Gold-Plated Center Pins: Ensures minimal contact resistance and extended mating cycle life, critical for test setups and frequently reconfigured patch panels.
● In-Stock & Ready to Ship: Standard 50cm lengths and other popular sizes are maintained in our in-stock inventory for immediate dispatch, minimizing your project lead times.
The Essential Patch Cable for Every RF Workbench & Ham Shack
The UHF PL259 connector is the undisputed workhorse of HF and VHF communications. Found on virtually every transceiver, antenna tuner, SWR meter, and coaxial switch, the PL259-to-PL259 jumper is one of the most essential cables in any RF installation. Our 50cm RG58 version hits the sweet spot — long enough to bridge adjacent equipment, yet short enough to keep your setup clean and organized.
Why Choose Our RG58 UHF Jumper?
Unlike mass-produced, untested cables from unknown sources, our assemblies are built in a controlled manufacturing environment by senior RF engineers with over 20 years of experience. Every cable undergoes hex-crimp termination using precision-calibrated tooling, followed by individual VNA testing on Rohde & Schwarz and Anritsu equipment. This means you receive a cable with verified 50 Ohm impedance, low VSWR, and reliable shielding — not a gamble.
Built for Real-World Demands
The RG58 cable features a flexible PVC jacket that routes easily through cable trays, behind equipment racks, and inside enclosures. The bare copper braid provides >95% shielding effectiveness, protecting your signals from external EMI/RFI interference. Whether you're wiring a competition contest station, a marine VHF system, or an industrial telemetry link, this cable delivers consistent performance.
● Amateur Radio Stations: Patching transceivers to antenna tuners, linear amplifiers, SWR meters, and coaxial switches.
● RF Patch Panels: Creating organized, labeled interconnections between SO-239 bulkhead connectors.
● Test & Measurement: Short jumpers for connecting signal sources to spectrum analyzers, oscilloscopes, and dummy loads.
● Marine Communications: Interconnecting VHF radios, AIS transponders, and antenna splitters below deck.
● Industrial Telemetry: Bridging sensors, data loggers, and wireless modules in SCADA and M2M systems.
● Antenna Systems: Internal wiring for antenna phasing harnesses, balun connections, and matching networks.
● Broadcast & Studio: Short-run audio and RF interconnects in transmission racks.
Backed by our senior RF engineering team with over 20 years of hands-on experience, we offer comprehensive customization to meet your exact project requirements:
● Custom Lengths: From 10cm micro-pigtails to 10M+ long runs.
● Connector Variants: Upgrade one or both ends to N-Type, BNC, SMA, or TNC (straight or right angle).
● Alternative Cables: LMR-195 or LMR-200 for lower loss, RG142 for high-temperature environments, or RG213 for higher power handling.
● Weatherproofing: IP67-rated heat shrink boots and adhesive-lined tubing for outdoor and marine deployments.
● Labeling & Tagging: Custom cable tags, color-coded heat shrink, and barcode labeling for easy identification.
● Low MOQ & Fast Lead Time: Sample orders (1-5 pcs) ship within 3 days; bulk orders typically ship within 10-15 days. Free samples available for qualified projects (freight collect).
Your Trusted RF Manufacturing Partner
Established in 2011 in Zhenjiang, Jiangsu (China's renowned hub for RF connectors), our 1,500 sqm state-of-the-art manufacturing facility specializes in high-performance RF coaxial connectors and cable assemblies.
● Engineering Excellence: Our technical backbone consists of 3 senior RF engineers, each bringing over 20 years of industry expertise.
● World-Class Testing: We utilize industry-leading Rohde & Schwarz and Anritsu VNAs to guarantee signal integrity on every production batch.
● Global Reach & Trust: CE, RoHS, and FCC certified. We are a fully audited, trusted supplier for multiple Fortune 500 companies, exporting to North America, Europe, and the Middle East.
● In-Stock Advantage: We maintain a strategic inventory of popular cables and connectors to ensure rapid turnaround for your urgent needs.
Q1: What is the maximum power rating for this RG58 cable?
A: RG58 is rated for moderate power levels — typically up to 300W at HF frequencies (30MHz), decreasing at higher frequencies. For high-power amplifiers (>500W) or long outdoor runs, we recommend upgrading to RG213 or LMR-400.
Q2: Is this cable suitable for outdoor use?
A: Standard RG58 with PVC jacket is designed for indoor use. For outdoor or UV-exposed installations, we offer versions with UV-resistant PE jackets and IP67 weatherproofing boots.
Q3: Can I use this to connect my transceiver to an antenna?
A: Yes, for short runs (under 3 meters) at HF/VHF frequencies. For longer runs or UHF applications, we recommend lower-loss cables like LMR-195 or LMR-400 to minimize signal attenuation.
Q4: How fast can I get a sample?
A: Because we keep RG58 cable and PL259 connectors in stock, we can assemble and ship standard 50cm samples within 3 business days.
Q5: Do you provide test reports with orders?
A: Yes. We can provide VSWR and insertion loss test reports generated by our Rohde & Schwarz and Anritsu VNAs for bulk orders upon request.
Q6: What is the difference between your crimp connectors and cheap solder-only versions?
A: Our hex-crimp connectors create a uniform, gas-tight mechanical bond that is highly resistant to vibration, thermal cycling, and pull-force. Solder-only connectors are prone to cold joints and can fail under mechanical stress.
Ready to upgrade your RF patch setup with factory-direct, lab-tested quality?
Whether you need a single 50cm prototype jumper or a 10,000-piece bulk order for your production line, our engineering team is ready to assist. With standard lengths in stock, we ship fast.
