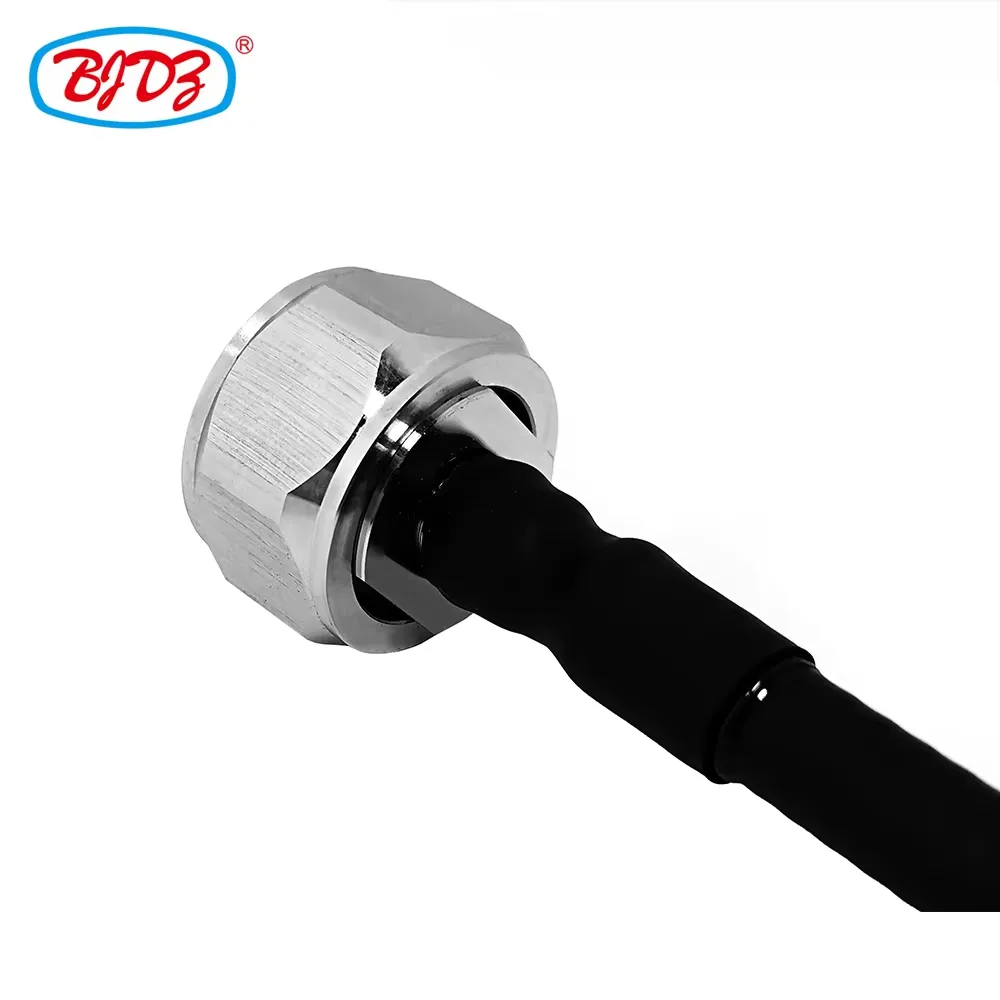

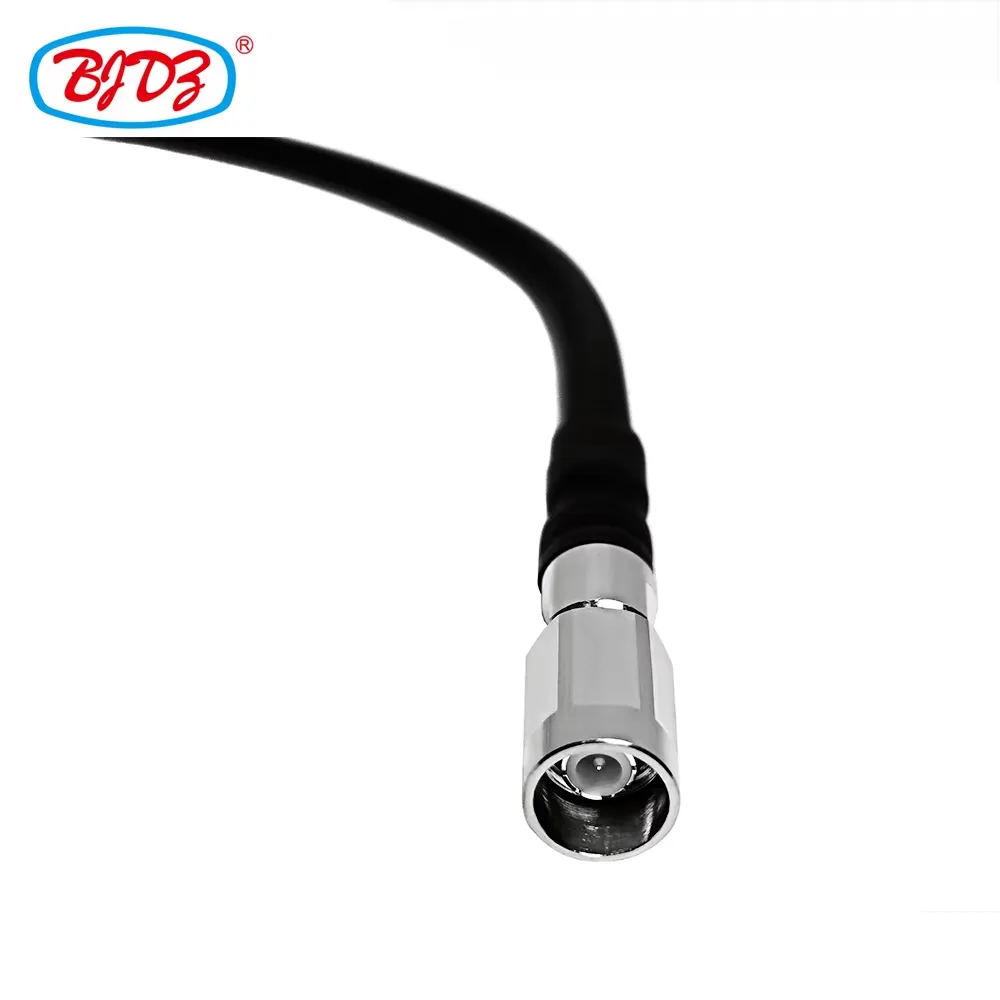

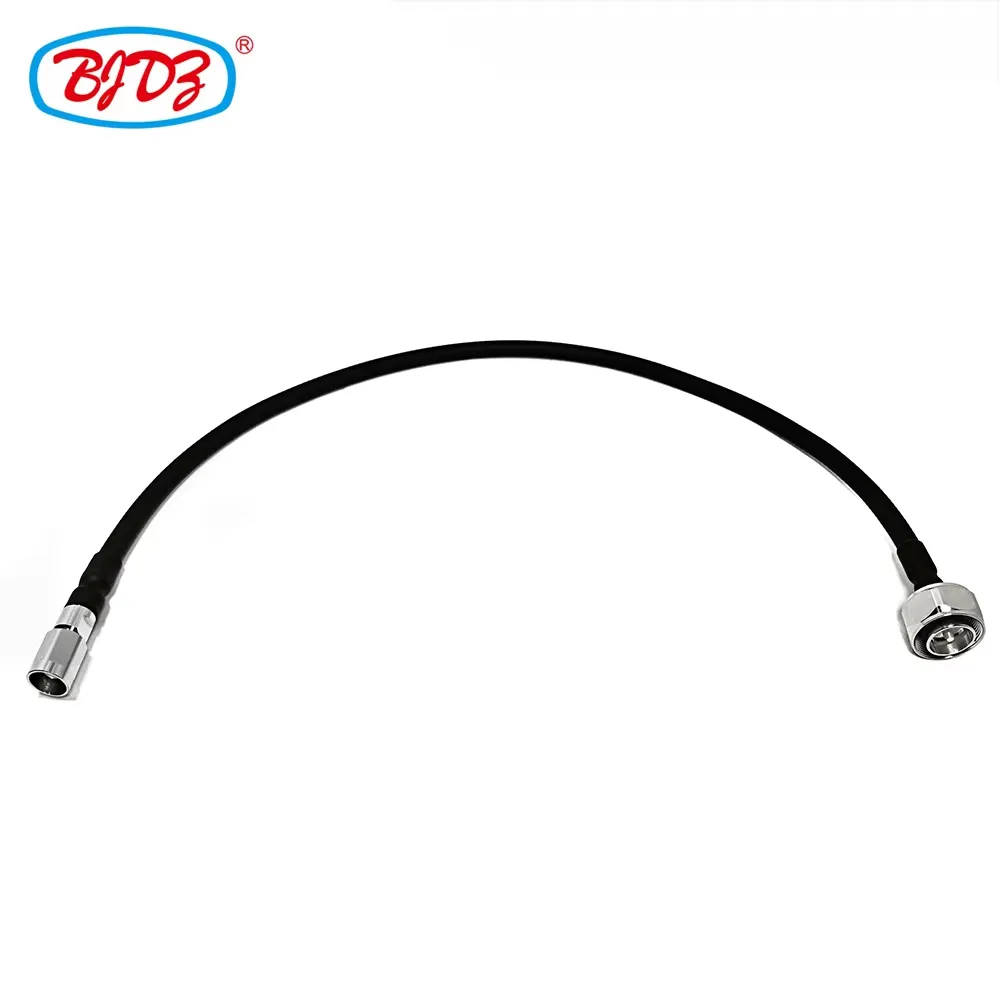

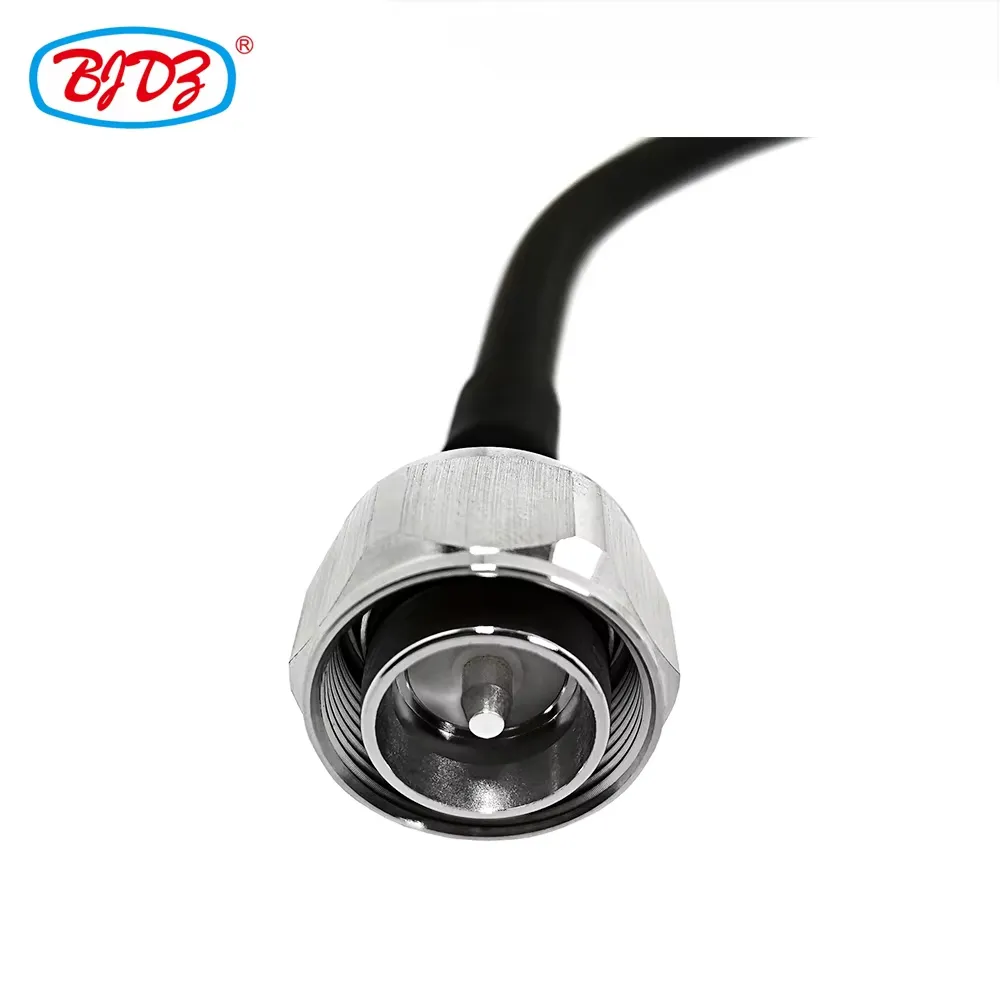

This specialized RF adapter is designed for critical communication applications requiring ultra-low passive intermodulation distortion (PIM) and exceptional signal integrity. It features a 4.3-10 Male Plug on one end and a NEX10 Male Plug on the other, ensuring seamless interoperability between different RF systems. Paired with Superflex Copper Corrugated Cable (1/4" diameter), this assembly offers unparalleled flexibility, durability, and low-loss transmission, making it ideal for high-frequency environments with stringent performance requirements
Key attributes
| Conductor Material | Copper |
| Insulation Material | PTFE |
| Jacket | PVC |
| Number of Conductors | 1 |
| Model Number | 4.3-10 Male to NEX10 Male for 1/4" superflex cable |
| Cable Type | 1/4" superflex cable |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |
| Plating | Nickel or Tri-Metal plated |
| Material | Copper |
| Insulator | PTFE/Plastic |
| Certificate | CE/FCC/ROHS/ISO9001:2015 |
| VSWR | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Frequency Range (MHz) | DC-11GHz |
| Max Voltage | 335V max |
| Temperature range | -55~+155°C (PE Cable -40~+85°C) |
| Input Impendence (ohm) | 50 |
| V.S.W.R | 1.15+0.02f |
| Vibration | 98m/S2 (10~2000Hz), 10g |
| Insertion Loss | ≤ 0.15dB/6GHz |
| Withstand Voltage | 1000V rms |
| Working Voltage | 335Vr.m.s at sea level |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | CenterContact ≤3mΩ Outer Contact ≤2.5mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 111X10X10 cm |
| Single gross weight | 1.00kg |
Lead time
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 10 |
| 1001 - 5000 | 15 |
| 5001 - 10000 | 25 |
| > 10000 | To be negotiated |
Price
| 5 - 499 pieces | US$2.98 |
| 500 - 4,999 pieces | US$2.58 |
| 5,000 - 9,999 pieces | US$2.25 |
| >= 10,000 pieces | US$2 |
Ultra-Low PIM Performance: Engineered to minimize passive intermodulation distortion, ensuring superior signal clarity and reliability (PIM ≤ -160 dBc typical).
Corrugated Cable Technology: The 1/4" Superflex Copper Corrugated Cable provides exceptional flexibility with low attenuation, ideal for tight bends and dynamic installations while maintaining signal integrity.
Precision-Matched Connectors: Both 4.3-10 and NEX10 connectors are precision-machined to ensure impedance continuity (50Ω standard) and optimal VSWR (≤1.15).
Robust & Corrosion-Resistant: Constructed with high-grade brass or stainless steel with nickel/gold plating, ensuring long-term durability in harsh outdoor environments (IP67-rated).
Wide Frequency Range: Designed for broadband performance, supporting frequencies up to 6 GHz (or customized ranges) with minimal signal degradation.
Industry-Compliant & Certified: Meets global quality standards (ISO9001, RoHS, REACH) and undergoes rigorous testing for mechanical strength and environmental resistance.
Ease of Installation: Threaded interfaces and robust locking mechanisms ensure secure connections, reducing the risk of signal leakage or disconnection.
5G/6G Base Stations: Connecting antennas to remote radio units (RRUs) in macro or small cell deployments.
Telecom Infrastructure: DAS systems, microwave links, and backhaul networks.
Defense & Aerospace: Radar systems, satellite communications, and telemetry equipment.
Industrial IoT: High-frequency data transmission in harsh industrial environments.
Test & Measurement: Laboratory equipment requiring stable, low-loss signal transmission.

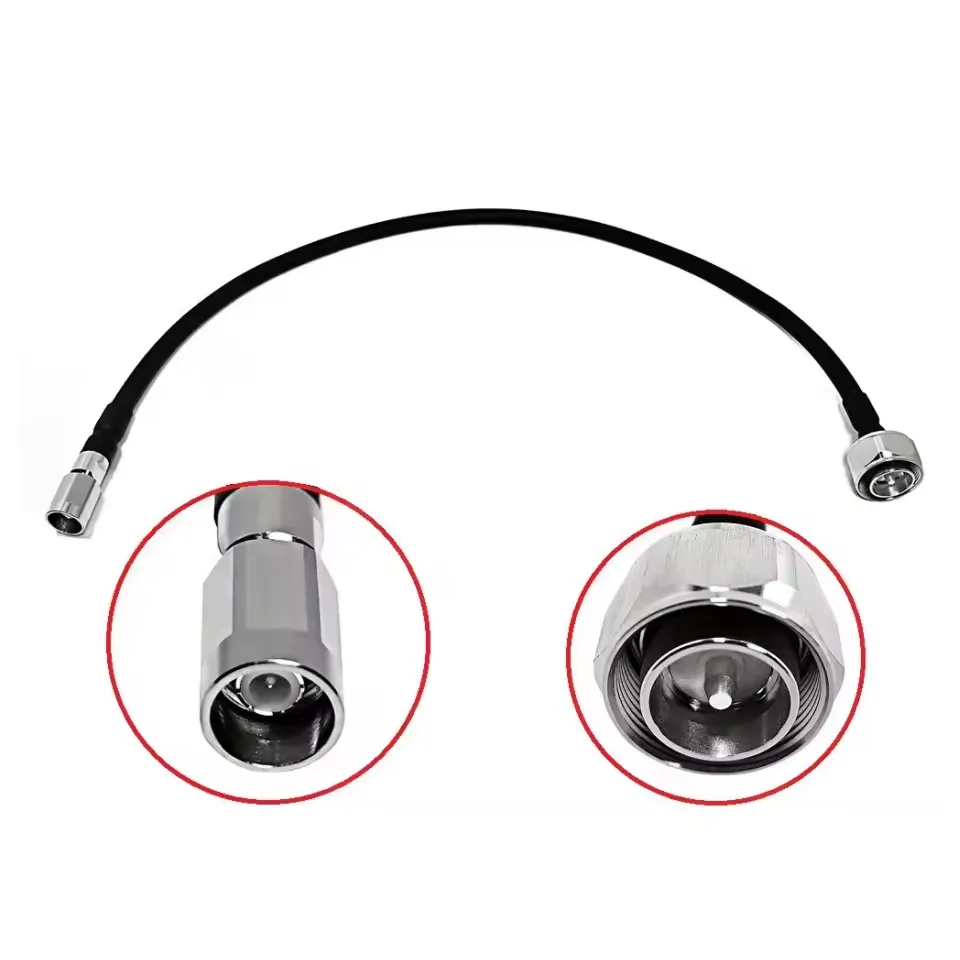

Connector Types: 4.3-10 Male → NEX10 Male
Cable Type: Superflex Copper Corrugated Cable (1/4" OD)
Impedance: 50Ω
Frequency Range: DC - 6 GHz (customizable)
PIM Rating: ≤ -160 dBc (typical)
VSWR: ≤1.15 (max.)
Operating Temperature: -55°C to +125°C
Material: Connector: Brass/Gold-Plated, Cable: Copper Corrugated with HDPE Jacket
Waterproof Rating: IP67
Mission-Critical Reliability: Ultra-low PIM ensures flawless signal transmission in critical telecom networks.
Flexibility & Durability: Corrugated cable design withstands repeated bending and extreme temperatures.
Global Compliance: Certified to meet international quality and safety standards.
Cost-Effectiveness: Optimized for long-term performance, reducing maintenance costs.
Customization Capabilities: Available in custom lengths and termination options.
Zhenjiang Binjiang Electronic Co., Ltd. — Your Trusted Partner for RF Excellence.
(SEO-Friendly Tags: Low PIM connectors, 4.3-10 to NEX10 adapter, Corrugated cable connectors, 5G connectors, Telecom adapters, IP67-rated RF components)
Connect with Confidence. Deliver on Performance.
Request a Quote or Customization Inquiry Today!
Contact us for bulk orders, technical specifications, or tailored solutions to meet your exact requirements.
Zhenjiang Binjiang Electronic Co., Ltd. — Enabling Global Connectivity with Innovation.
(Note: Specifications subject to verification. Contact us for detailed datasheets and certifications.)
