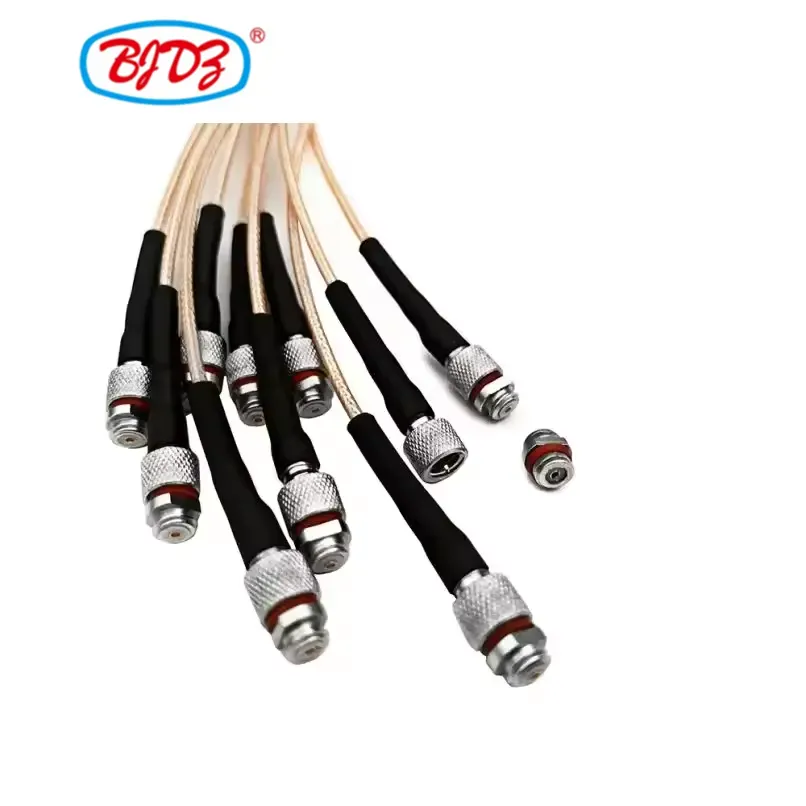

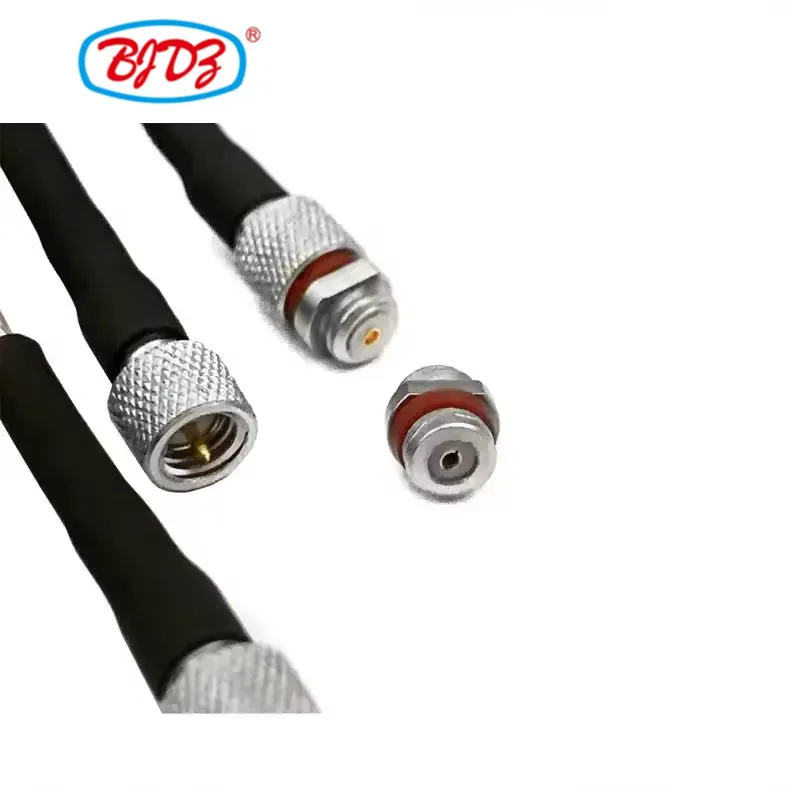

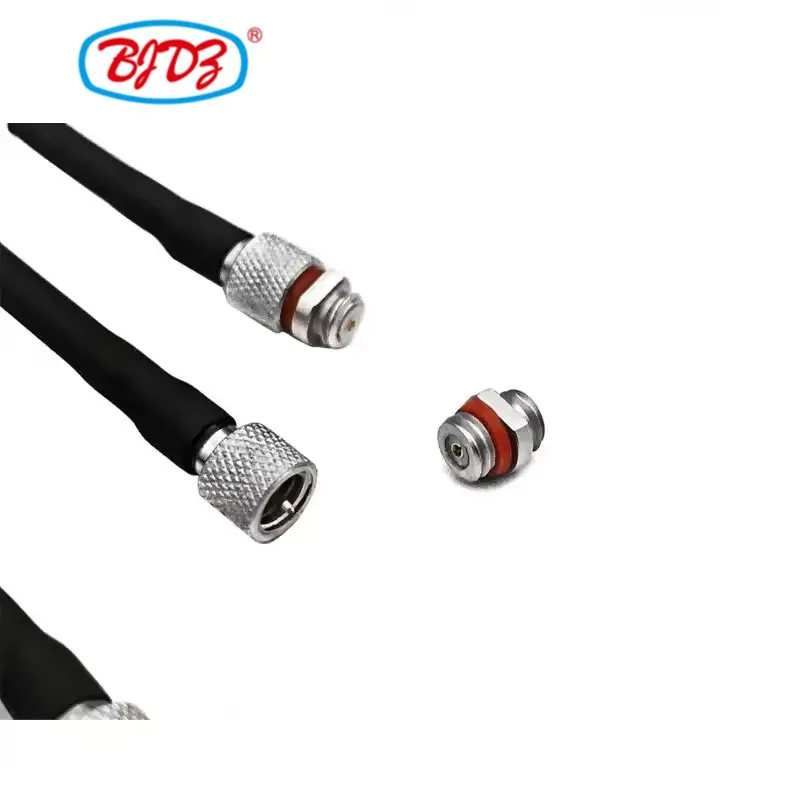

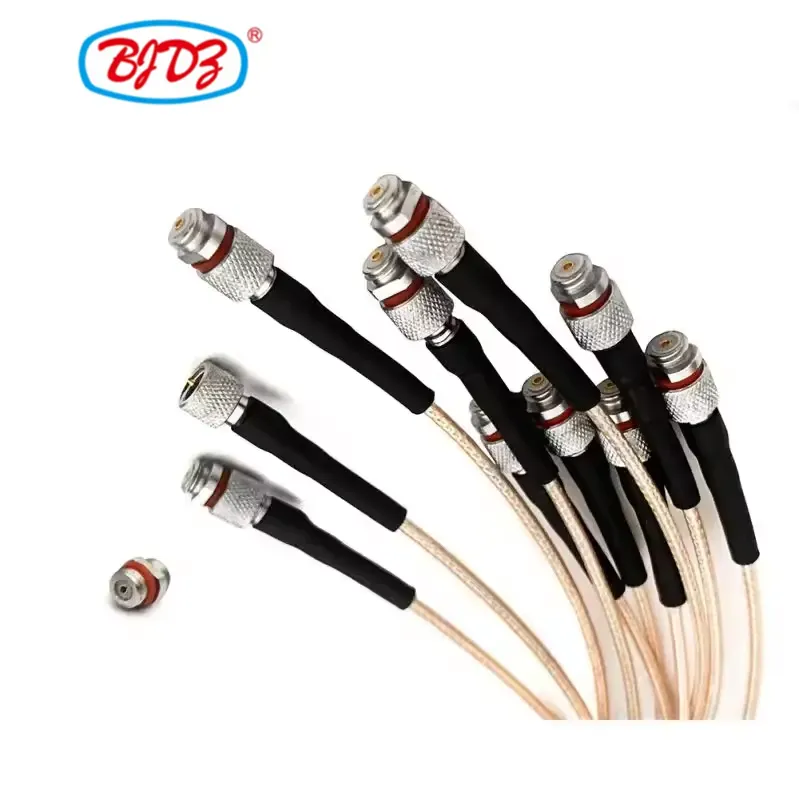

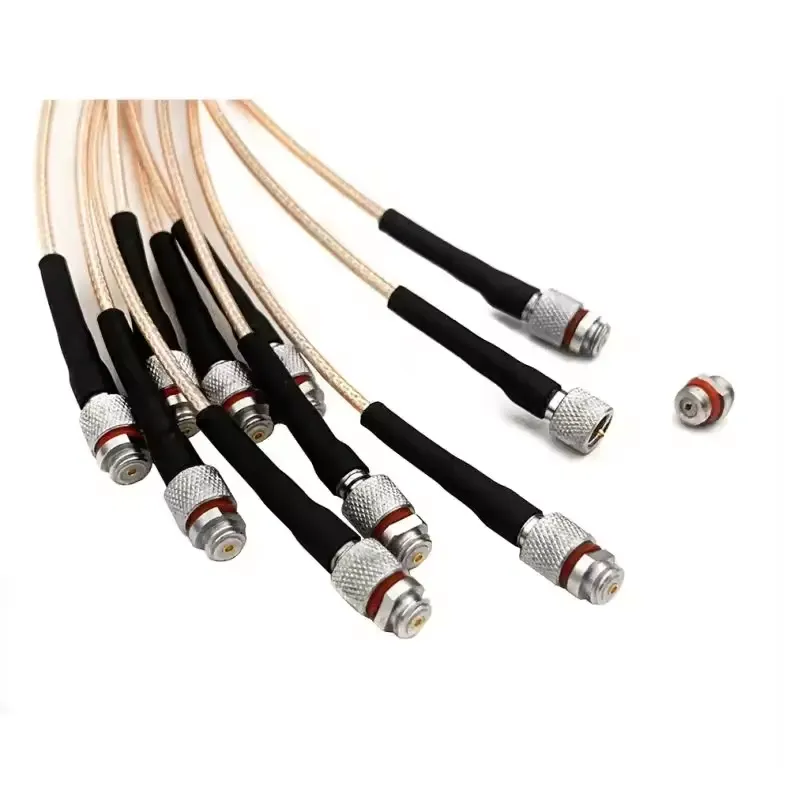

Space-Saving Design: Ultra-compact Microdot connector paired with 10-32 UNF threaded plug.
Signal Excellence: RG178 coaxial cable ensures low-loss transmission up to 3 GHz.
Harsh-Environment Ready: -55°C to +200°C temperature range with PTFE/FEP construction.
Customizable: Lengths, connectors, and shielding options available for OEM projects.
1. Miniaturization without Compromise
The Microdot connector enables seamless integration into high-density PCBs, medical probes, and aerospace electronics — maximizing space efficiency without sacrificing signal quality.
2. RG178 Coaxial Core — The Performance Backbone
50 Ohm Impedance Match for stable RF transmission.
PTFE Dielectric reduces attenuation, ideal for high-frequency applications.
Tinned Copper Braid Shielding blocks EMI/RFI interference.
3. Robust Build for Extreme Environments
FEP Jacket: Chemical-resistant, flexible, and rated for temperatures from -55°C to +200°C.
10-32 UNF Connector: Threaded locking mechanism ensures vibration-resistant connections.
4. ISO-Certified Manufacturing
Produced in a state-of-the-art facility with automated assembly and 100% electrical testing, ensuring military-grade reliability.
Who Needs This Cable?
Medical Engineers building portable diagnostic devices or endoscopes requiring tiny connectors.
Aerospace Tech Teams designing avionics systems with strict size and weight constraints.
Industrial Automation Experts connecting sensors in corrosive environments (e.g., chemical plants).
Telecom Engineers setting up high-frequency RF jumpers in base stations.
Case 1: Integrated into a next-gen laparoscopic camera for clear, interference-free video transmission.
Case 2: Powering a high-altitude UAV’s radar system in temperatures exceeding 150°C.
End-to-End Customization
Tailored solutions for cable length (10mm to 5m+), shielding density, and connector configurations.
Cost-Effective Precision
Balancing affordability with stringent quality control processes.
Rapid Prototyping
Custom samples delivered in 3–7 days, with bulk production ready in 2 weeks.
Technical Expertise
Dedicated engineering support for impedance matching, shielding optimization, and compatibility.
Parameter | Value / Description |
Connector A | Microdot Plug (Male) |
Connector B | 10-32 UNF Threaded Plug (M5 Equivalent) |
Cable Type | RG178 (50Ω, PTFE/FEP) |
Frequency Range | DC to 3 GHz |
Shielding | 95% Tinned Copper Braid |
Operating Temp | -55°C to +200°C |
Min. Bend Radius | 0.125" (3.18mm) |
Certifications | ISO 9001, RoHS, REACH |
Standard: Heat-sealed anti-static bags + shockproof cartons (MOQ: 50 units).
Custom Options: Laser-etched branding, barcoded labels, or vacuum-sealed packaging.
Lead Time: Samples in 3 days, bulk orders in 10–15 days.
Origin: Manufactured in a certified facility with global shipping capabilities.
Can this cable be used in MRI machines?
Yes. Its non-magnetic materials and high shielding meet MRI environment requirements.
What’s the minimum order quantity (MOQ) for custom lengths?
MOQ for custom cables is 100 units. Contactless inquiries welcome for special requests.
Are military specifications (MIL-DTL-17) met?
Yes, upon request. MIL-compliant versions include additional testing reports.
