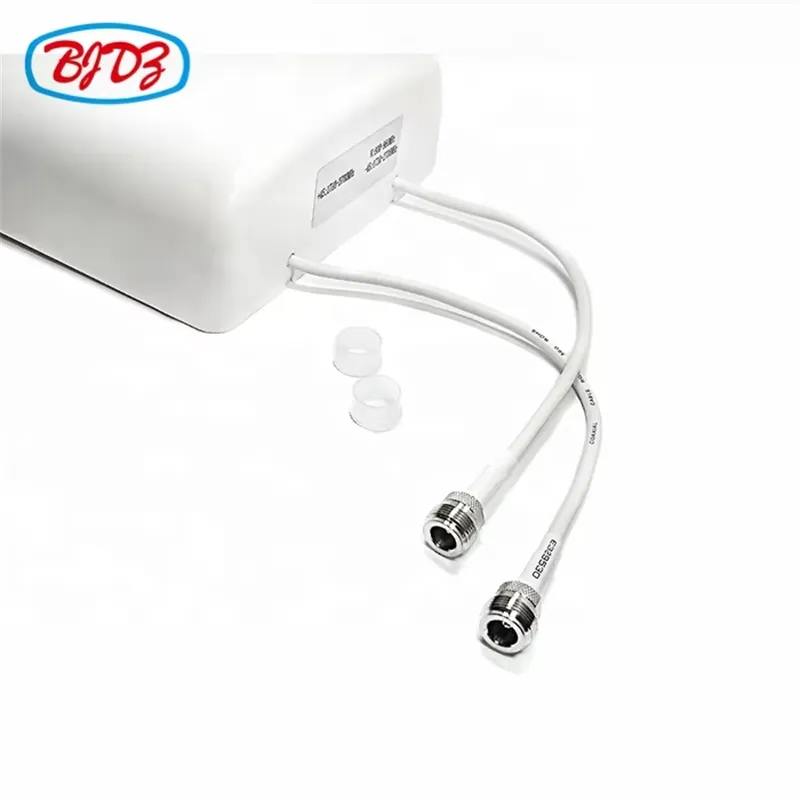

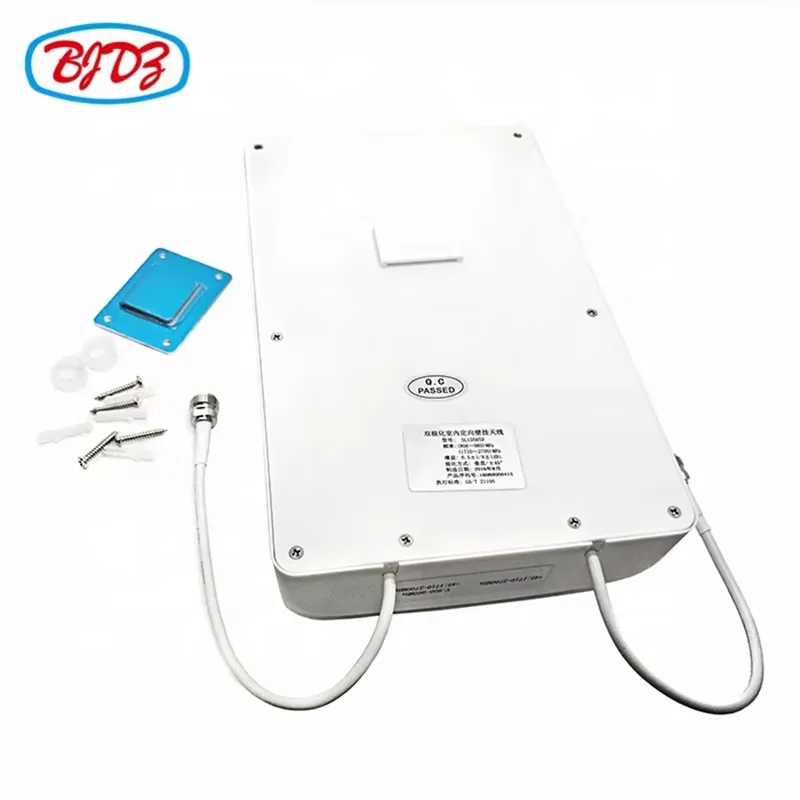

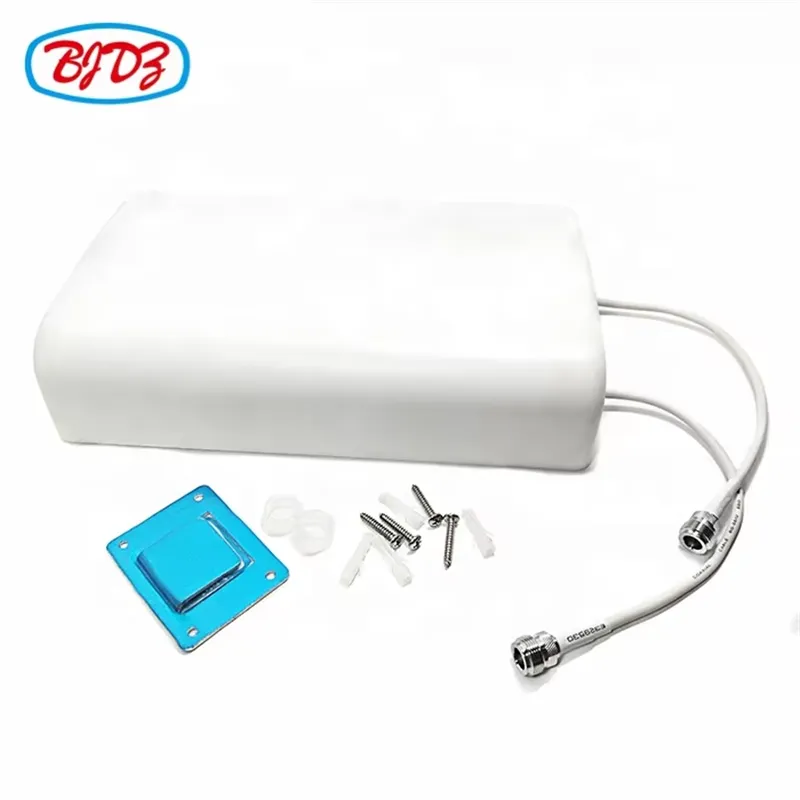

A high-performance indoor dual-band omnidirectional antenna engineered for wall-mount installation, designed to receive and boost mobile phone (2G/3G/4G/5G) and WiFi (2.4 GHz / 5 GHz) signals in homes, offices, and commercial spaces. The 360° horizontal radiation pattern ensures uniform coverage in all directions, while the sleek low-profile wall-mount design blends seamlessly into any interior décor.
Equipped with standard SMA connectors for plug-and-play integration with signal boosters, routers, repeaters, and cellular amplifiers. The ideal solution for eliminating dead zones and strengthening weak indoor reception.
Parameter | Specification | ||
Frequency Range | 698–960 MHz / 1710–2700 MHz / 2.4 GHz / 5.8 GHz (Dual-Band) | ||
Gain | 3–5 dBi (Low Band) / 5–7 dBi (High Band) / 3–5 dBi (WiFi) | ||
VSWR | ≤ 1.5 | ||
Impedance | 50 Ω | ||
Polarization | Vertical (Omni) | ||
Radiation Pattern | Omnidirectional (360° Horizontal) | ||
Beam Width (E-plane) | 60°–90° | ||
Beam Width (H-plane) | 360° (Omni) | ||
Max Input Power | 50 W | ||
Intermodulation | ≤ −150 dBc (2×43 dBm) | ||

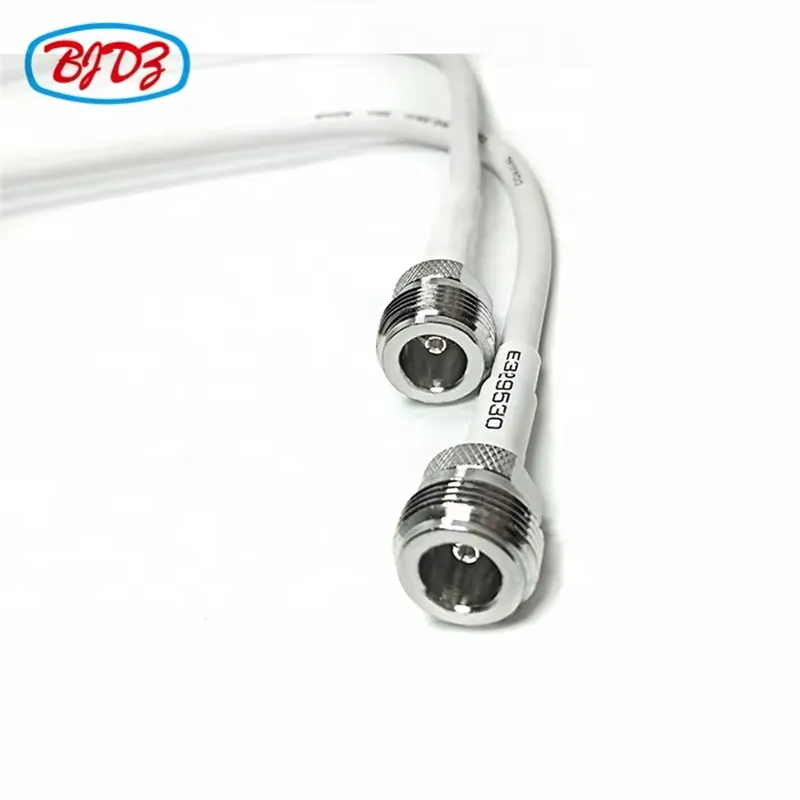

Connector | SMA Male / SMA Female / N-type / RP-SMA (configurable) | ||
Antenna Dimensions | Approx. Φ25 × 200 mm / Φ20 × 150 mm (varies by model) | ||
Mounting | Wall bracket / Screw / Adhesive / Snap-in | ||
Cable (optional) | RG58 / RG174 / LMR-200, 1–10 m | ||
Operating Temperature | −40 °C to +85 °C | ||
Humidity | 0–95 % RH (non-condensing) | ||
Weight | Approx. 80–150 g | ||
Color | White / Black / Custom | ||
RoHS / REACH | Compliant | ||
● Dual-Band / Multi-Band Coverage — Simultaneously covers cellular (700/800/900/1800/2100/2600 MHz) and WiFi (2.4/5.8 GHz) for universal indoor signal enhancement
● True 360° Omnidirectional Pattern — Uniform horizontal coverage eliminates directional alignment concerns; one antenna serves the entire room
● Wall-Mounted Low-Profile Design — Slim cylindrical or panel form factor mounts flush on walls, pillars, or partitions without obstructing space
● Standard SMA / N-Type Interface — Universal compatibility with all major signal boosters, amplifiers, routers, and repeaters
● High Power Handling (50 W) — Suitable for both receive and transmit paths in active booster systems
● Low Intermodulation — ≤ −150 dBc IMD ensures clean signal in multi-carrier environments
● Aesthetic Indoor Finish — White or black ABS radome blends with office and residential interiors
● Factory-Direct OEM Supply — Competitive volume pricing with consistent quality for booster and router manufacturers
Application | Description | ||
Mobile Phone Signal Booster | Indoor antenna for 2G/3G/4G/5G cellular amplifiers to eliminate dead zones | ||
WiFi Router / AP Coverage | Omni antenna for 2.4G/5.8G access points in offices, hotels, and homes | ||
DAS (Distributed Antenna System) | Wall-mount node in enterprise indoor coverage solutions | ||
Signal Repeater / Extender | Receive or retransmit antenna for in-building repeaters | ||
Smart Home Hub | Enhanced WiFi/Zigbee/Z-Wave link for central controllers | ||
Hotel / Hospital / Mall | Corridor and room-level uniform coverage for guests and staff | ||
Underground / Basement Coverage | Compensate for signal loss in shielded indoor environments | ||
Industrial IoT Gateway | 868/915 MHz omni link for sensor networks in warehouses | ||
Conference Room / Classroom | Uniform WiFi and cellular coverage for dense user environments | ||
Elevator / Stairwell | Compact wall-mount antenna for vertical coverage continuity | ||
● Fortune Global 500 Supply Chain Partner — Trusted antenna supplier for leading telecom and networking brands
● 80+ Countries Shipped — Proven logistics and quality assurance across consumer, enterprise, and carrier markets
● In-House RF Lab — Full anechoic chamber testing: gain, pattern, VSWR, IMD, and isolation on every batch
● Fast Sampling — 3–5 business day turnaround for custom frequency, size, or mounting adjustments
● Volume Flexibility — From 100-piece evaluation runs to 1M+ annual OEM/ODM contracts
● 24/7 Technical Support — RF engineers available for site survey guidance, antenna placement, and cable routing optimization
Item | Options | ||
Frequency | 698–960 / 1710–2700 / 2.4G / 5.8G / Dual / Tri-band / Custom | ||
Gain | 3 / 5 / 7 / 9 dBi | ||
Connector | SMA / RP-SMA / N-type / TNC / F-type / Custom | ||
Mounting | Wall bracket / Screw / Adhesive / Snap-in / Pole clamp | ||
Cable | RG58 / RG174 / LMR-200 / LMR-400 / Custom length (1–20 m) | ||
Color | White / Black / Gray / Custom | ||
Radome | ABS / PC / Aluminum / UV-stabilized | ||
Dimensions | Φ20×150 / Φ25×200 / Φ30×250 / Custom | ||
Packaging | Bulk / Individual box / Custom retail packaging | ||
Branding | OEM logo / Custom label / Neutral / Private label | ||
Certification | CE / FCC / RoHS / REACH / Custom | ||
Q1: What is the difference between a wall-mount omni antenna and a ceiling-mount omni antenna?
A: Functionally they are very similar — both provide 360° horizontal coverage. The main difference is mounting orientation and installation location. Ceiling-mount antennas point downward from the ceiling; wall-mount antennas attach vertically to walls or pillars. Choose wall-mount when ceiling access is limited or for corridor/room-level coverage.
Q2: Can one antenna cover both mobile phone and WiFi signals?
A: Yes. Our dual-band / multi-band models cover 698–2700 MHz (cellular) and 2.4/5.8 GHz (WiFi) simultaneously. A single wall-mount unit can serve both cellular boosters and WiFi access points.
Q3: How many antennas do I need for my space?
A: As a general rule, one 5 dBi omni antenna covers approximately 200–500 m² in open space, or 2–4 rooms with walls. For larger areas or multi-floor buildings, multiple antennas connected via a DAS or splitter are recommended. Our engineers can provide a free coverage plan.
Q4: What cable should I use between the antenna and the booster/router?
A: For runs under 5 m, RG58 or LMR-200 is sufficient. For runs over 5 m, we recommend LMR-200 or LMR-400 to minimize loss. At 2.6 GHz, RG58 loses ~1 dB/m; LMR-200 loses ~0.4 dB/m.
Q5: Is this antenna compatible with all signal boosters?
A: Yes. The standard SMA or N-type connector is universally compatible with all major booster brands (weBoost, SureCall, HiBoost, Wilson, etc.). Adapters are available for non-standard ports.
Q6: Can the antenna be painted to match interior décor?
A: The ABS radome can be painted with non-metallic, non-conductive paint without significantly affecting RF performance. We also offer custom colors at MOQ 500+ pieces.
Q7: What is the MOQ and lead time?
A: Stock models (white, SMA, standard size) ship within 3–5 business days with no MOQ. Custom OEM orders (frequency, color, branding, cable) require 500–1000 pieces MOQ with 10–20 business day lead time.
Q8: Do you provide installation guidance or technical support?
A: Yes. We provide mounting templates, recommended cable routing diagrams, and placement guidelines. Our RF engineers offer 24/7 remote support for integration, tuning, and troubleshooting.
Uniform indoor coverage, sleek wall-mount design, factory-direct pricing — the complete signal booster antenna solution for homes, offices, and commercial buildings.
