Organization: Cable components help achieve clean and orderly wiring, simplify maintenance and troubleshooting work, and save time and resources.
Team R&D Strength: The company integrates independent product technology development and application, attaches importance to independent intellectual property rights, always adheres to independent R&D and continuous innovation, continuously strengthens its own technology investment, and provides professional and reliable products and supporting services for the RF communication industry.
| Key attributes | |
| Model Number | NF-4H-SMAM-RG141 |
| Brand Name | BJDZ |
| Place of Origin | Jiangsu, China |
| Application | RF |

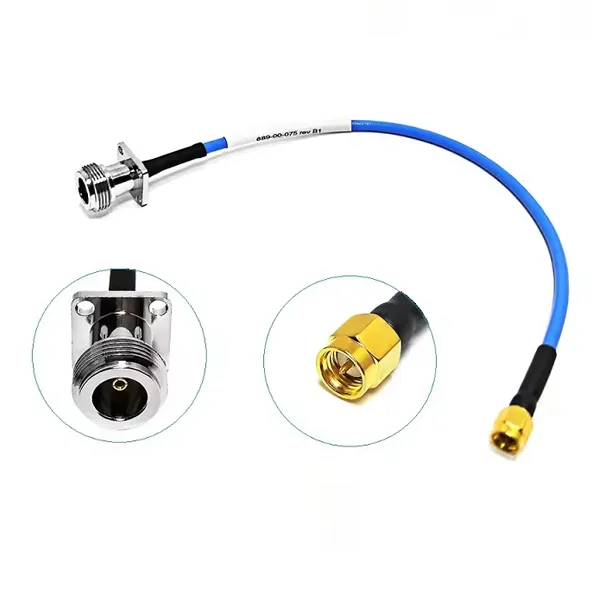

| Product name | N Female to SMA Male for RG141 Cable Assembly |
| Color | Blue |
| Length | Customized Length |
| Connector 1 | N type |
| Connector 2 | SMA type |
| Express | DHL FEDEX UPS TNT |
| Wire | RG141 |
| Certification | ISO9001/ROSH/CE/FCC |
| Service | OEM ODM Accept |
| Delivery time | 3-10days |
| MOQ | 1 Piece |
| Frequency Range (MHz) | DC-3GHz |
| Max Voltage | 335V max |
| Input Impendence (ohm) | 50 |
| V.S.W.R | ≤1.20+0.003f |
| Withstand Voltage | 1000V rms |
| Insulation resistance | ≥5000mΩ |
| Max Input Power (w) | 50 |
| Contact resistance | Center Contact ≤3mΩ |
| Material | Brass/Gold Plated |
| Center conductor retention force | 450N |
| Durability | ≥ 500(cycles) |
| Contact resistance | Center Contact ≤1mΩ Outer Contact ≤1mΩ |
| Voltage Standing Wave Ratio | Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz |
| Lead time | |
| Quantity (pieces) | Lead time (days) |
| 1 - 1000 | 7 |
| 1001 - 5000 | 10 |
| 5001 - 10000 | 20 |
| > 10000 | To be negotiated |
| Price | |
| 5 - 499 pieces | $1.88 |
| 500 - 999 pieces | $1.64 |
| >= 1000 pieces | $1.58 |
1. Precision CNC machining: Using 4-axis and 5-axis CNC machine tools, precision machining can be carried out according to the requirements of different structures, ensuring the dual guarantee of mechanical and electrical performance of the product.
2. Binjiang Electronics is a high-tech private company that integrates research and development, production, and sales. By continuously innovating core technologies and leading advantages in segmented fields, we focus on providing a full range of signal interconnection products, solutions, and services to core customers in multiple industries and fields worldwide.
