Precision-Matched RF Adapter for Critical Connectivity

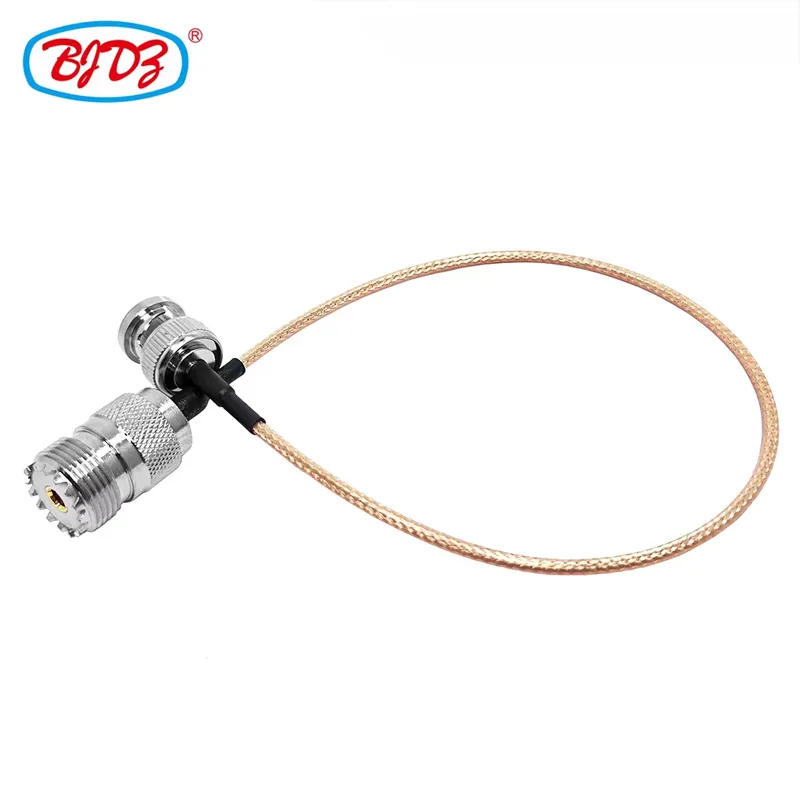

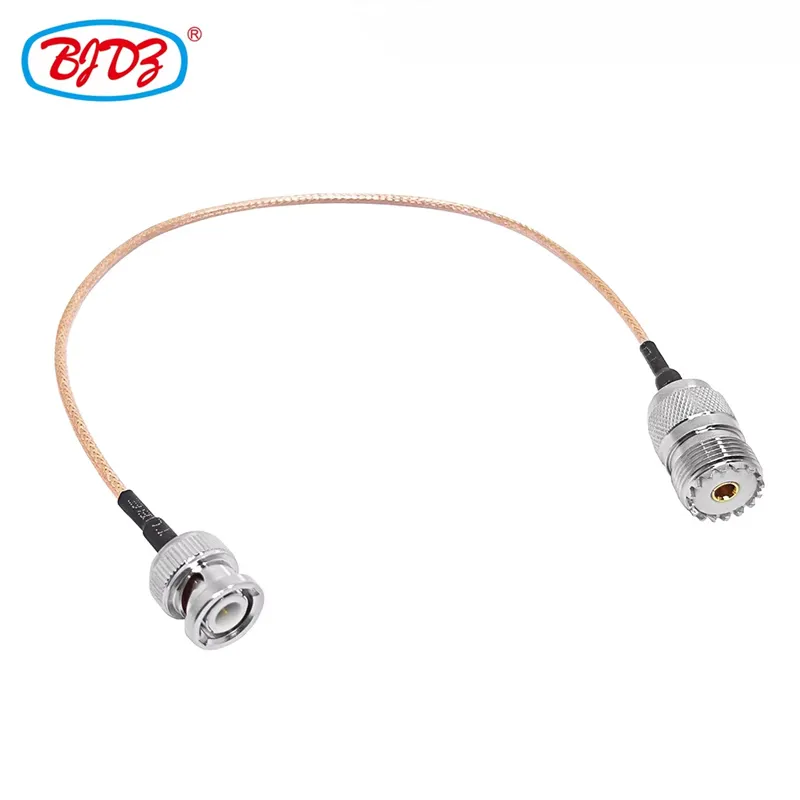

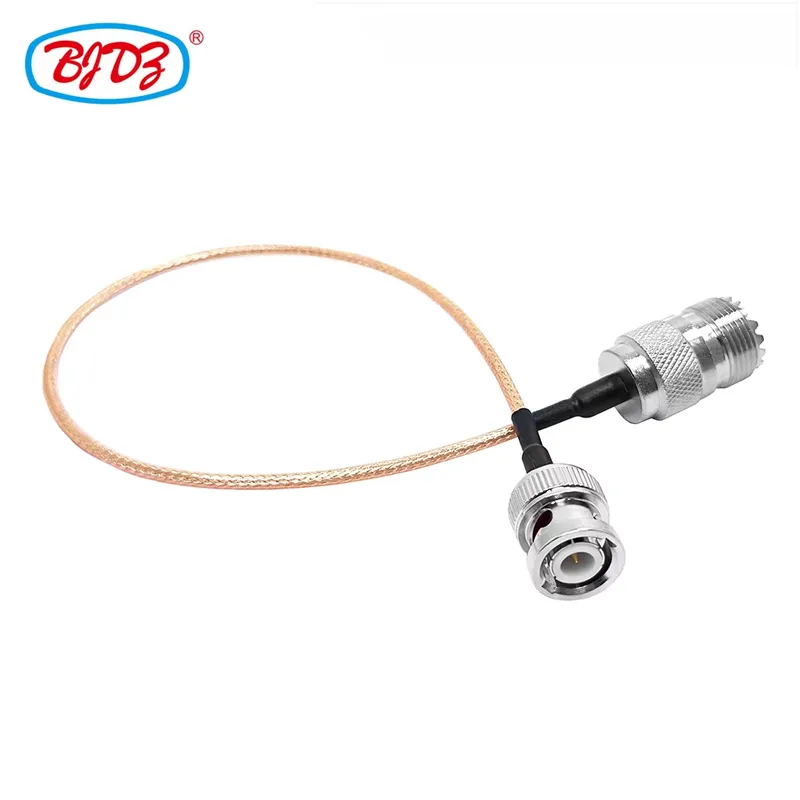

This premium UHF Female to BNC Male converter cable is engineered for seamless signal transition in demanding RF environments. Utilizing RG316 coaxial cable and high-precision connectors, this assembly ensures minimal signal loss and maximum reliability. Designed for quick installation and long-term durability, it’s the ideal choice for bridging UHF devices to BNC-compatible equipment in telecommunications, test & measurement, or industrial applications. ROHS certification ensures eco-friendly manufacturing, while the 50cm length provides flexibility in tight spaces or short-run installations.
Feature | Specification |
Product Type | RF Coaxial Adapter Cable |
Connector A | UHF Female Jack (Receptacle) |
Connector B | BNC Male Plug (Bayonet Lock) |
Cable Type | RG316 (50 Ohm, Ultra-Low Loss) |
Impedance | 50 Ohm |
Frequency Range | DC to 6 GHz (Typical) |
Insertion Loss | ≤ 0.6 dB/m @ 2.4 GHz |
VSWR | ≤ 1.2:1 (Up to 3 GHz) |
Center Conductor | Solid Copper (RG316) |
Dielectric | Polytetrafluoroethylene (PTFE) |
Shielding | Double Shield (Foil + Braided Copper) |
Jacket Material | Polyvinyl Chloride (PVC) |
Cable Diameter | 1.63 mm (0.064 inches) |
Operating Temperature | -55°C to +105°C |
ROHS Compliance | Yes |
Standard Length | 50 cm (Custom Lengths Available on Request) |
1. Ultra-Low Loss RG316 Coaxial Cable
RG316 features a low-loss PTFE dielectric and solid copper center conductor, reducing signal attenuation by up to 30% compared to standard cables. Ideal for high-frequency applications where every dB matters, such as Wi-Fi 6E, 5G, and satellite communications.
2. Robust Connectors for Secure Connections

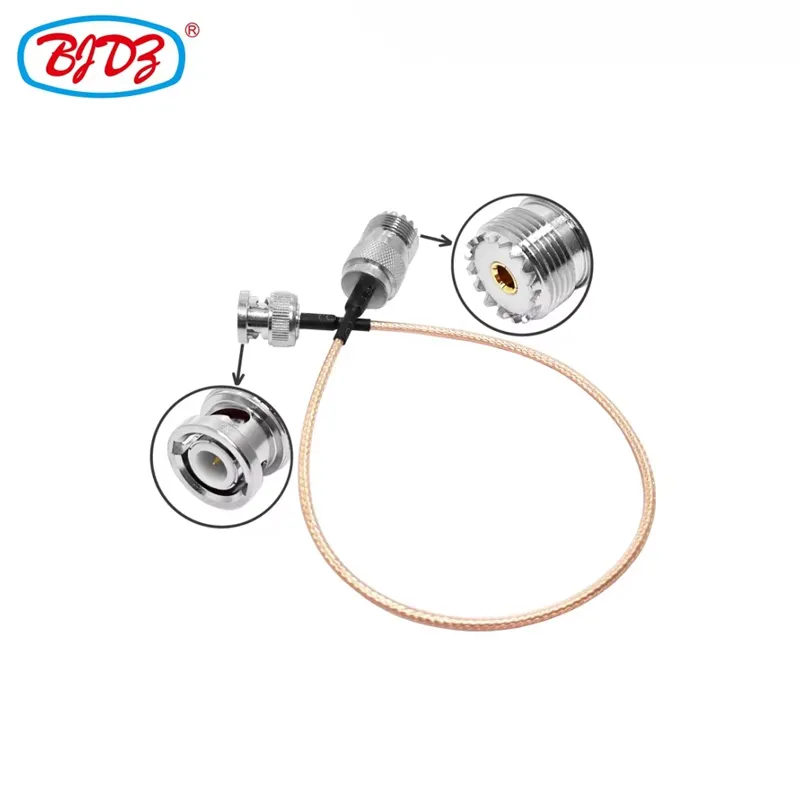

UHF Female Jack: Threaded coupling ensures weatherproofing and mechanical stability, suitable for mating with antennas or bulkheads.

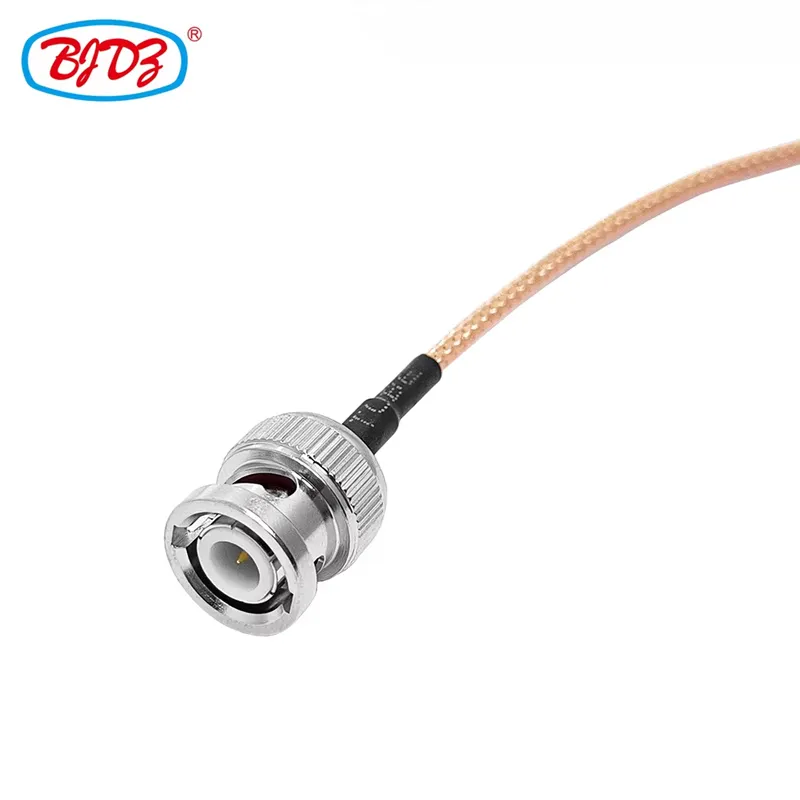

BNC Male Plug: Quick-lock bayonet mechanism for effortless connection/disconnection, ideal for test equipment or radios.
3. Military-Grade Shielding & Durability
The RG316 cable’s double-shield design (aluminum foil + copper braid) blocks >95% of external interference, ensuring signal integrity even in noisy environments. The jacket’s high-temperature resistance (-55°C to +105°C) enables use in extreme conditions.
4. ROHS Compliance & Environmental Safety
All materials meet stringent ROHS standards, free from harmful substances. Ideal for eco-conscious projects or industries with strict regulatory requirements.
5. Precision Engineering for Consistency
Each cable is assembled with CNC-machined connectors and laser-cut RG316 cable, minimizing variations. This ensures consistent performance across batches.
Telecommunications: Base station antennas, cellular boosters, and distributed antenna systems (DAS).
Test & Measurement: Connecting vector network analyzers (VNAs), spectrum analyzers, and signal generators.
Military & Aerospace: RF systems requiring rugged, low-loss cabling in harsh environments.
Industrial Automation: IoT gateways, telemetry antennas, and wireless sensor networks.
Broadcast & Media: RF signal transmission in TV towers and broadcast studios.
Amateur Radio (Ham): Linking UHF radios to external antennas for long-distance communications.
1. ISO-Certified Facility
Assembled in a controlled environment with ISO 9001-certified processes to meet global quality benchmarks.
2. 100% Electrical Testing
Insertion Loss Validation: Each cable is swept using a VNA to confirm attenuation within specs.
DC Continuity & Dielectric Strength: Ensures no shorts or leaks.
3. Mechanical Integrity Checks
Connectors undergo torque testing to guarantee long-term durability, even with repeated mating cycles.
Unit Packaging: Coiled in a static-free polybag with protective caps to prevent damage.
Labeling: Detailed specs printed on the bag (connector types, cable type, length, part number).
Shipping: Stock units ship within 48 hours; expedited options available. Bulk orders are palletized for safe transit.
Note: Custom lengths (1m, 3m, 10m, etc.) and termination options are available on request.
Q1: Can this cable be used outdoors?
A: While the RG316 jacket is weather-resistant, we recommend sealing the connectors with silicone or RF-grade tape for prolonged outdoor exposure to moisture.
Q2: Is RG316 better than RG58/RG59?
A: Yes. RG316 has lower attenuation at high frequencies (due to PTFE dielectric) and thinner diameter, making it ideal for high-frequency, space-constrained installations.
Q3: Are custom lengths available?
A: Yes! Contact us for quotes on lengths exceeding 50cm. MOQs apply for custom production.
