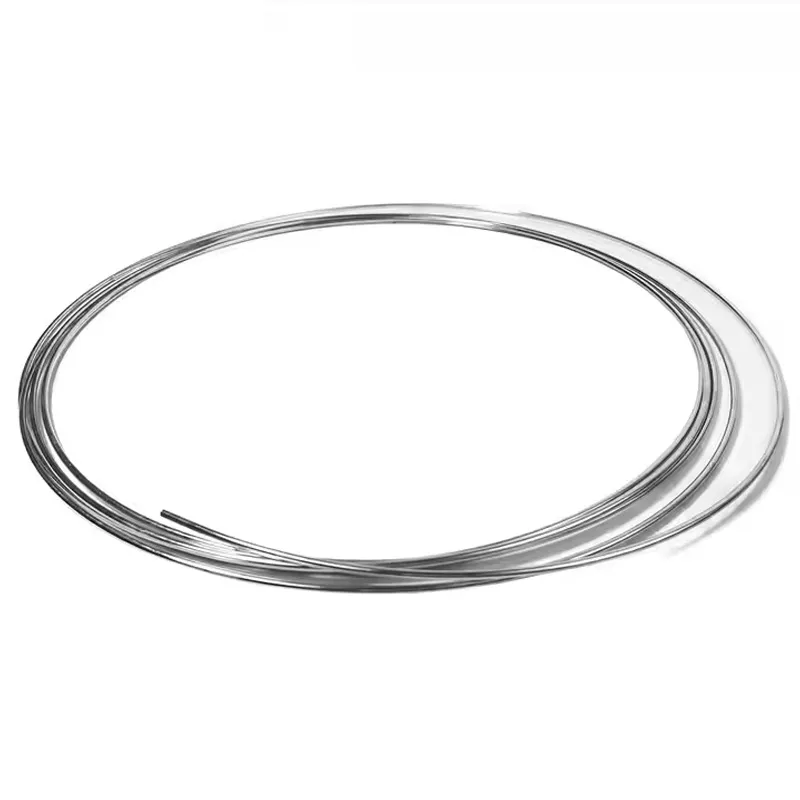

This is a 047 Semi-rigid coax cable that is formable,50 Ohm and has a PTFE dielectric.has a shield count of 1 and the maximum frequency for this cable is 20 GHz,attenuation at 1 GHz of 36 dB and a maximum power of 32 watts at 1 GHz.047 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Silvered Copper | 0.56 |
| Dielectric | PTFE | 1.68 |
| Outer Conductor | Ternary Alloy Plated Seamless Annealed Bare Copper Tube | 2.18 |
| Performance parameters | ||
| Cable Impedance | 50Ω | |
| Velocity | 76% | |
| Shielding Effectiveness | >165 dB | |
| Voltage Withstanding | 500V/DC | |
| Operating Frequency | DC-40 GHz | |
| Working temperature range | -55～+250℃ | |
| Bending radius | 7mm | |
| ROHS/CE/FCC | YES | |
| Attenuation | 300MHz | 0.32dB/100m |
| 1000MHz | 0.58dB/100m | |
| 3000MHz | 1.02dB/100m | |
Zhenjiang Binjiang Electronic Co., Ltd.-RF technology expert,core business full range of RF products: adapter/connector/antenna/coaxial cable, customized services: OEM/ODM support,including fast sampling, testing optimization Top 500 enterprise suppliers with technological advantages, certified internationally, 24-hour technical response, focusing on 5G/satellite communication fields, global services, product coverage in over 30 countries, and aerospace grade quality assurance Corporate vision: To drive the development of wireless communication technology through innovation.
