RF Coaxial Cable Assembly SMB Type Female Jack Bulkhead Waterproof to UFL for 1.37 Extension Pigtail Jumper 21cm Length

Engineered for mission-critical connections in confined spaces, this waterproof RF assembly bridges industrial-grade SMB interfaces with micro UFL connectors. Featuring military-spec IP67 bulkhead sealing and gold-plated contacts, it ensures <0.3dB signal loss across -55°C to +125°C environments. Ideal for 5G modules, drone telemetry, and medical IoT devices.

Specification of RF Coaxial Cable Assembly SMB Type Female Jack Bulkhead Waterproof to UFL for 1.37 Extension Pigtail Jumper 21cm Length

Key attributes

Conductor Material	Copper
Insulation Material	PTFE
Jacket	PVC
Number of Conductors	1
Model Number	SMB Female to UFL for 1.37 Pigtail Jumper
Cable Type	1.37 Cable
Brand Name	BJDZ
Place of Origin	Jiangsu, China
Application	RF
Plating	Nickel
Material	Copper
Insulator	PTFE/Plastic
Certificate	CE/FCC/ROHS/ISO9001:2015
Length	21CM
Frequency Range (MHz)	DC-12.4GHz
Max Voltage	335V max
Temperature range	-55~+155°C (PE Cable -40~+85°C)
Input Impendence (ohm)	50
V.S.W.R	1.15+0.02f
Vibration	100m/s2 (10~500Hz)
Withstand Voltage	2500V r.m.s at sea level
Working Voltage	1000Vr.m.s at sea level
Insertion Loss	≤ 0.24dB/6GHz
Insulation resistance	≥5000mΩ
Max Input Power (w)	50
Contact resistance	Center Contact ≤3mΩ
Center conductor retention force	450N
Durability	≥ 500(cycles)
Contact resistance	CenterContact ≤1mΩ Outer Contact ≤1mΩ
Voltage Standing Wave Ratio	Straight ≤ 1.15/6GHz Right angle ≤ 1.25/6GHz

Lead time

Quantity (pieces)	Lead time (days)
1 - 1000	10
1001 - 5000	15
5001 - 10000	25
> 10000	To be negotiated

Price

20 - 499 pieces	US$1.05
500 - 4,999 pieces	US$0.99
5,000 - 9,999 pieces	US$0.95
>= 10,000 pieces	US$0.92

Packaging and delivery

Selling Units	Single item
Single package size	10X10X3 cm
Single gross weight	0.02kg

Core Advantages

Extreme Environment Ready
IP67-rated stainless steel bulkhead resists moisture/dust ingress (IEC 60529 certified)
Micro-Connection Expertise
UFL connector (I-PEX compatible) for PCB antenna interfaces ≤2.4mm height
Signal Integrity Optimized
50Ω impedance ±2% | Silver-coated copper conductor (7x0.08mm strands)
Space-Adaptive Design
1.37mm coaxial cable bends at 8mm radius | 300+ flex cycles endurance
Instant Deployment
Pre-terminated with strain relief | RoHS/REACH compliant

Technical Specifications

Parameter	Specification

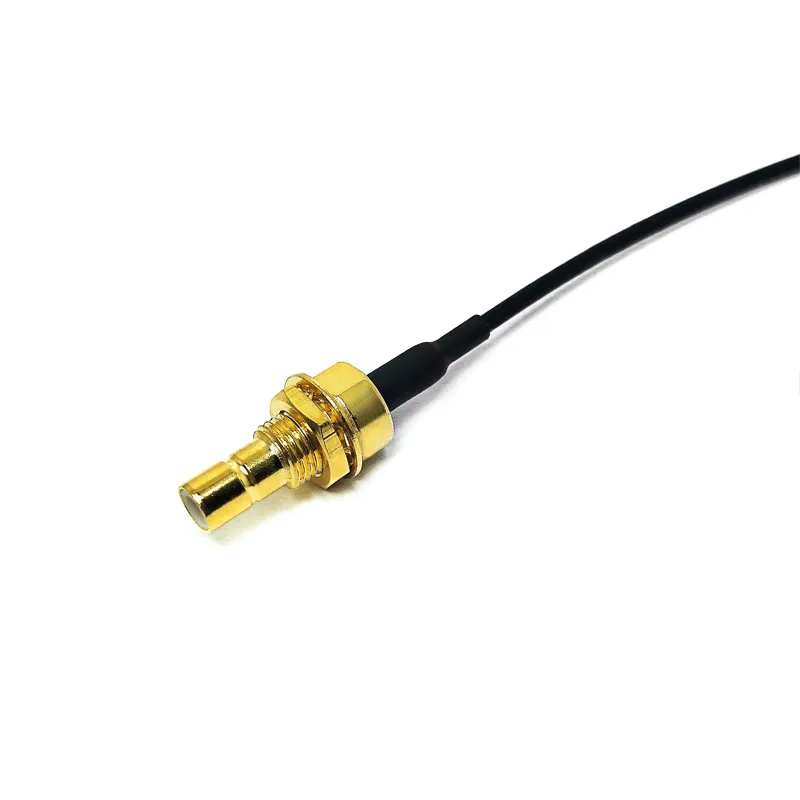

Connector A	SMB Female Bulkhead (Waterproof)
Connector B	UFL Male Plug
Cable Type	1.37mm Coaxial
Impedance	50Ω ±2%
Frequency Range	DC - 6 GHz
Voltage Rating	500V RMS
Operating Temp	-55°C to +125°C
VSWR	≤1.25 @ 3GHz
Shielding	Dual-layer braided copper

Industry Applications

Telecom: 5G small cells, mmWave test equipment
Robotics: Drone control links, sensor arrays
Medical: Wearable monitors, portable ultrasound
Automotive: V2X antennas, telematics modules
Industrial: PLC communications, IIoT gateways

Quality Assurance

Rigorous Testing:
48hr salt spray (ASTM B117)
500+ mating cycles (MIL-STD-1344)
Phase stability ≤0.1°@3GHz
Traceability:
Batch-controlled manufacturing
Customization:
Available lengths: 10cm-200cm (contact for OEM)
