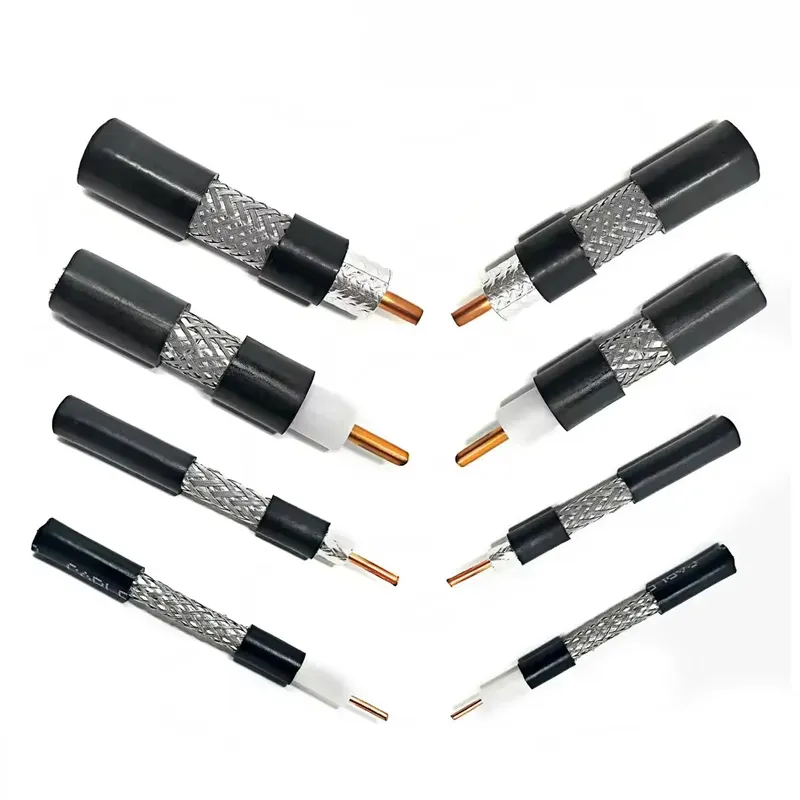

Our product models include: 3D-FB embossed coaxial cable, 5D-FB embossed coaxial cable, 7D-FB embossed coaxial cable, 8D-FB embossed coaxial cable, 10D-FB embossed coaxial cable, 12D-FB embossed coaxial cable, 1/4 "RF embossed coaxial cable, 1/4" ultra flexible RF embossed coaxial cable, 3/8 "RF embossed cable, 3/8" ultra flexible RF embossed cable, 1/2 "RF embossed cable, 1/2" ultra flexible RF embossed cable, 5/8 "RF embossed cable, 7/8" RF embossed cable, 1-1/4 "RF embossed cable, 1-1/4" RF embossed cable. 1-5/8 "RF embossed cables can meet various customer needs.
| Structure parameters | ||
| Item | Material | Diamenter (mm) |
| Inner Conductor | Copper clad steel | 2.60 |
| Dielectric | PE | 7.3 |
| Outer Conductor | Tin plated copper wire weaving | 8 |
| Jacket | PVC | 9.8 |
| Performance parameters | ||
| Capacitor | 82pF/m | |
| Impedance | 50ohm | |
| Transmission rate | 81% | |
| Internal conductor DC resistance | 5.4Ω/km | |
| Outer conductor DC resistance | 9.3Ω/km | |
| Working temperature range | -25～+70℃ | |
| Bending radius | 49mm | |
| ROHS/CE/FCC | YES | |
| Frequency | 100MHz | 4.3dB/m |
| 150MHz | 5.3dB/m | |
| 280MHz | 7.3dB/m | |
We have strict requirements for product materials, performance, and design. We use advanced computer simulation algorithms and structural optimization to improve RF solutions, and have accumulated years of structural solutions and unique manufacturing processes to further optimize RF indicators. We often conduct pre design manufacturing and cost analysis, and customize corresponding products according to different customer needs, demanding the strictest standards for our own product quality.
Assembly line: We have a professional assembly OEM production base that can provide you with high-quality RF and microwave component processing services.
